Engine coolant  temperature sender, also called ECU Temp Sensor.
Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A

This item can cause emissions problems if faulty.
Check your old one using this guide HERE.

THIS IMAGE shows location of this item

Mitsubishi Part Numbers
1308A012 MD177572 MD182467

Rear Outer CV Boot Kit - Mitsubishi Lancer GSR 1.8 CM5A
Common MOT Failure - If not fixed the bill for a new CV joint is very expensive.

CV Boot, Clips and Grease.

Mitsubishi Part Number
MB936192

Rear Tracking/Camber Bolt - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A
These adjust both tracking and camber on the Rear of your Lancer
See HERE for locations used on the Lancer CM5A
Price is per bolt

Mitsubishi Part Numbers
Camber Bolt MB809335 or MR333373
Offset Washer MB809338 or MR171026 or MR333376
Spring Washer MS450044
Nut MF430123 now MU430003

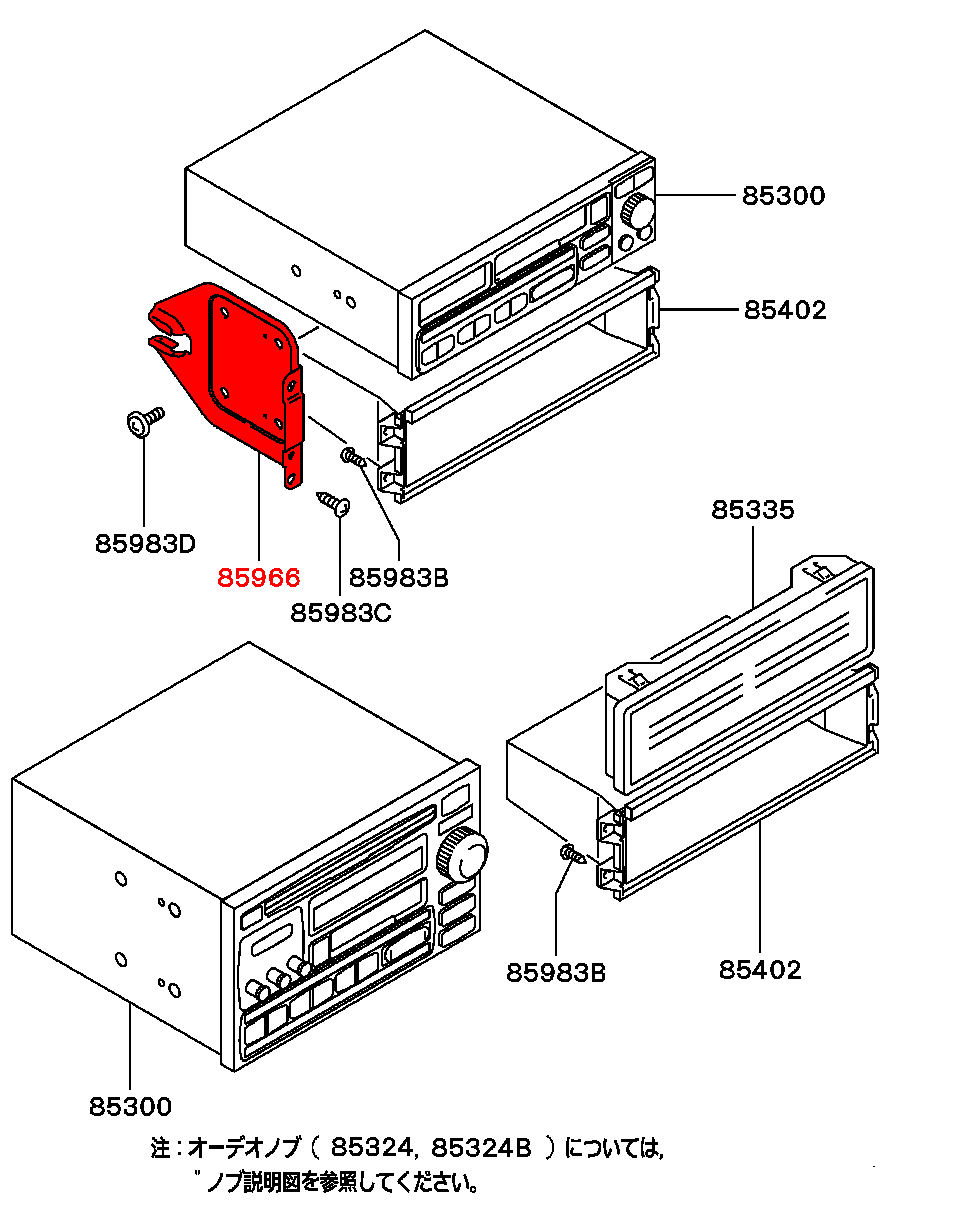

Pair of Radio Brackets - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A
If you have a big hole in the dash then you need these to
fit the new stereo.

Fits to the side of the radio as shown HERE

Mitsubishi Part Numbers
MB874343 + MB874344

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Steering Rack Boot - Steering Rack Gaitor - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A

Sold as Pair - If one is Dead the other is not far behind

Comes with Stainless Ear Lock Clips - Just like Original Mitsubishi ones.

Exploded Diagram of Steering Rack HERE

Mitsubishi Part Number
MR297971 MB350581 MB501711

Complete Front Inner CV Boot Kit for Mitsubishi Lancer GSR 1.8 4WD Turbo - CM5A
Common MOT Failure - If not fixed the bill for a new CV joint is very expensive.

CV Boot, Clips and Grease.

Mitsubishi Part Number
MB526989 MR196877
MB896296 MB937307

Rear Trailing Arm Bush - Mitsubishi Lancer 1.8 Turbo 4WD GSR CM5A
SOLD as a Single Bush - Order 2 to do Either Side of Vehicle

Location shown HERE

Mitsubishi Part Number
MR102063 MB809262

Front bump Stop and Dust Cover Set - Mitsubishi Lancer GSR/RS 1.8 4WD Turbo CM5A

Choose from Aftermarket or OEM Mitsubishi Items

Exploded Diagram HERE

Kit Contains :- 2 x Bump Stops and 2 x Dust Covers

Mitsubishi Part Number
MB518957 or MR333831
MB303070



Auxilliary Belt which drives the Alternator PS & AC - Lancer GSR 4WD Turbo - CM5A - 4G93T

When you purchase a premium product like the Gates Micro-V® Belt, you know you’re making an investment in quality.
By fitting a Gates Belt, you’re giving yourself peace of mind.

To Put it Simply - The best belt money can buy.

Exploded Diagram HERE

Mitsubishi Part Number
MD325949 MD368860

Front Brake Caliper Rebuild Kit - Mitsubishi Lancer GSR 1.8 4WD CM5A
Single Pot Caliper

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB699175 or 4605B973

Upper Cambelt Timing Belt Idler Bearing Pulley - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A

Koyo, NTN or NSK OEM suppliers

Exploded Diagram Showing Location See HERE

Mitsubishi Part Number
MD156604


Propshaft Universal Joint - Mitsubishi Lancer 1.8 Turbo GSR CM5A
Fits at both locations on the propshaft
25.00mm/63.80mm - Price is for ONE

See HERE for locations

Mitsubishi Part Numbers
MR196837 MR350138
MB000393 MB000391
MR196899 MB000345
MA126433 MB000390
MB000827 MD000392
MST00024 MT372505

Front Droplinks - Suspension Links - Pair - Mitsubishi Lancer 1.8 GSR CM5A

Front suspension links also called a Droplinks, these are what make the horrible rattling sound from the front when they are badly worn.
These join the Shock absorber to the anti roll bar.
See HERE

Mitsubishi Part Number
MR131680 MR272116 4056A031

Rear Droplinks - Suspension Links - PAIR - Mitsubishi Lancer 1.8 4WD Turbo GSR CM5A
PAIR
Rear stabiliser links also called droplinks or suspension links.
These attach the rear anti roll bar to the rear lower arm.

See HERE

Current Stock is Silver in Colour

Mitsubishi Part Number
MB809354 4056A021

Rear Bump Stop and Dust Cover Set - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A

Choose from Aftermarket or OEM Mitsubishi Items

Exploded Diagram HERE

Kit Contains :- 2 x Bump Stops and 2 x Dust Covers

Mitsubishi Part Number
Bump Stop MB809285
Dust Cover MB809284


Thermostat - Mitsubishi Lancer GSR 1.8 4WD Turbo 4G93T CM5A
Supplied as an Aftermarket Item as Mitsubishi have Discontinued
76.5°C Standard Temp

Exploded Diagram HERE

Mitsubishi Part Number
MD170031 MD345617
MD317015 MD164541

Front Caliper Piston - Mitsubishi Lancer GSR 1.8 Turbo 4WD 4G93T CM5A

For Exploded Diagram of Caliper Click HERE

Mitsubishi Part Number
MB699169

Front Caliper Bolts & Bush Kit - Lancer GSR 1.8 4WD Turbo CM5A

Front Brake Caliper Upper & Lower Bolts with end bush and 2 concertinaed grease slider boots.

Mitsubishi Part Numbers
MB699166 MB699167 MB699264
+ Boots + Grease


Quality replacement Front Brake Pads for
Front Brake Pads - Mitsubishi Lancer GSR 1.8 4WD Turbo CM5A

Full set of 4 pads to do both front calipers.

Mitsubishi Part Number
MR389537 MB699266
MB699702 MB858375



Rear strut top mount repair kit - Mitsubishi Lancer GSR 1.8 Turbo 4WD CM5A
Contains Sleeve, washer, upper rubber bush & lower rubber bush All x 2
Enough to repair BOTH rear strut top mounts - See HERE
Choose from Aftermarket Parts or Genuine Mitsubishi


Mitsubishi Part Numbers
Sleeve MB871748
Washer MB242360
Upper Bush MR223332 MB242358 MR130231
Lower Bush MR223333 MB338618 MR130230

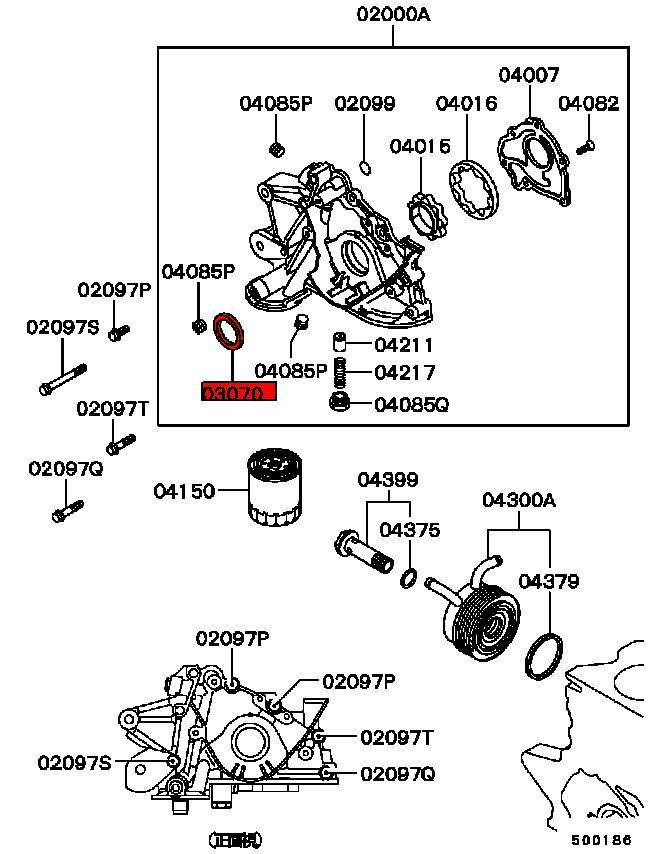

Crankshaft oil seal - Front/Cambelt Side for Mitsubishi Lancer GSR 1.8 Turbo 4WD CM5A

If your cambelt looks a little oily or there is oil leaking out of the bottom of the cover then this could be the culprit.

Location Diagram HERE

Mitsubishi Part Number
MD168055
AH8740F

Rear Inner Boot Kit - Mitsubishi Lancer GSR 1.8 CM5A
Common MOT Failure - If not fixed the bill for a new CV joint is very expensive.
Mitsubishi want over £ 50.00 for one of these !!!!!!
Rear inner CV joints Half Moon Type

CV Boot, Clips and Grease.

Mitsubishi Part Number
MB936188
