Front Wheel Bearing Kit - Mitsubishi Lancer Evolution 1 CD9A

See HERE for Exploded Diagram

INSTRUCTIONS HERE

Mitsubishi Part Number
MB303875 Outer Oil Seal
MB303865 Bearing
MB303868 Snap Ring
MB573309 Inner Oil Seal
MF472085 Split Pin

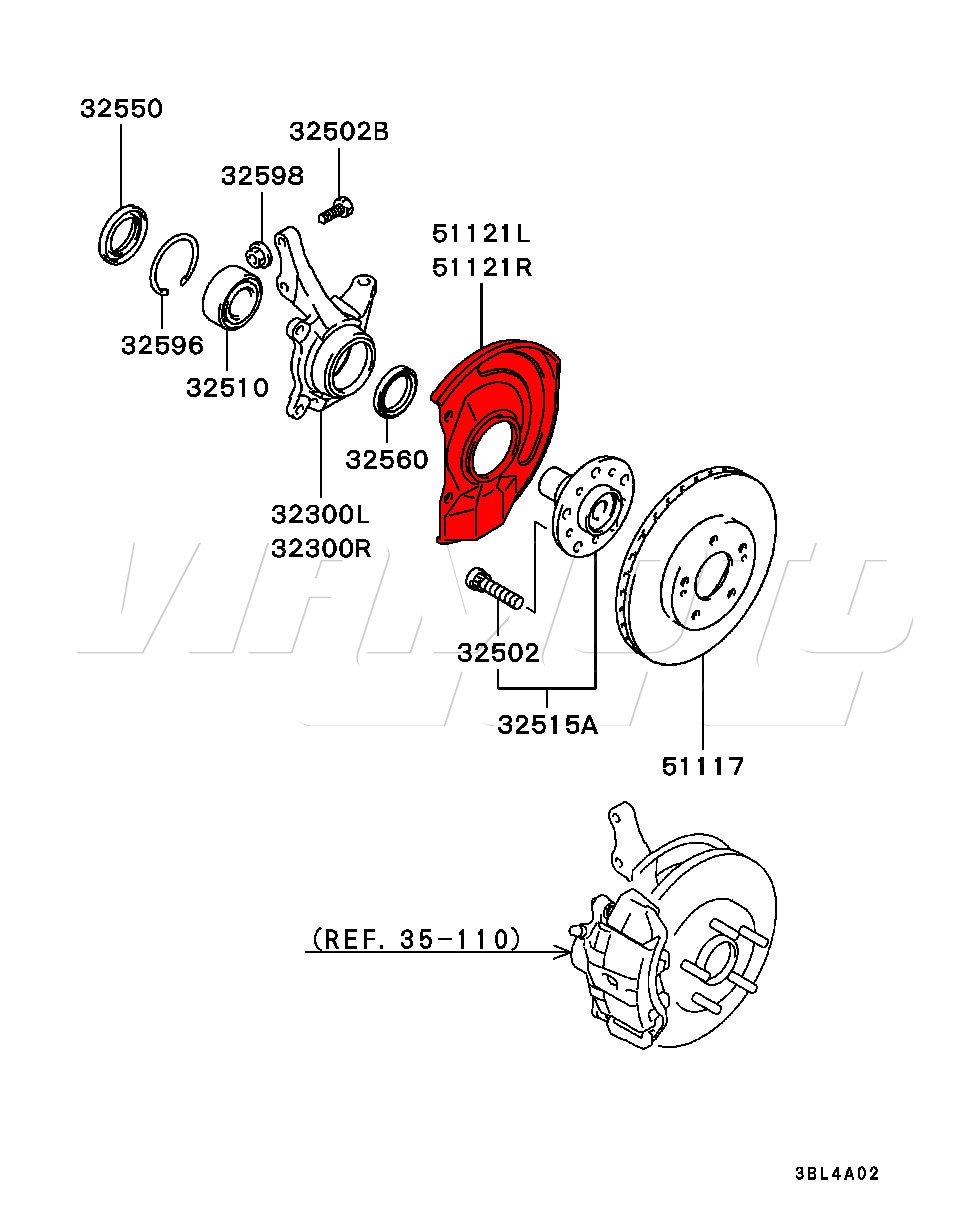

Front Brake Backing Plate/Dust Cover - Mitsibishi Lancer EVO 1 2 3

Also called Brake Dust Shield

Sold as Singles so Choose One LH and One RH for a Vehicle Front Set

These are Aftermarket parts as Mitsubishi No Longer Supply
the Genuine Items.

These will be supplied in either Silver or Black whichever we can get hold of
(May be one of each colour - Nothing we can do about it)

Exploded Diagram HERE

Mitsubishi Part Number
MB928320 MB928321

Front Brake Caliper Rebuild Kit - Mitsubishi Lancer Evolution 1 CD9A

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB857840 4605B977

Single Ignition Coil Pack - Mitsubishi Lancer Evolution 1 CD9A
This aftermarket item can be used to change one or both of the coils attached to the bracket rather than having to buy the whole unit at a ridiculous dealer price. Not that you can buy one any more as it's Discontinued.

Exploded Diagram HERE

Mitsubishi Part Number
MD192126 MD152648
MD184230 MD334558



Rear wheel bearing kit - Mitsubishi Lancer Evolution 1 CD9A

Inner Diameter 40mm Outer Diameter 70mm Width 43mm

Exploded Diagram HERE

Mitsubishi Part Number
MB663547 MB663832


Front Outer CV Joint Kit - NON ABS - Mitsubishi Lancer Evolution 1 CD9A

Examine to make sure it's the same before fitting to shaft.
Remember to remove the C snap ring from end of shaft before test fitting item.

Picture is for Illustration ONLY

25 Outer Splines
24 Inner Splines
Non ABS

Mitsubishi Part Numbers
MB620958 MR165846 MB837515
MB936359 MB837516 MR165844
MB837514 MR165842 MB837517
MB936361


Rear Bottom Arm Outer Bush - Mitsubishi Lancer Evolution 1 CD9A
This bush takes a lot of punishment and can cause handling issues when worn
It is a Spherical bearing See one cut open HERE
You should be able to move it, it should NOT be solid.

Price is for ONE (You need 2 per vehicle)

Exploded Diagram HERE

Mitsubishi Part Number
MR197915 4113A062

Crossmember Bush Kit - Cradle Bush Kit for Mitsubishi Lancer EVO 1 2 3 CD9A CE9A
These 8 rubber bushes when worn can cause a large clunk on acceleration and deceleration.

Exploded Diagram HERE

Mitsubishi Part Numbers in Kit
MB844445 x 4
MB844446 x 4
VM0000131 - RN-VM-131

Hand Brake Cable - Rear Parking Brake Cable - Mitsubishi EVO 1 2 3 CD9A CE9A

Mitsubishi have Discontinued These Cables so These are Supplied as Blueprint
Inner cable prone to corrosion causing seizing up and snapping.

Exploded Diagram HERE

Mitsubishi Part Numbers
MB806052 Lefthand
MB806053 Righthand





Rear Brake Discs - Pair - Mitsubishi Lancer EVO 1 CD9A

Quality pair of standard replacement rear brake discs
from UK supplier made to a very high tolerance.

Mitsubishi Part Number
MB699288 MB699289 MR249356 MR913846

Manual Gearbox Cable Bush Kit - Mitsubishi Lancer EVO 123 CD9A CE9A

This kit replaces Both Bushes in the Gearbox End of the Manual Gearbox Cable
You cannot buy these from Mitsubishi - They would sell you the whole cable.

Kit Consists of
2 Bushes
2 Bush Retaining C Clips
2 Rod Clips
1 Emery Paper
1 Silicon Grease

Location Fitted shown HERE
Instructions HERE
Our Part Number RN-VM-1076 VM0001076
Replaces the Bushes in Mitsubishi Part Numbers
MR195570 MR263512
