Home » Mitsubishi FTO Parts » FTO - Other Brake Parts


The following discounts apply to all these products.
Free Shipping to UK Mainland Excl Highlands & Islands (Orders over £ 200.00)

« Previous123 »

Front Brake Hose - FTO
This product does not qualify for Free Shipping

Front brake hose.

Common MOT failure.

262mm+220mm = 482mm

To see exploded diagrams

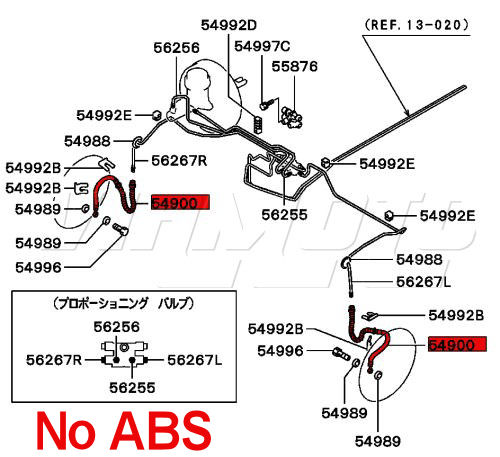

Click HERE without ABS

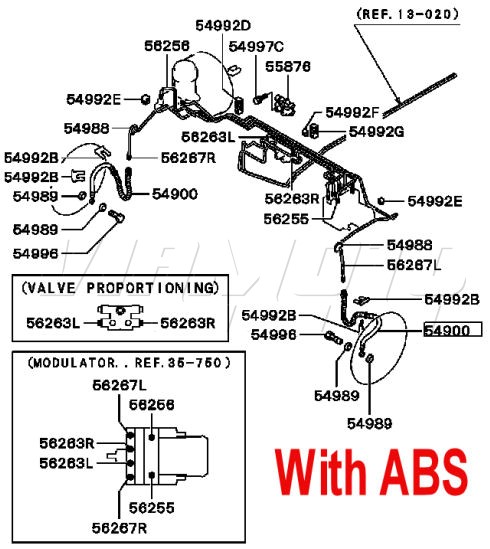

Click HERE with ABS

Mitsubishi Part Number
MR129883

Price: £20.20
Front Brake Caliper Rebuild Kit - FTO GR/GS - Single Pot Caliper

Front Brake Caliper Rebuild Kit - FTO GR/GS
Single Pot Caliper - Non Mivec Models

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB699175 or 4605B973

Price: £22.80


Rear ABS Ring - FTO February 1997 Onwards

Rear ABS Ring - FTO's Built February 1997 Onwards

Mitsubishi Part Number
MR307441

Price: £24.00
Front Caliper Piston - FTO GR/GS Single Piston Caliper

Front Caliper Piston - FTO GR/GS
for Single Pot Front Caliper - Non Mivec Models

For Exploded Diagram of Caliper Click HERE

Mitsubishi Part Number
MB699169

Price: £25.20


Front Caliper Bolts & Bush Kit - FTO Non Mivec

Front Caliper Bolt & Bush Kit - FTO Non Mivec with Single Piston Front Caliper

Front Brake Caliper Upper & Lower Bolts with end bush and 2 concertinaed grease slider boots.

Mitsubishi Part Numbers
MB699166 MB699167 MB699264
+ Boots + Grease


Price: £25.95
Rear Caliper Piston - Mitsubishi FTO

Rear Caliper Piston - FTO
Quality aftermarket copy as Mitsubishi want too much for
an original one.

For Exploded Diagram of Caliper Click HERE
1 x 30.1mm Piston Required per Caliper

Mitsubishi Part Number
MB699872

Price: £27.60


Front Brake Caliper Repair Kit - FTO GPX/GPvR - Twin Pot Caliper

Front Brake Caliper Rebuild Kit - Mitsubishi FTO GPX/GPvR -
Twin Pot Caliper - Mivec Models

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB857840 4605B977

Price: £33.60
Rear Brakes - Dust Cover - ALL FTO's to 1997 & Non ABS FTO's after 1997
This product does not qualify for Free Shipping

Rear Brakes - Dust Cover
ALL FTO's up to End of January 1997 & Non ABS FTO's after February 1997

Same part number is used on both LH & RH side of the vehicle

These are Special Order from Japan and usually take about 4-6 weeks to obtain

Mitsubishi Part Numbers
MB699316 was MB699312

Price: £36.00


Rear Brake Caliper Mounting Bracket - FTO
1 of 4
This product does not qualify for Free Shipping

Rear Caliper Mounting Bracket - FTO

Discontinued by Mitsubishi so these are now supplied as Reconditioned Parts.
They are Machined Clean, Rust Cured and Sprayed in Silver then the holes
are all re-threaded to ensure perfect fitment.

These are prone to having the caliper slider bolts snap off in them
as they are a small diameter bolt.

Mitsubishi Part Number
MB928261
DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Price: £36.00
Rear Brake Caliper Rebuild Kit - Mitsubishi FTO

Rear Brake Caliper Rebuild Kit - FTO

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB857874

Price: £38.40


Front Caliper Rebuild Kit - FTO Non Mivec
Front Caliper Rebuild Kit - FTO Non Mivec
This kit can be used on all Non Mivec Calipers that have the Single pot front caliper.
This comprehensive kit contains all the seals/rubbers and bolts that the caliper needs to operate efficiently.

Exploded Diagram showing all Components HERE

Mitsubishi Part Numbers
MB699167 MB699166 MV026287 MB928290 MB699264
Price: £47.95
Rear ABS Ring - FTO Up to End of Jan 1997
Rear ABS Ring - FTO's Built Up to End of Jan 1997

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Mitsubishi Part Number
MR128735
Price: £54.06
Out of Stock


Brake Disc Dial Gauge
1 of 2
Brake Disc Run-Out Kit - Dial Gauge Kit

Check for ball joint wear and brake disc run-out quickly and easily.
Locking pliers secure to any convenient position enabling DTI gauge to be placed against brake disc.
These should be used every time you fit or refit brake discs.
Hardly any mechanic can be bothered but it is the correct way to ensure that you get no problems with shaking after a month or 2 of driving and blaming the brake disc quality rather than the poor fitting procedure.

See here for how to use
http://www.youtube.com/watch?v=H_1ySs7liS4
or here shows what the consequences are
ie having to have the discs skimmed in a pro-cut lathe
http://www.youtube.com/watch?v=5N-BAQ8LUUg


Kit includes
Metric calibrated DTI gauge.
Mole Grips
Extended Lockable Arm
Price: £66.00
Front Caliper Mounting Bracket - Mitsubishi FTO GPX/GPvR
This product does not qualify for Free Shipping

Front Caliper Mounting Bracket - Mitsubishi FTO GPX/GPvR
Mivec FTO's - Twin Pot Front Caliper

Now Back in stock as an Aftermarket Copy

Exploded Diagram HERE

Mitsubishi Part Number
MB618218 NO LONGER SUPPLIED BY MITSUBISHI

Price: £72.00


Front Caliper Mounting Bracket - FTO GR/GS
This product does not qualify for Free Shipping

Front Caliper Mounting Bracket - FTO GR/GS
Non Mivec FTO's - Single Pot Front Caliper

Exploded Diagram HERE

Mitsubishi Part Number
MB699263

Price: £73.42
Handbrake Lever Mechanism - Mitsubishi FTO - ALL
This product does not qualify for Free Shipping

Handbrake Lever Mechanism - Mitsubishi FTO - ALL

Complete Mechanism - all parts in Red on Diagram

Mitsubishi Part Number
MR734208

SPECIAL ORDER FROM JAPAN

Price: £74.44


Brake Master Cylinder - Piston and Seal Kit 7/8" Diameter MB928456 - FTO
This product does not qualify for Free Shipping

Brake Master Cylinder - Piston and Seal Kit 7/8" Diameter - FTO

PLEASE PROVIDE VIN NUMBER AS THERE ARE SEVERAL DIFFERENT SIZES
OF MASTER CYLINDER ON THE VARIOUS FTO MODELS

Mitsubishi Part Number
MB928456

Price: £79.81
Brake Proportioning Valve - MR129300 - FTO - Various Models
This product does not qualify for Free Shipping

Brake Proportioning Valve - MR129300 - FTO - Various Models

Check BEFORE Ordering that this is the correct one as there are several different part numbers fitted to FTO's

Mitsubishi Part Number
MR129300

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Price: £80.99
Out of Stock


Brake Proportioning Valve - MR129301 - FTO - Various Models
This product does not qualify for Free Shipping

Brake Proportioning Valve - MR129301 - FTO - Various Models

Check BEFORE Ordering that this is the correct one as there are several different part numbers fitted to FTO's

Mitsubishi Part Number
MR129301

Price: £92.66
Brake Master Cylinder - Piston and Seal Kit 15/16" Diameter MB928457 - FTO
This product does not qualify for Free Shipping

Brake Master Cylinder - Piston and Seal Kit 15/16" Diameter - FTO

PLEASE PROVIDE VIN NUMBER AS THERE ARE SEVERAL DIFFERENT SIZES
OF MASTER CYLINDER ON THE VARIOUS FTO MODELS
ALSO THERE ARE 2 DIFFERENT 15/16" TYPES

Mitsubishi Part Number
MB928457

Price: £106.60


Brake Proportioning Valve - MB699641 - FTO - Various Models
This product does not qualify for Free Shipping

Brake Proportioning Valve - MB699641 - FTO - Various Models

Check BEFORE Ordering that this is the correct one as there are several different part numbers fitted to FTO's

Mitsubishi Part Number
MB699641


Price: £108.92
Brake Master Cylinder - Piston and Seal Kit 15/16" Diameter MB928458 - FTO
This product does not qualify for Free Shipping

Brake Master Cylinder - Piston and Seal Kit 15/16" Diameter - FTO

PLEASE PROVIDE VIN NUMBER AS THERE ARE SEVERAL DIFFERENT SIZES
OF MASTER CYLINDER ON THE VARIOUS FTO MODELS
ALSO THERE ARE 2 DIFFERENT 15/16" TYPES

Mitsubishi Part Number
MB928458

Price: £113.53


Front Brake Caliper - Mitsubishi FTO 1.8/2.0 Non Mivec

Front Brake Caliper - Mitsubishi FTO 1.8 4 Cyl & 2.0 V 6 Non Mivec Models

Completely rebuilt front brake caliper
These are stripped, shot blasted repainted and then rebuilt with new parts

Choose LH Front or RH Front
When comparing prices remember that our price INCLUDES a refundable £20.00 Surcharge which is refunded upon return of your old caliper

Mitsubishi Part Numbers
LH Front MB928408
RH Front MB928409
Casting Number 5405

Price: £120.00
Brake Master Cylinder - Piston and Seal Kit 1" Diameter MB928459 - FTO
This product does not qualify for Free Shipping

Brake Master Cylinder - Piston and Seal Kit 1" Diameter - FTO

PLEASE PROVIDE VIN NUMBER AS THERE ARE SEVERAL DIFFERENT SIZES
OF MASTER CYLINDER ON THE VARIOUS FTO MODELS

Mitsubishi Part Number
MB928459

Price: £120.37


Front Brake Caliper - Mitsubishi FTO 2.0 V6 Mivec

Front Brake Caliper - Mitsubishi FTO 2.0 V6 Mivec Models

Completely rebuilt front brake caliper
These are stripped, shot blasted repainted and then rebuilt with new parts

Choose LH Front or RH Front
When comparing prices remember that our price INCLUDES a refundable £40.00 Surcharge which is refunded upon return of your old caliper

Mitsubishi Part Numbers
LH Front MB950176
RH Front MB950177
Casting Number 4304

Price: £129.95
Rear Brake Caliper - Mitsubishi FTO

Rear Brake Caliper - Mitsubishi FTO ALL Models

Completely rebuilt rear brake caliper
These are stripped, shot blasted repainted and then rebuilt with new parts

Choose LH Rear or RH Rear
When comparing prices remember that our price INCLUDES a refundable £40.00 Surcharge which is refunded upon return of your old caliper

Mitsubishi Part Numbers
LH Rear MR235326
RH Rear MR235327
Casting Number 3001

Price: £158.40


Righthand Front ABS Sensor - FTO's February 1997 Onwards
This product does not qualify for Free Shipping

Righthand Front ABS Sensor - FTO's Built February 1997 Onwards

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Mitsubishi Part Number
MR307037

Price: £170.05
Out of Stock
Lefthand Front ABS Sensor - FTO's February 1997 Onwards
Lefthand Front ABS Sensor - FTO's Built February 1997 Onwards
DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Mitsubishi Part Number
MR307036
Price: £183.19
Out of Stock


Lefthand Front ABS Sensor - FTO's Up to End of January 1997
This product does not qualify for Free Shipping

Lefthand Front ABS Sensor - FTO's Built up to End of January 1997

Mitsubishi Part Numbers
MR128785


Price: £185.22
Righthand Front ABS Sensor - FTO's Up to End of January 1997
This product does not qualify for Free Shipping

Righthand Front ABS Sensor - FTO's Built up to End of January 1997

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Mitsubishi Part Numbers
MR128786

Price: £188.17
Out of Stock

« Previous123 »
