Dust Cap for bleed nipple - Mitsubishi FTO

Same one used on all 4 calipers.

For Caliper Exploded Diagrams Click HERE

Mitsubishi Part Number
MV026287

Front or Rear Caliper Brake Nipple - Mitsubishi FTO
Same part used on all FTO calipers.

These are prone to corrosion, rounding off and snapping.

Caliper exploded diagrams HERE

Mitsubishi Part Number
MB928290

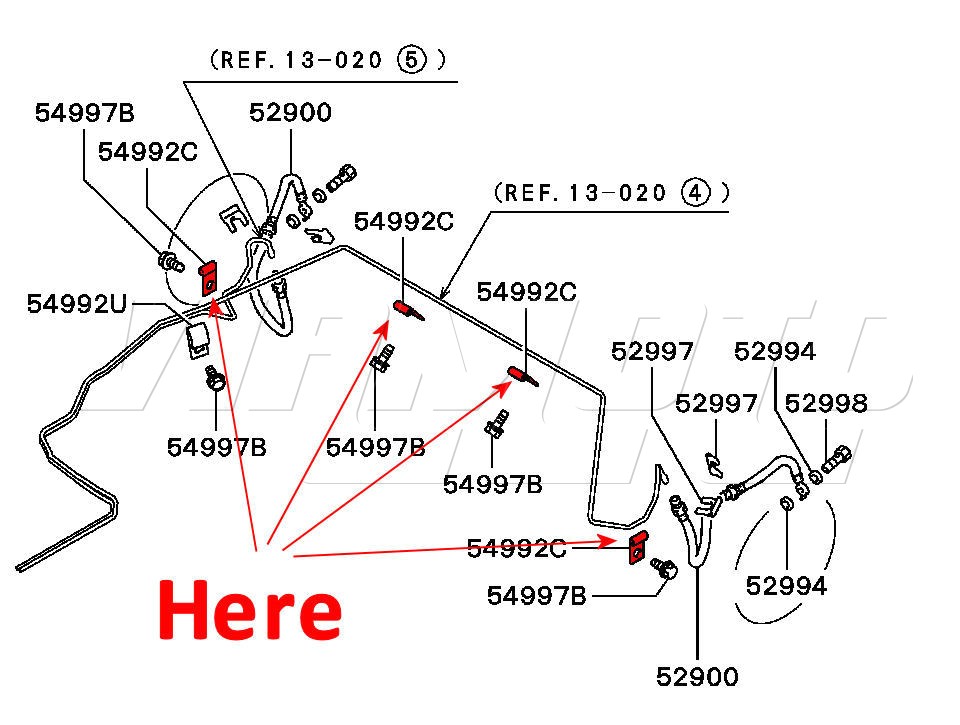

Brake Hose U Clip - Mitsubishi FTO

8 used on the vehicle See HERE for Locations

Mitsubishi Part Number
MA431825

Apec  - Brake Lubricant is ideal for your FTO Brakes
Grease is the word.

Specially formulated copper-free lubricant
Assists the smooth movement of braking components, and minimises noise
Effectively withstands water and high temperatures
Fully compatible with ABS brakes
Supplied in a handy 75ml tube

For use on Squeal Shims, Pad Ends where it touches caliper see
Apec Bulletin Sheet  HERE

NB: Make sure you keep it away from friction surfaces, rubber seals and boots.

Size 75ml Tube
Apec Part Number BG75

Square parking brake retaining clip - Mitsubishi FTO - All Models

This little clip holds the cable onto the rear brake caliper.
One clip used on each cable.

Mitsubishi Part Number
MB520216

Brake Pedal Return Spring - Mitsubishi FTO - ALL Models

Exploded Diagram HERE

Mitsubishi Part Number
MR103616

Upper Slider Bolt Grommet for Front Brake Caliper - FTO GR/GS

This is located on end of upper caliper bolt.

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB699264

Upper Slider Bolt Grommet for Front Twin Piston Brake Caliper - FTO GPX/GPvR
ie Mivec Models
This is located on end of upper caliper bolt.

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB618215

Brake and Clutch Rubber Pad - FTO - Manual Gearbox Models
Sold in singles - So you need to order two to do both.

Mitsubishi Part Number
MB193884

Front Brake Pad Shim Kit - Mitsubishi FTO GPX/GPvR
Twin Piston Caliper Mivec Models

These shims are fitted ONLY to the Outer pad in the caliper.
Exploded diagram HERE

Mitsubishi Part Number
MR389651

Front Brake Pad clip set - Mitsubishi FTO GPX/GPvR
Mivec Models - Twin Pot Front Caliper
Choose from Aftermarket Set or Genuine Mitsubishi Set
For Exploded Diagram Click HERE

Mitsubishi Part Number
MR389599

Rear Brake Pad Clip Set - FTO
Choose from Aftermarket or Genuine Mitsubishi Set

For Exploded Diagram Click HERE

Mitsubishi Part Number
MR389626

Upper Slider Bolt for Front Brake Caliper - FTO GR/GS

These are prone to corrosion and caliper sticking on this bolt

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB699167

Brake light Switch - Stop Light Switch - Mitsubishi FTO

If you've tried the brake light bulbs and brake lights still don't work
it's either a broken wire/bad earth or brake light switch.

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB435457

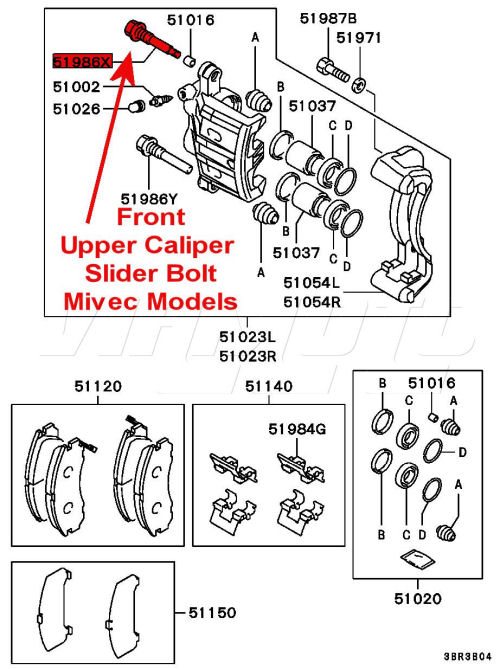

Upper Slider Bolt for Front Twin Piston Brake Caliper - Mitsubishi FTO GPX/GPvR
ie Mivec Models
These are prone to corrosion and caliper sticking on this bolt

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB618228

Lower Slider Bolt for Front Brake Caliper - FTO GR/GS

These are prone to corrosion and caliper sticking on this bolt

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB699166

Brake Fluid Reservoir Cap - Mitsubishi FTO

Exploded Diagram HERE

Mitsubishi Part Number
MB895999

Rear brake hose - Mitsubishi FTO - All Models

Common MOT failure.

217mm+210mm = 427mm

To see exploded diagram Click HERE

Mitsubishi Part Number
MR129802

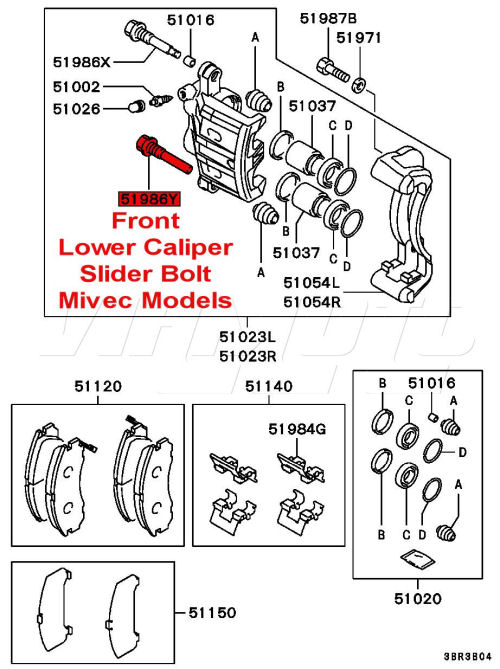

Lower Slider Bolt for Front Twin Piston Brake Caliper - Mitsubishi FTO GPX/GPvR
ie Mivec Models

These are prone to corrosion and caliper sticking on this bolt

For caliper exploded Diagram Click HERE

Mitsubishi Part Number
MB618227

Rear Caliper Lower Slide Bolt - Mitsubishi FTO - All Models
These have a bad habit of leaving the end 3 to 4 threads snapped off in the mounting bracket.

For Exploded Diagram of Rear Caliper Click HERE

Mitsubishi Part Number
MB534413

Brake Fluid Reservoir Seal/Diaphragm - Mitsubishi FTO

Exploded Diagram HERE

Mitsubishi Part Number
MB895813

Front Caliper Piston - FTO GPX/GPvR
for Twin Piston Caliper - Mivec Models

For Exploded Diagram of Caliper Click HERE
2 Pistons Required per Caliper

Mitsubishi Part Number
MB857837

Rear Caliper Upper Slide Bolt - Mitsubishi FTO - All Models
These have a bad habit of leaving the end 3 to 4 threads snapped off in the mounting bracket.

For Exploded Diagram of Rear Caliper Click HERE

Mitsubishi Part Number
MB238735

Front Caliper Piston - FTO GR/GS
for Single Pot Front Caliper - Non Mivec Models

For Exploded Diagram of Caliper Click HERE

Mitsubishi Part Number
MB699169

Front Caliper Bolt & Bush Kit - FTO Mivec For Twin Pot Caliper Models

Front Brake Caliper Upper & Lower Bolts with end bush and 2 concertinaed grease slider boots.

Mitsubishi Part Numbers
MB618227 MB618228 MB618215
+ Boots + Grease

Front Brake Pad Shim Kit - Mitsubishi FTO GR/GS
Single Piston Caliper Non Mivec Models

The small shims are fitted  to the piston side and the larger to the Outer pad in the caliper.
Exploded diagram HERE

Mitsubishi Part Number
MR389655

Front Brake Caliper Rebuild Kit - FTO GR/GS
Single Pot Caliper - Non Mivec Models

For Exploded Diagram Click HERE

Mitsubishi Part Number
MB699175
