Lambda Sensor - Oxygen Sensor - Mitsubishi Lancer Evolution 5 6 CP9A Fits into turbo elbow shown HERE Choose from Genuine Mitsubishi or Aftermarket Copy Mitsubishi Part Number MN153156 MD348475
Middle Cambelt Cover - Mitsubishi Lancer EVO 4 5 6 and 7 NOT EVO 8 or 9
Exploded Diagram HERE
Mitsubishi Part Number MD334397

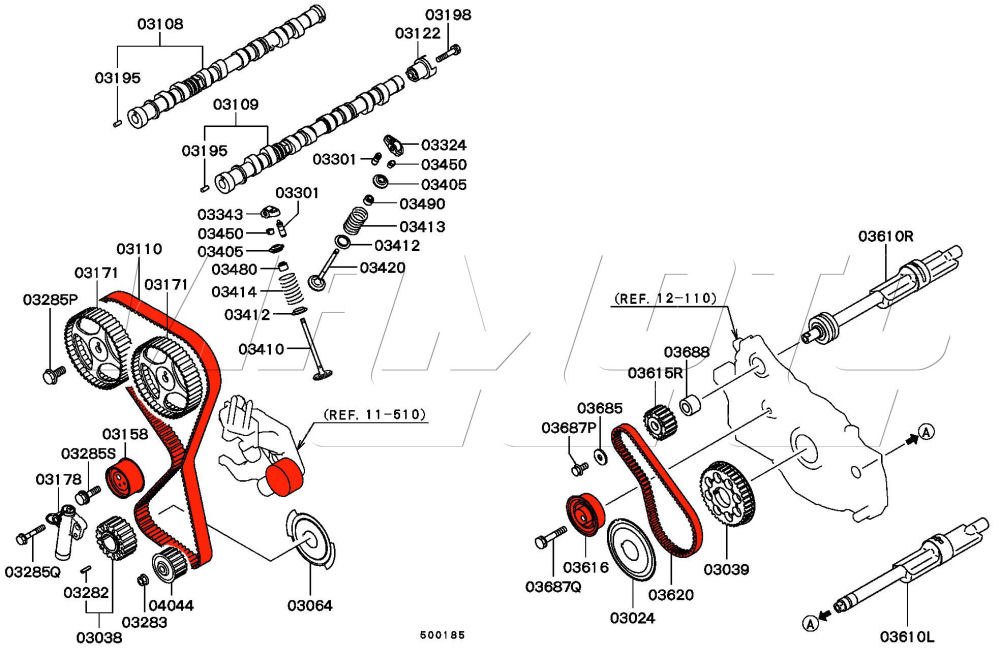

Gates Cambelt Kit - Mitsubishi Lancer Evolution 5 6 CP9A Complete Cambelt kit consisting of 1 x Gates Timing Belt 1 x Gates Balance Shaft Belt 1 x Cambelt Tensioner Bearing 1 x Upper Idler Bearing 1 x Balance Shaft Tensioner Bearing Gates Belts OE quality as it gets without the Dealer Pricetag Bearings are OE Manufacturers such as KOYO NTN NSK GMB Exploded Diagram Showing Locations these are fitted is HERE Mitsubishi Part Numbers MD326059 MD327394 VP326059 MD156604 MD182537 MD334548 MD369999 MD352473 MD115976 MD192068
Rear Engine Mount to fit Mitsubishi Lancer Evolution 5 6 GSR CP9A The one that sits at the rear on the engine cradle If the engine rocks front to rear this is one of 2 mounts that may need changing. Exploded Diagram HERE Mitsubishi Part Number MR369306
DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

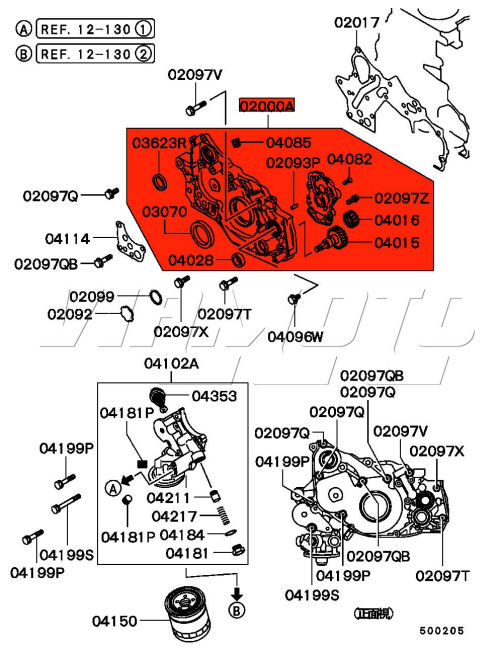

Oil Pump - Mitsubishi Lancer Evolution 5 6 CP9A Oil pump or Case Assembly Cylinder Block as Mitsubishi call it Not a cheap part but if you need one you need one ! Exploded Diagram HERE Mitsubishi Part Number MD366260 MD322509
Idle Speed Controller - Stepper Motor - EVO 5 6 CP9A If your engine idling is going up and down like a fiddlers elbow then this could well be the reason.
Supplied as an aftermarket Copy For an Exploded Diagram of inlet manifold and Throttle body Click HERE Mitsubishi Part Number MD614921
Alternator Belt Tensioner Assembly - Mitsubishi EVO 5 6 CP9A Exploded Diagram HERE Mitsubishi Part Number MD355488
Main Crank Pulley - Mitsubishi Lancer Evolution 5 6 CP9A This is a 2 part pulley glued together with rubber. The rubber is there to provide engine damping ie to stop vibration. However the rubber does perish and the pulley can fall apart destroying the belt. See HERE & HERE Mitsubishi Part Number MD377605
Fuel Filler Neck - Petrol Filler Neck - Mitsubishi Lancer Evolution 5 6 CP9A Same part used on all models of EVO 5/6 even though the fuel system pipework layout is different. These are prone to corrosion as they are mild steel. Exploded diagram HERE Mitsubishi Part Number MR135982

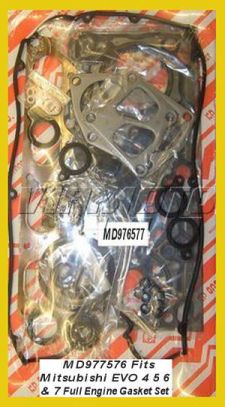

Engine Gasket Set - Engine Overhaul Gasket Set - Mitsubishi Lancer Evolution 5 6 CP9A All the gaskets required to overhaul the engine incl the main turbocharger gaskets. This is a quality aftermarket Kit Mitsubishi Part Number Engine Gasket Set Part No. MD976577 Contains 1540A019 Inlet Manifold Gasket MR323654 Exhaust Manifold Gasket MD340535 Rocker Cover Gasket MD186785 Spark Plug Seals (4) MD372536 Camshaft Oil Seals (2) MD329503 Cam Position Sensor Gasket MD306079 Valve Stem Seals (Inlet 8) MD307343 Valve Stem Seals (Exhaust 8) MD363254 Thermostat Housing Gasket MD030763 O'Ring to Cooling Water Line MD030764 O'Ring Cooling Pipe to Water Pump (2) MF660065 Gasket Copper Washer Turbo Water Pipes D14 (4) MF660063 Gasket Copper Washer Turbo Oil Feed Pipe To Engine D10 (2) MF660064 Gasket Copper Washer Turbo Oil Feed Pipe To Turbo D12 (2) 1515A184 Exh. Manifold to Turbo Gasket MR299686 Turbo to Turbo Elbow Gasket MR258477 Oil Drain Pipe Gaskets (2) MD346741 Cylinder Head Gasket MD075834 Oil Dip Stick Tube to Block MD334962 Water Pump Gasket MD359158 Crank Oil Seal Gearbox Side MD343563 Crank Oil Seal Cambelt Side MD343565 Oil Seal Balance Shaft to Oil Pump MD365697 Oil Seal Oil Pump Drive Cog MD041021 O'Ring Oil Pump Front Case MD322522 Oil Filter Housing Gasket MD322521 Oil Pump Gasket to Block MD183240 Sump Oil Strainer Gasket MD050317 Oil Drain Plug Gasket/Washer
