Nuts for Front/Rear Strut Top Mounts to Body - Mitsubishi
Used on Numerous Mitsubishi Models incl EVO's, FTO's GTO's Colts, Lancer GSR's etc
These nuts bolt the strut top mounts to the body of the vehicle Locations shown HERE
Choose from Aftermarket or Genuine Mitsubishi
Mitsubishi Part Number MF434105
Fits on the Front Strut Top Mount of EVO 1-9, FTO's, Lancer 1.8T GSR's Various Colts and GTO's/3000GT's without ECS
3rd Picture on Listing Shows Location Fitted
Price is for ONE
Mitsubishi Part Number MB109960
THESE ARE DISCONTINUED BY MITSUBISHI - BUT WE HAVE STOCK
Front Bottom Arm - Rear Bracket Bolt to Subframe Mitsubishi Lancer EVO 1 2 3 CD9A CE9A
There are 4 of these used to clamp the rear bracket on the Front Arms (2 per arm - price is per bolt)
Location Used shown HERE
Mitsubishi Part Number Now Use MU140064 WAS ALSO MR102862 MB844918 MU000390
Bolt for Trailing Arm Bush - Mitsubishi Lancer EVO 123 CD9A CE9A Location Shown HERE Mitsubishi Part Number MB809345 MU140065
Rear Upper Rubber Spring Mount - Mitsubishi Lancer EVO 1 2 3 Rear upper spring mount rubber this is what the spring locates against Exploded Diagram HERE Mitsubishi Part Number MB809280
Front Support Bar Rear Bolt - Mitsubishi Lancer EVO 2/3 CE9A
Location Fitted Shown HERE
Mitsubishi Part Number MB176660
Bolt Rear Crossmember to Body - Mitsubishi Lancer EVO 1 2 3 CD9A CE9A
Exploded Diagram Showing Location Used HERE
Mitsubishi Part Number MB809344

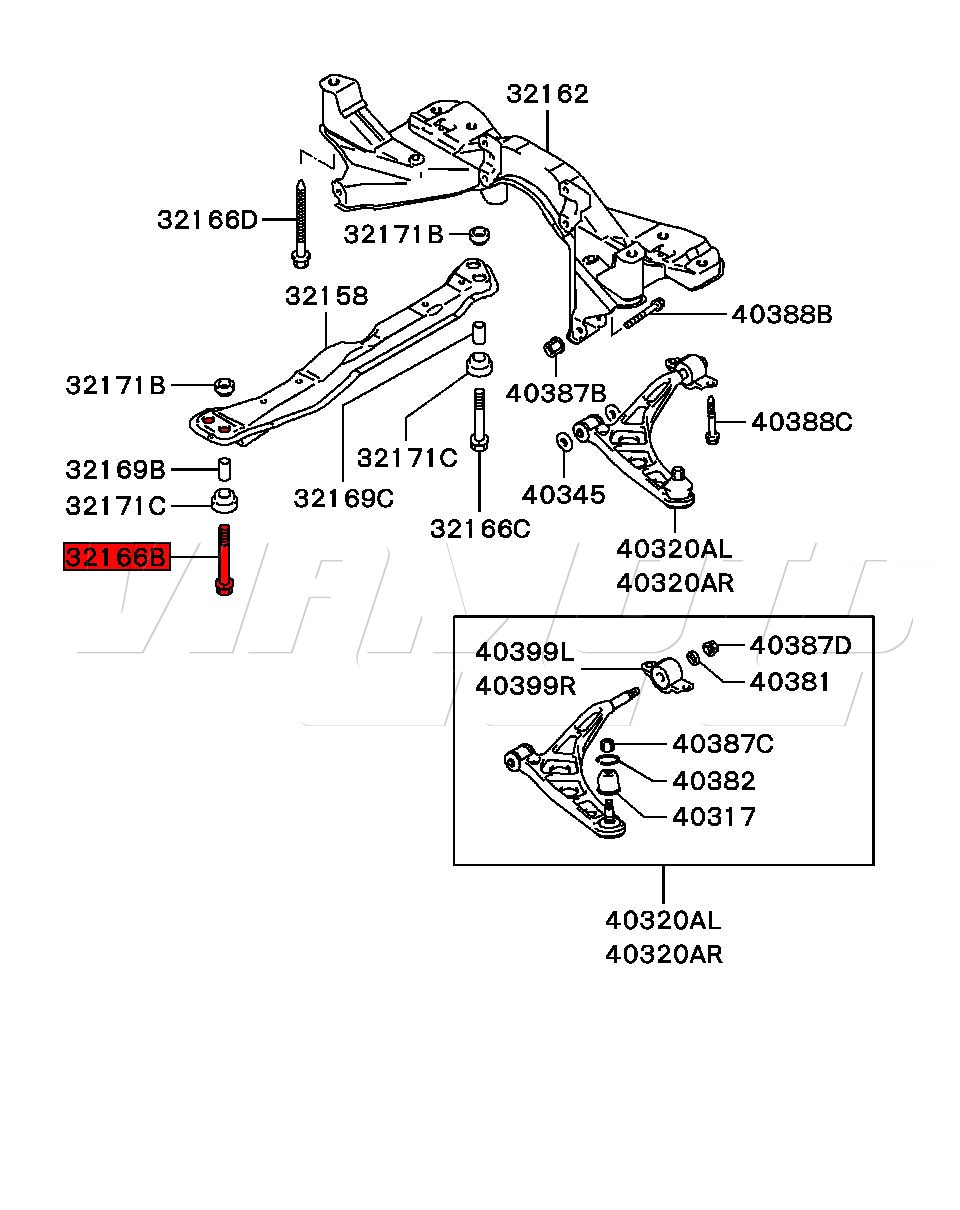

Front Support Bar Front Bolt - Mitsubishi Lancer EVO 2/3 CE9A
Mitsubishi Part Number MB176661
Wurth Ultra 2040 Multi-Purpose Lubricant - 500ml
Loosens seized and rusted parts With PTFE and 360° valve Silicone-free Removes moisture from electrical systems Strong water displacement effect
One of the Best Water displacing penetrants with PTFE for long term lubrication. Suitable for: All types of Vehicles, industrial machinery, boats, generators and in the home.
SAFETY DATA SHEET.
THIS PRODUCT CANNOT BE SENT OUT OF UK AS IT IS AN AEROSOL DO NOT ORDER IF YOU ARE LOCATED IN ANOTHER COUNTRY
Front Anti Roll Bar Bushes - Mitsubishi Lancer EVO II / III CE9A Sold as a pair. Choose Standard or Ralliart Bushes (While Stocks Last) Mitsubishi Part Number MR197005
Rear Arm Bolt - Lower Shocker Bolt - Mitsubishi Lancer Evolution 2 3 CE9A This nut & bolt is used in 3 different locations on the rear of your EVO 2 3 See HERE for locations used. Mitsubishi Part Numbers Bolt MB809342 MU140064 MU000390 Nut MB288463 SS to MU431503 MH004161 MU431006
Lower Diff Support Rubber Washer - Lancer EVO 1 2 3 CD9A CE9A
Location Used Shown HERE
Mitsubishi Part Number MB515155
Upper Diff Support Rubber Washer - Lancer EVO 1 2 3 CD9A CE9A
Mitsubishi Part Number MB515154
Rear Dogbone Arm - Round Bush - Mitsubishi EVO 2/3 CE9A
These are available in both 36mm Diameter and 40mm Diameter YOU NEED TO MEASURE YOUR DOGBONE ARM ROUND BUSHES
Mitsubishi Part Number These are NOT sold separate by Mitsubishi
Front Shocker Lower Bolt/Nut - Mitsubishi Lancer EVO 1 2 3 CD9A CE9A Price is for ONE Bolt and ONE Nut You need 4 of them for Both Front Shockers Same Nut/Bolt Used in Both Upper and Lower Holes Mitsubishi Part MB518761 MB573720
Mitsubishi Lancer Evo 2 & 3 CE9A Superflex - Front Anti Roll Bar to Body Kit of 2 Bushes EVO 2 3 **please measure bar diameter Standard Size is 16mm OEM No MR197005 Superflex Part Number = SF259-1700K
Front Bottom Balljoint Rubber Boot MB176047 Mitsubishi Colt/Mirage/Cyborg CJ4A 1.6 Mivec
Common MOT failure but easily replaced. There are 2 different types of Balljoint boot on CJ4A If unsure of which one Provide Full Chassis/Vin No.
Mitsubishi Part Number MB176047
Front Bottom Balljoint Rubber Boot - Mitsubishi Lancer EVO 1 2 3
This fits OEM Balljoint - Not tested on aftermarket balljoint
Rear Dogbone Arm -T Bar Bush - Mitsubishi EVO 2/3
These are sold in singles - Each Dogbone Arm uses One of these So you need 4 in total to Replace all the T Bar Bushes on the Dogbone Arms
Rear Tracking/Camber Bolt - Mitsubishi Lancer Evolution 2 3 CE9A These adjust both tracking and camber on the Rear of your EVO 2 3 See HERE for locations used on the EVO 2 3 Price is per bolt Mitsubishi Part Numbers Camber Bolt MB809335 or MR333373 Offset Washer MB809338 or MR171026 or MR333376 Spring Washer MS450044 Nut MF430123 now MU430003
Rear Anti Roll Bar Bushes 18mm - Mitsubishi Lancer EVO 2 3 CE9A Pair of 18mm Rear ARB Bushes See Exploded Diagram and information HERE Mitsubishi Part Number MR197003
Rear Trailing Arm Bush - Mitsubishi Lancer Evolution 2 3 CE9A SOLD as a Single Bush - Order 2 to do Either Side of Vehicle Location shown HERE Mitsubishi Part Number MR102063 MB809262
Mitsubishi Lancer Evolution 2/3 CE9A Superflex - Rear Anti Roll Bar to Body Kit of 2 Bushes for 27mm Bracket **please measure bar diameter Usually 18mm For Standard OEM Bar 20mm For Aftermarket Bar Superflex Part Number = SF261-2004K
Front bump Stop and Dust Cover Set - Mitsubishi Lancer Evolution 2 3 CE9A Choose from Aftermarket or OEM Mitsubishi Items Exploded Diagram HERE Kit Contains :- 2 x Bump Stops and 2 x Dust Covers Mitsubishi Part Number MB518957 or MR333831 MB303070
Front Droplinks - Suspension Links - Pair - Mitsubishi Lancer EVO II / III CE9A Front suspension links also called a Droplinks, these are what make the horrible rattling sound from the front when they are badly worn. These join the Shock absorber to the anti roll bar. See HERE Mitsubishi Part Number MR131680 MR272116 4056A031
Rear Droplinks - Suspension Links - PAIR - Mitsubishi Lancer EVO II / III CE9A Rear stabiliser link also called a droplink or suspension link. This attaches the rear anti roll bar to the rear lower arm.
See HERE Current Stock is Silver in Colour Mitsubishi Part Number MB809354 4056A021
Rear Bump Stop and Dust Cover Set - Mitsubishi Lancer Evolution 2 3 CE9A Choose from Aftermarket or OEM Mitsubishi Items Exploded Diagram HERE Kit Contains :- 2 x Bump Stops and 2 x Dust Covers Mitsubishi Part Number Bump Stop MB809285 Dust Cover MB809284
Rear Adjustable Drop Links for Mitsubishi Lancer Evolution 2 & 3 CE9A 1994-1996
Fits Mitsubishi Lancer Evolution 2 & 3 CE9A - 1994 to 1996. Also fits some Evolution 1 that use this kind of link.
These drop links allow a small adjustment in length over your OE links if required (From OEM to -5mm).
OE/OEM Reference No's: MB809354, 4056A021. Other Reference No's: 27983, G7-807, 11859 01, FDL6514, 042904B, 32-160600002, QLS1833S.
RoadNutz Shortened Adjustable Drop Links Kit. Kit contains: 2 x Rear Adjustable Anti Roll Bar Drop Links
RoadNutz Part Number: RN-ADJ085A-F818
