Front Anti Roll Bar Bushes - Mitsubishi Legnum/Galant VR4 EC5W EC5A also called D Bushes - Common MOT Failure Exploded Diagram HERE Mitsubishi Part Number MR272646
Upper Radiator Hose - Mitsubishi Legnum/Galant VR4 - ALL Upper Radiator Hose - Fits ALL Legnum and Galant VR4's Mitsubishi Part Number MR212528
Spark Plug Socket - Mitsubishi Legnum VR4 Galant VR4 EC5W EC5A Part Number 3682
Quality replacement Rear Brake Pads for Mitsubishi Galant/Legnum VR4 EC5A EC5W Full set of 4 pads to do both Rear calipers. Mitsubishi Part Number MR389582
Front or Rear strut top mount repair kit - Mitsubishi FTO Contains Sleeve, washer, upper rubber bush & lower rubber bush All x 2 Enough to repair BOTH rear strut top mounts - See HERE Choose from Aftermarket Parts or Genuine Mitsubishi Mitsubishi Part Numbers Sleeve MB871748 Washer MB910887 Upper Bush MR223332 MB242358 MR130231 Lower Bush MR223333 MB338618 MR130230
Lower Radiator Hose - MR212530 - Legnum/Galant VR4 This fits ALL A/T VR4's but only certain Manual Models Please check BEFORE ordering when you car is a Manual as there are 2 different hoses. Mitsubishi Part Number MR212530
Crankshaft oil seal - Front/Cambelt Side for Mitsubishi Legnum VR4 EC5W Galant VR4 EC5A If your cambelt looks a little oily or there is oil leaking out of the bottom of the cover then this could be the culprit. Location Diagram HERE Mitsubishi Part Number MD168055 AH8740F
Adjuster Bolt Kit for Alternator Tensioner - Legnum/Galant VR4 EC5A EC5W These can get quite corroded and seize. 3 Part kit Mitsubishi Part Numbers MD304712 Adjuster Bolt DISCONTINUED MD305965 Centre Slider Bolt DISCONTINUED MF434105 Nut
Front Brake Hose - Mitsubishi Legnum/Galant VR4 09/1996 onwards Common MOT failure. 310mm+270mm = 580mm Mitsubishi Part Number MR334054
Polyurethane Rear Upper Knuckle Bush Kit - Legnum VR4 Galant VR4 EC5W EC5A Complete kit comprising 4 Top Hat Bushes and 2 Steel Tubes with Fitting Grease
Choose from Superflex (while stocks last - 1 set left) or Superpro Exploded Diagram Showing Location Fitted HERE
Mitsubishi Part Numbers Fits to Rear Knuckle Part No's MB864931, MB864932
Power Steering to Cooler Line Pipework - MR333485 Galant/Legnum VR4 EC5A EC5W
This metal double pipe joins the rubber lines to the Cooler Pipe and is prone to corrosion
Mitsubishi Part Number MR333485
Adjuster for Rear Brake Shoes to fit EVO 4 5 6 7 8 9, Galant/Legnum VR4. GTO/3000GT
Same adjuster used on all models same part number used both LH and RH sides of the vehicle
PRICE IS FOR ONE ADJUSTER
Location Used Shown HERE
Mitsubishi Part Number MB520459
Speedometer Sensor Cog - Gearbox Speedo Sensor Cog - Legnum/Galant VR4 EC5W EC5A Fits both Manual and Auto Gearboxes (N=29) Exploded Diagram HERE Mitsubishi Part Number MD747098
Front Droplinks - PAIR - Legnum/Galant VR4 EC5W & EC5A Exploded Disgram HERE
Current stock is Black in Colour Not Silver/Gold Mitsubishi Part Numbers MB892981 4056A026

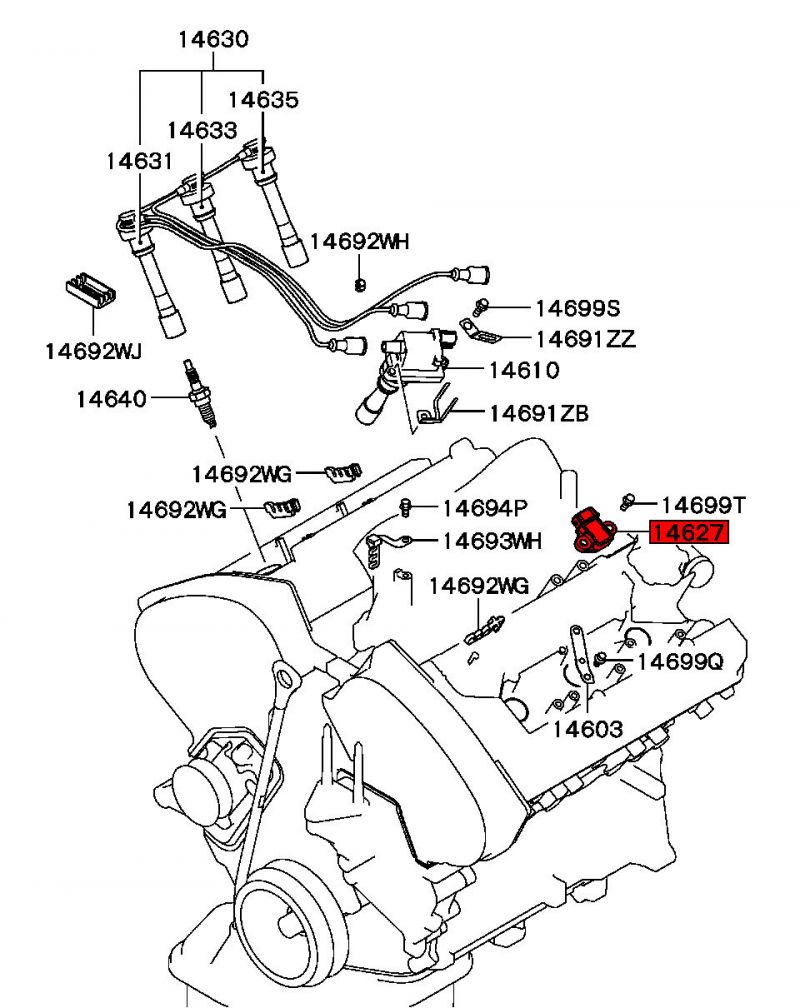

Ignition Failure Sensor - Legnum/Galant 2.5 Twin Turbo 4WD VR4 EC5W EC5A This item detects misfires in the ignition system. If the car refuses to fire then this could be at fault. See HERE for where located on Engine. Mitsubishi Part Number MD374437 MD315784 MD354655
Petrol Tank Seal to Pump/Sender Mitsubishi Galant/Legnum VR4 2.5 Twin Turbo EC5A EC5W
Locations used HERE
Mitsubishi Part Number MR342213 was MB867373
Cylinder Head Bolts x 8 - Mitsubishi Legnum VR4 Galant VR4 Sold as Set of 8 to bolt ONE Cylinder head to the block On a V6 you need 2 sets of 8 bolts - ie 16 For Exploded Diagram Click HERE Choose Aftermarket or Original Mitsubishi Mitsubishi Part Number MD164738 x 8
Rear Brake Caliper Seal Kit - Rebuild Kit - Legnum VR4/Galant VR4 Complete Rear Caliper Seal Kit - All the seals required to Rebuild the Rear Caliper. Exploded Diagram HERE Mitsubishi Part Number MB857612 MB950202 now 4605B985
3 Pin Input Speed Sensor - Mitsubishi VR4 Legnum/Galant Auto Gearbox Modelss This can be one of the problems associated with Flashing N on the Dash. Exploded Diagram HERE Mitsubishi Part Number 8651A111 MD759163 MR567292
Rear Droplinks - PAIR - Legnum/Galant VR4 EC5W & EC5A Exploded Diagram HERE Picture for Illustration ONLY - Current stock is Black in Colour Not Silver/Gold
Mitsubishi Part Numbers MR131732 4056A019
Power Steering Rubber Hose - MR198425 Galant/Legnum VR4 EC5A EC5W This is one of the rubber hoses that joins to the joiner metal pipe to the Cooler Pipe Mitsubishi Part Number MR198425
Seal Kit for Clutch Slave Cylinder - Mitsubishi Lancer EVO 4 5 6 7 8 9
Fits OEM Slave Cylinder Part No. MD748617
Mitsubishi Part Numbers MD977130 was MD972780
Radio Brackets - Mitsubishi Legnum/Galant VR4 - EC5W EC5A Pair of Radio brackets to allow fitment of Standard sized stereo. Sold as a Pair - 2 Brackets 1 x LH & 1 x RH Exploded Diagram HERE Mitsubishi Part Numbers MR250254 LH Now Discontinued by Mitsubishi MR250256 RH
So no point trying to sell a pair when one is Discontinued - Sorry
Rear Strut Top Mount - Mitsubishi Legnum/Galant VR4 EC5W
Quality Aftermarket Rear Strut Top Mount Complete with Mounting Nuts
Mitsubishi Part Number MR103157
HandBrake Shoes - Parking Brake Shoe Set - Mitsubishi Legnum/Galant VR4 EC5W EC5A Complete set of 4 Shoes. Choose from OE Mitsubishi or Aftermarket Parts Exploded Diagram HERE Mitsubishi Part Numbers MR391631 MB950212 MN102635 MB857295 x 2 MB857296 x 1 MB857297 x 1 MB668906 x 2 MB668907 x 1 MB668908 x 1 MB129854 x 2 MR129855 x 1 MR129856 x 1
Front Brake Caliper Rebuild Kit - Mitsubishi Legnum/Galant VR4 EC5W EC5A For Exploded Diagram Click HERE Mitsubishi Part Number MB857840 4605B977
Front Engine Mount - Galant/Legnum VR4 EC5W Manual/Auto Please check before ordering that this part number is fitted your vehicle Mitsubishi Part Number MR198381

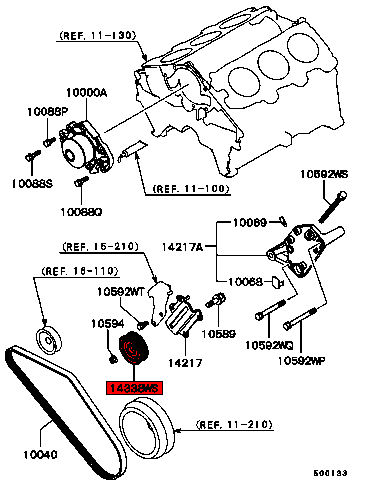

Alternator Tensioner Pulley - Mitsubishi Legnum VR4 EC5W Galant VR4 EC5A These are very prone to wear. To check simply rock top to bottom like a wheel bearing, any more than about a mm or 2 play and it's on it's way out. Remove belt and spin it to make 100% sure, if it's noisy change it. Exploded Diagram - HERE Mitsubishi Part Number MD303884 MD359746
