Oil Pressure Switch - Mitsubishi Legnum VR4 EC5W Galant VR4 EC5A Exploded Diagram HERE Mitsubishi Part Number MD138993 MD138994 1258A003
Bump Stop Cup for Shock Absorber - Mitsubishi Galant/Legnum VR4 EC5A EC5W Same Part used on both Front and Rear Shockers so you need 4 per vehicle
Locations Fitted Shown Here
Mitsubishi Part Number MB338614
Radiator Drain Plug - Legnum/Galant VR4 EC5A EC5W This will fit the original Mitsubishi radiator (We do not know if it will fit aftermarket radiators) Mitsubishi Part Number MB597892
Rear Upper U Arm Outer Bolt Kit - Legnum VR4 Galant VR4 EC5W EC5A Complete kit comprising Bolt, Spring Washer and Nut Exploded Diagram Showing Location Fitted HERE
Mitsubishi Part Numbers MB844521 Bolt MS450993 Spring Washer MU430003 Was MF430123 Nut
Rear Trailing Arm Rear Bolt Kit - Legnum VR4 Galant VR4 EC5W EC5A Complete kit comprising Bolt, Spring Washer and Nut Exploded Diagram Showing Location Fitted HERE
Radiator Cap - Mitsubishi Legnum VR4 EC5W, Galant VR 4 EC5A Go on replace that rusty eyesore. Exploded diagram HERE Mitsubishi Part Number MB660667 MR481216
Front LH Driveshaft Oil Seal - Mitsubishi Legnum/Galant VR4 2.5 TT Manual Models Exploded Diagram HERE Mitsubishi Part Number MD758763
Automatic Gearbox Oil Filter - Transmission Filter - Legnum VR4 Galant VR4 This is the one located on top of the gearbox. See HERE
Choose from Aftermarket Copy or Genuine Mitsubishi Aftermarket are currently Purolator old stock so boxes may be slightly damaged (hence the big drop in price)
Mitsubishi Part Number MD752072
Dash Temperature Sender - Mitsubishi Legnum/galant VR4 EC5W/EC5A This item provides the signal that gives temp on dash gauge. THIS IMAGE shows location of this item Mitsubishi Part Number MD091056
Sump Plug - Oil Pan Drain Plug - Legnum/Galant VR4 2.5 TT EC5W EC5A Genuine Mitsubishi Part Mitsubishi Part Number MD050316
Sealing Ring - Turbo Exhaust Gas Inlet - Galant/Legnum VR4 EC5A/EC5W One is used on each Turbo Mitsubishi Part Number MD077551
Clutch Alignment Tool 23 Spline 25mm - Various Mitsubishi Models eg EVO4-9/VR4/GTO TT/3000GT TT
Fits Mitsubishi Vehicles that use 23 Spline Centre and 25mm Bore Viamoto Part Number VM0001338 or RN-VM-1338
Fast Idle Valve to Throttle Body Seal - Mitsubishi Galant/Legnum VR4 EC5A EC5W See Exploded Diagram HERE Mitsubishi Part Number MD614680
Front LH Driveshaft Oil Seal MN130496 - Mitsubishi Legnum/Galant VR4 EC5W-EC5A
5 Speed Auto Gearbox Models Exploded Diagram HERE Mitsubishi Part Number MN130496
Drive Shaft Castle Nut - Mitsubishi Galant/Legnum VR4 EC5A EC5W
Used on Both Front and Rear - So 4 in total used on vehicle
Mitsubishi Part Number MB109029
Bump Stop Front/Rear - Mitsubishi Galant/Legnum VR4 EC5A EC5W Now Supplied as German Aftermarket Copy as Mitsubishi have Discontinued
Locations Used Shown Here
Mitsubishi Part Number MB949043
Front Brake Pad Clip Set - Mitsubishi Legnum/Galant VR4 EC5W EC5A Choose from Aftermarket Set or Genuine Mitsubishi Set For Exploded Diagram Click HERE Mitsubishi Part Number MR389599
Front Brake Pad Shim Kit - Mitsubishi Legnum/Galant VR4 EC5W EC5A These shims are fitted ONLY to the Outer pad in the caliper. Exploded diagram HERE Mitsubishi Part Number MR389651
Air Filter - Mitsubishi Legnum VR4 Galant VR4 Quality Standard Replacement Air Filter. Air Cleaner Element. Exploded Diagram Click HERE Mitsubishi Part Numbers MR266849 MR529773
Crankshaft Blade - Crank Sensor Blade - Legnum/Galant VR4 EC5W EC5A This is the item that the crank angle sensor takes the signal from. Sometimes called the crank propeller. Exploded Diagram HERE Mitsubishi Part Number MD184290
Alternator Belt - Mitsubishi Galant/Legnum VR4 EC5A EC5W Fit the Best Fit Gates Belts For Belt Layout Diagram Click HERE Mitsubishi Part Number MD184973
Rear Differential Driveshaft Oil Seal - Mitsubishi Legnum VR4 EC5W Galant VR4 EC5A Only 1 of these is used on the LH Side Chassis Number is required to check Exploded Diagram HERE Mitsubishi Part Number MD707184 MB393932

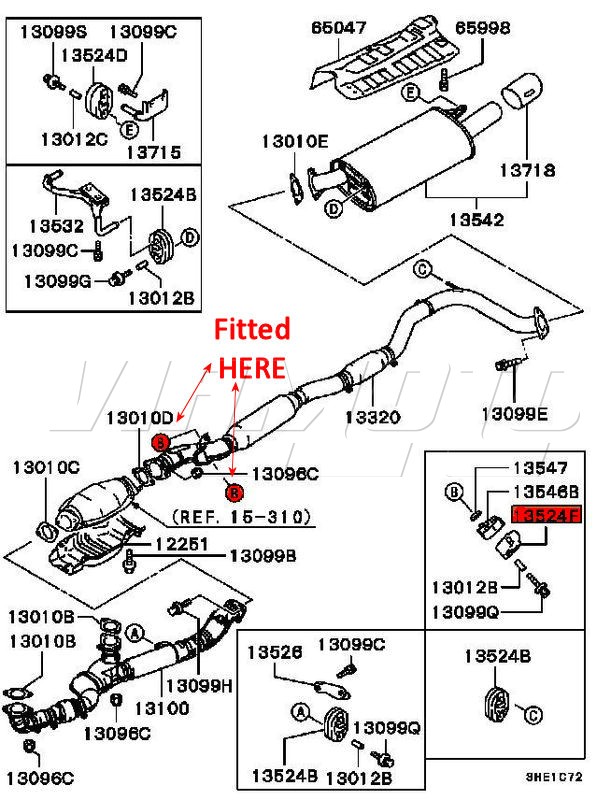

Exhaust Rubber Mount - Middle Section Behind Cat - Legnum/Galant VR4 EC5W EC5A TWO of these used, one in each location on diagram (Sold in Singles) See larger exploded Diagram of Location HERE Mitsubishi Part Number MB611935
Radio Blanking Panel - Mitsubishi Legnum/Galant VR4 For Exploded Diagram Click HERE Mitsubishi Part Number MR250558
Rear Outer/Inner(Round Type) CV Boot Kit - Mitsubishi Legnum/Galant VR4 EC5W EC5A
Fits ALL Rear Outer and Fits the Rear Inner ONLY on VERY Rare cars with AYC
Mitsubishi Part Number MR246516 MR336612 MR336614
Bracket for Rear Anti Roll Bar Bush - Mitsubishi Galant/Legnum VR4 EC5A EC5W
Price is for ONE Bracket (TWO Used on Vehicle)
Exploded Diagram Showing Locations Used HERE
Mitsubishi Part Number MR272715

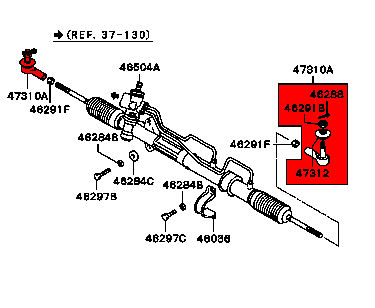

Steering Rack Tie Rod End - Track Rod End - Mitsubishi Legnum/Galant VR4 EC5W EC5A Whatever you call it , this screws onto the tie rod and is a common MOT Failure. Locking mechanism for MOT can be either a castle nut and split pin or nylock nut depending upon supplier. See HERE for exploded diagram
Tracking/Alignment Settings HERE in jpeg and HERE in pdf Thanks to ClubVR4 for providing these - Join ClubVR4 HERE
Mitsubishi Part Number MB912519 MB192430 MB192499 MB489434 MB564991 MB573885 MB616286 MB166426 MB006314
