Sump Plug - Oil Pan Drain Plug - Colt 1.8 GTi CA5A Genuine Mitsubishi Mitsubishi Part Number MD050316
Steering Rack Tie Rod End - Track Rod End Mitsubishi Colt 1.8 GTi CA5A Whatever you call it , this screws onto the tie rod and is a common MOT Failure. Locking mechanism for MOT can be either a castle nut and split pin or nylock nut depending upon supplier.
Choose from Aftermarket Copy or Genuine Mitsubishi
Location Fitted Shown HERE Mitsubishi Part Number MB912076 MR476457 MB598023 MB527169 MB597605 48564W020P
Standard Replacement Air Filter - Mitsubishi Colt 1.8 GTi CA5A 4G93 1992-1996 Exploded Diagram of Airbox and Intake HERE Mitsubishi Part Number MD620737 MR571472
Genuine Mitsubishi Oil Filter - Mitsubishi Colt 1.8i 16v GTi CA5A 4G93 04/92-03/96 One of 'The Best' Oil Filters for your Colt money can buy Made by Purflux for Mitsubishi Motors Mitsubishi Part Number Was MZ690070 Now Supplied as MZ690901 Also Superceed's MZ690115 MD135737 MD322687 TS200004
Alternator Belt - Colt 1.8i 16v GTi CA5A 4G93 1992-1996
Alternator BELT Layout 1,2,3 on Diagram HERE
Mitsubishi Part Number MD176786 MD180574 MD183556
Rear Strut Top Lower Cup - Mitsubishi Colt 1.8 GTi CA5A Rear Lower Cup, this stops the shocker rod being pushed through the mount rubbers Exploded Diagram HERE Mitsubishi Part Number MB809281
Fuel Filter - Petrol Filter - Mitsubishi Colt 1.8i 16v GTi CA5A 4G93 1992-1996 For Exploded Diagram Click HERE Mitsubishi Part Numbers MR224485 MB868459 MB504762 MB504760 MB504744 MB658689 MB658684 MB868454 MB868460 MB868457 MB868451 MB868452 MB504759
Front Droplinks - Suspension Links - PAIR - Mitsubishi Colt 1.8 GTi CA5A
Sold as a Pair See HERE Mitsubishi Part Number MB241974 MR954888
Clutch Alignment Tool 20 Spline 22mm - Mitsubishi FTO/EVO 123/Colt/GTO NON Turbo etc Fits Mitsubishi Vehicles that use 20 Spline Centre and 22mm Bore Viamoto Part Number VM0001328 or RN-VM-1328
Throttle Body Idle Adjusting Screw Kit - Mitsubishi Colt 1.8 GTI CA5A The one that adjusts the engine idling. Kit Consists :- Adjusting Screw O'Ring For Throttle Body Exploded Diagram Click HERE Mitsubishi Part Numbers MD614948 Screw MD608806 O ring
Rear Dogbone Arm - Round Bush - Mitsubishi Colt GTi CA5A
These are available in both 36mm Diameter and 40mm Diameter YOU NEED TO MEASURE YOUR DOGBONE ARM ROUND BUSHES
Mitsubishi Part Number These are NOT sold separate by Mitsubishi
Thermostat - Mitsubishi Colt 1.8 GTi CA5A 4G93 82 degree 07/1992 onwards Includes the rubber sealing ring - there is no gasket as it seals on the rubber ring
82 Degree Opening Temp Location Fitted Shown HERE Mitsubishi Part Numbers MD175746 MD337408 MD338234 MD335170 MD165630 MD315301 MD360320 MD328070 MD310106 MD158570
Clutch Fork Dust Seal - Mitsubishi Colt 1.8 GTi CA5A Exploded Diagram HERE Mitsubishi Part Number MD718077

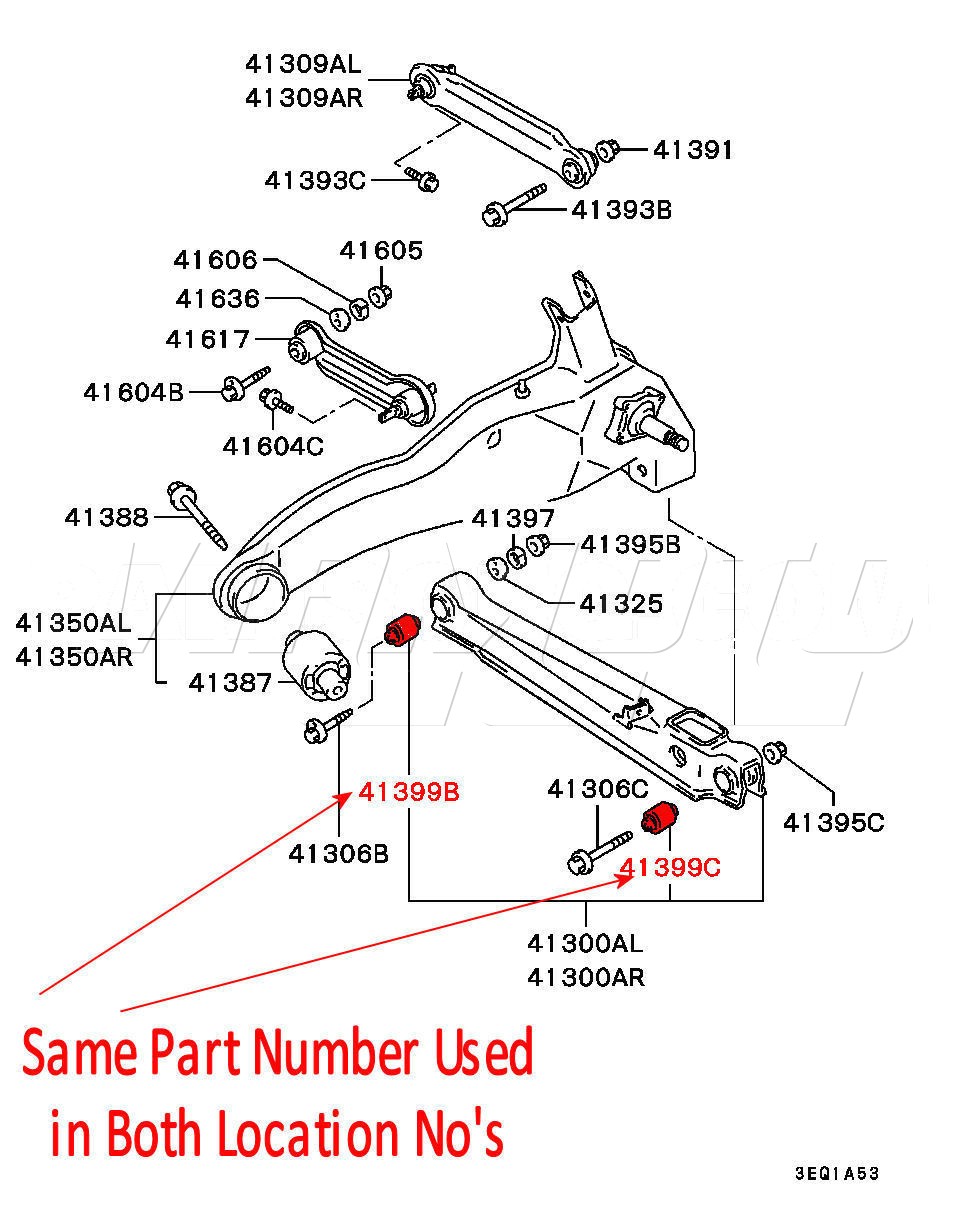

Rear Bottom Arm Inner/Outer Bush - Mitsubishi Colt 1.8 GTi CA5A Exploded diagram HERE Mitsubishi Part Number MR102012
Rear Caliper Handbrake Pin Bearing - Mitsubishi Colt 1.8 GTi CA5A
Where the Handbrake Spring is located these are underneath there - Rarely need Changed Mitsubishi Part Number Not Sold Separate
NGK Standard Spark Plugs - Mitsubishi Colt 1.8 GTi CA5A 4G93
Set of 4 Standard Replacement Spark Plugs
Read More about NGK Spark Plugs HERE Fit the Best - Fit NGK. Mitsubishi Part Number MS851358
Quality replacement Rear Brake Pads for Mitsubishi Colt 1.8 GTi CA5A Full set of 4 pads to do both Rear calipers. Mitsubishi Part Number MR389569 MB928314 MR389565
Air Con Belt AC - Mitsubishi Colt 1.8i 16v Gti CA5A 4G93 1992-1996 For Vehicles without Power Steering
BELT Layout 3 on Diagram HERE
Mitsubishi Part Number MB917986
Power Steering PS belt - Mitsubishi Colt 1.8i 16v Gti CA5A 4G93 04/92-03/96 For Vehicles with Manual Steering and NO Air Con
BELT Layout 2 on Diagram HERE
Mitsubishi Part Number MD188026
PCV Valve - Mitsubishi Colt 1.8 GTi CA5A
Exploded Diagram Showing HERE
Some of the older part numbers had a metal pipe on the threaded end, this part number replaces those as well. No need to swap the pipe over.
Mitsubishi Part Number MD152772 (Was also MD024719, MD041519, MD153242)
Note - Genuine Part is While Stocks Last
Engine Coolant Temperature Sender - Mitsubishi Colt 1.8 GTi CA5A 4G93 also called ECU Temp Sensor. This item can cause emissions problems if faulty Check your old one using this guide HERE. THIS IMAGE shows location of this item Mitsubishi Part Numbers 1308A012 MD177572 MD182467
Steering Rack Tie Rod - Rack End -Drumstick Mitsubishi Colt 1.8 GTi CA5A 04/1992-03/1996 Whatever you call it , its the part the Track rod end screws onto and the part thats covered by the Steering rack boot. See HERE for exploded diagram Mitsubishi Part Number MR130807 MB910934 MB910961 MR297969
Extra Small GP0031 Small GP0032 Medium GP0033 Large GP0034 Extra Large GP0035
Radiator Fan Switch- Colt 1.8i 16v GTi CA5A 4G93 04/1992-03/1996
This is the switch that turns the fan on when engine gets too hot Switches on at 85 Degrees C off at 80 Degrees C
Located in the Bottom Edge of the radiator See HERE
Mitsubishi Part Number MB605079
Rear Dogbone Arm T Bar Bush - Mitsubishi Colt GTi CA5A
These are sold in singles - Each Dogbone Arm uses One of these So you need 4 in total to Replace all the T Bar Bushes on the Dogbone Arms
Air Con / Power Steering Belt - Colt 1.8i 16v GTi CA5A 4G93 1992-1996 For Vehicles with Both Air Conditioning AND Power Steering Fitted
BELT Layout 1 on Diagram HERE
Mitsubishi Part Number MB917985
Front Outer CV Boot Kit - Mitsubishi Colt 1.8 GTi CA5A 4G93
Thermoplastic Boot with Clips and Grease Common MOT Failure
Mitsubishi Part Numbers MR222635
Front Brake Hose - Mitsubishi Colt 1.8 GTi CA5A 4G93 - 04/1992 to 03/1996
Exploded Diagram HERE
Mitsubishi Part Numbers MR129881 MB699556 MR129805
Rear Droplinks - Suspension Links - Colt 1.8 GTi 92-96 Colt 1.8i 16v Gti CA5A 4G93 1992/02 - 1996/12 ie Cars Built after 02/1992 PAIR Rear stabiliser links also called droplinks or suspension links. These attach the rear anti roll bar to the rear lower arm.
There are 2 Choices of Droplink for these vehicles See HERE Mitsubishi Part Number MB809355 MB597604 4056A037 PW521020 MR403771
Front Brake Caliper Rebuild Kit - Mitsubishi Colt 1.8 GTi CA5A 4G93 Single Pot Caliper For Exploded Diagram Click HERE Mitsubishi Part Number MB699175 or 4605B973
