Gasket to Lower Rad Cap Spout - Mitsubishi GTO/3000GT could also be called Coolant Filler Spout Lower Gasket or Coolant Filler Neck To Thermostat Housing Gasket
Exploded Diagram Showing Location HERE
Mitsubishi Part Number MD165017
O'Ring to Water Pump Inlet Pipe - Mitsubishi GTO/3000GT
You need 2 of these one for each end of the pipe. Locations Used Shown HERE
Mitsubishi Part Number MD147332
Radiator Drain Plug - GTO/3000GT This will fit the original Mitsubishi radiator (We do not know if it will fit aftermarket radiators)
Mitsubishi Part Number MB597892
Gasket to Water Outlet/Thermostat Housing to Head - GTO/3000GT
This gasket is used in 4 locations on the engine (Price is for ONE Gasket) Locations are shown on this Image HERE
Mitsubishi Part Number MD195654 now MD319539
Radiator Cap - Mitsubishi GTO/3000GT
Top quality replacement radiator cap. Called a radiator cap but on an GTO/3000GT it's located in the middle of the engine. Mitsubishi Part Numbers MB660735 MB222066 MB356417 MB660171 MB660701 MB845036 MB890520 MB957124
Dash Temperature Sender - Mitsubishi GTO/3000GT

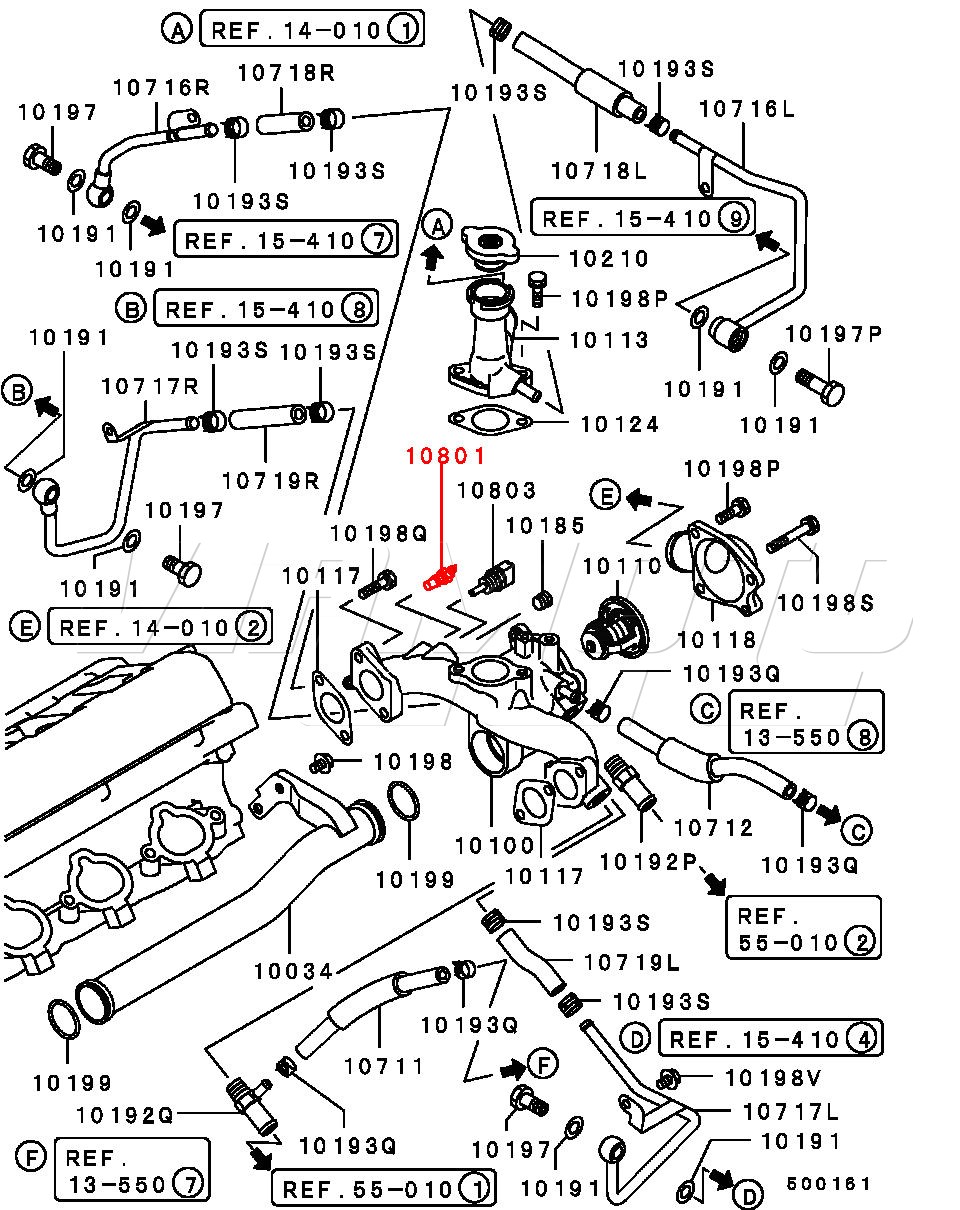

Dash Temperature Sender. This item provides the signal that gives temp on dash gauge. THIS IMAGE shows location of this item Mitsubishi Part Number MD091056
Engine Coolant Temperature Sender - Mitsubishi GTO/3000GT 10/1992 onwards also called ECU Temp Sensor. This item can cause emissions problems if faulty. Check your old one using this guide HERE. THIS IMAGE shows location of this item Mitsubishi Part Numbers MD177572 MD182467 1308A012
Thermostat - Mitsubishi GTO/3000GT
The Thermostat fits ALL GTO/3000GT Models BUT Models up to 10/1990 may need a separate Paper Gasket (From Z16A-0000005 to Vin No. Z16A-0000235 needs the gasket) (Z16A-0000236 onwards uses the Rubber Seal around rim) Choose From Dropdown Menu Exploded Diagrams HERE
Mitsubishi Part Numbers Up to 10/1990 = MD997679 + MD146834 Aftermarket Gasket 10/1990 onwards = MD174234 now 1305A603
Alternator/AC Pulley - Mitsubishi GTO/3000GT
Choose from Aftermarket Copy or Genuine Mitsubishi
Belt Diagram showing Pulley Location in RED HERE
Mitsubishi Part Number MD318474 MD161716
Mitsubishi Super Long Life Coolant - MZ321117 - 5 Litres 100% Genuine Mitsubishi 50% Pre-mixed Anti-rust Anti-Freeze Super Long Life coolant is a new generation ethylene glycol-based premium engine coolant, offering excellent corrosion protection formulated specifically for all Mitsubishi engines. (At temperature as low as -34c) and meets all Mitsubishi warranty requirements. Super long life coolant uses the optimum ion-exchange water which meets our strict factory fill requirement. No mixing required - Just fill Minimum Replacement Interval - 4 Years or 60,000km Mitsubishi Part Number Was MZ320130 now MZ321117
Water Pump Kit - GTO/3000GT
Water Pump Kit incl Gaskets Mitsubishi Part Number MD997643 MD971983 MD972005
Radiator - Mitsubishi GTO/3000GT
This radiator fits both Auto Gearbox and Manual Models. Manual Models - Don't use the built in Auto Box pipes. Also has correct Threaded inserts for the two temperature sensors to fit the 1991-1992 cars - leave blanked off if later car.
Mitsubishi Part Numbers MB605452 MB605453 MB605454 MB605455 MB660472 MB924242 MB924243 MB924244
