Dust Cap for Rear Single Piston Caliper Bleed Nipple - Mitsubishi GTO/3000GT Same one used on all Single Pot Rear calipers that use 7mm Bleed Screw and have 284mm Rear Discs For Caliper Exploded Diagrams Click HERE Mitsubishi Part Number MV026287
Bleed Nipple/Screw Rear Single Piston Caliper - Mitsubishi GTO/3000GT Same one used on all Single Pot Rear calipers that use 284mm Rear Discs For Caliper Exploded Diagrams Click HERE Mitsubishi Part Number MB928290
Bleed Screw/Bleed Nipple for Front Brake Caliper - Mitsubishi GTO/3000GT
Genuine Bleed Screws are Discontinued so this is an aftermarket copy
Location Fitted Shown HERE
Mitsubishi Part Number MA140271 MA151623
Bleed Screw/Bleed Nipple for Rear Twin Piston Brake Caliper Mitsubishi GTO/3000GT Genuine Bleed Screws are Discontinued so this is an aftermarket copy
Bolt to Brake Bias Valve/Proportioning Valve - MF240059
This Bolt fits various vehicles in the same place ie it bolts the Brake Bias Valve/Proportioning Valve to the bulkhead.
Mitsubishi Part Number MF240059
Brake Hose U Clip - Mitsubishi 3000GT/GTO Z15A Z16A 12 used on the vehicle (6 on front 6 on rear)
Choose From Genuine Mitsubishi or Aftermarket Copy Mitsubishi Part Number MA431825
Rear Single Piston Brake Caliper Grommit for Lower Slider Bolt - Mitsubishi GTO/3000GT Price is for ONE Lower Slider Bolt Rubber Grommit Exploded Diagram HERE Mitsubishi Part Number MB699587
Rear Brake Pad Clip Set - Mitsubishi GTO/3000GT (with 284mm Discs/Single Piston Rear Caliper)
These are generally fitted to early GTO's up to end of 09/1992 but are also fitted to Various Non Turbo Models after that date. Choose from Aftermarket or Genuine Mitsubishi Set For Exploded Diagram Click HERE Mitsubishi Part Number MR389622
Rear Brake Shoe Fitting Kit - Mitsubishi GTO/3000GT
Choose from Aftermarket Kit or Genuine Mitsubishi Parts
Exploded Diagram HERE
Mitsubishi Part Numbers MB520471 x 4 Pins 52964B MB520470 x 4 Springs for Pin 52376 MB857302 x 4 Locking Cups 52321 MB928874 x 2 Large Spring 52375 MB857298 x 2 Return Spring 52381B MB857299 x 2 Return Spring 52381C MA151648 x 2 U Shaped Retainer 52502 MA151647 x 2 Wave Shaped Washer 52957C
Lower Slider Bolt to Rear Single Piston Brake Caliper - Mitsubishi GTO/3000GT Price is for ONE Lower Slider Bolt
Exploded Diagram HERE Mitsubishi Part Number MB699585
Seal Kit for Rear Twin Piston Caliper - Mitsubishi GTO/3000GT
Aftermarket Seal Kit as Mitsubishi Part is Discontinued
Mitsubishi Part Number MB950677
Front Brake Caliper Seal Kit - Mitsubishi GTO/3000GT All models with 4 Piston Front Calipers
Mitsubishi Part Number MB857261 4605B862
40mm Upper Piston Front Brake Caliper - Mitsubishi GTO/3000GT (Actual size 40.4mm)
Yes the Upper Piston is slightly smaller than the Lower one.
Discontinued by Mitsubishi - Supplied as Aftermarket Part
Mitsubishi Part Number MB857235
43mm Lower Piston Front Brake Caliper - Mitsubishi GTO/3000GT (Actual size 42.8mm)
Yes the Lower Piston is slightly Larger than the Upper one.
Mitsubishi Part Number MB857236

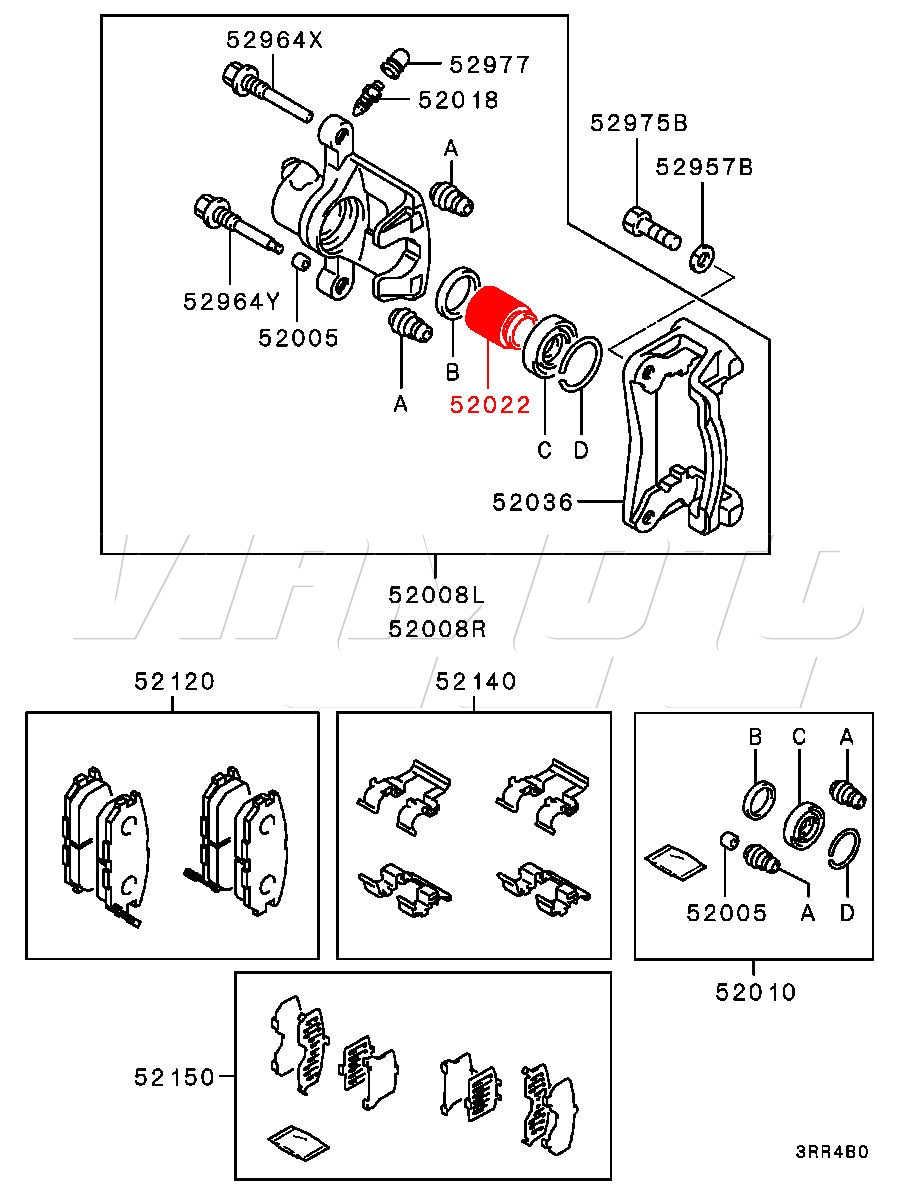

Piston for Single Piston Rear Brake Caliper - Mitsubishi GTO/3000GT One Rear Caliper Piston (You need 2 to do both Rear Calipers) For Exploded Diagram Click HERE Mitsubishi Part Number MB857613
Piston for Rear Twin Piston Brake Caliper - Mitsubishi GTO/3000GT
Price is for ONE Piston 2 Required per Twin Piston Rear Caliper
Mitsubishi Part Number MB950660
Front Brake Caliper Pins and Pad Clips - GTO/3000GT 4WD Z15A/Z16A Aftermarket Kit from USA This fits all models both Z15A & Z16A both Twin Turbo & Non Turbo. Mitsubishi Part Numbers MB857246 Caliper Pins MR389607 Pad Clips and Pin Wires
Rebuild Kit for Rear Single Piston Brake Caliper - Mitsubishi 3000GT/GTO Complete Rear Caliper Seal Kit - All the seals required to Rebuild the Single Piston Rear Caliper. Exploded Diagram HERE Mitsubishi Part Number MB857612 MB950202 now 4605B985
HandBrake Shoes - Parking Brake Shoe Set - Mitsubishi GTO/3000GT Complete set of 4 Shoes. Choose from OE Mitsubishi or Aftermarket Parts Exploded Diagram HERE Mitsubishi Part Numbers MR391631 MB950212 MN102635 MB857295 x 2 MB857296 x 1 MB857297 x 1 MB668906 x 2 MB668907 x 1 MB668908 x 1 MB129854 x 2 MR129855 x 1 MR129856 x 1
