Front Bottom Arm Rear Bush - Mitsubishi FTO (Excl GPvR) Fits ALL Non GPvR FTO's pre 1997 non facelift Exploded diagram HERE Mitsubishi Part Number LH = MR102655 or MB871429 RH = MR102656 or MB871430

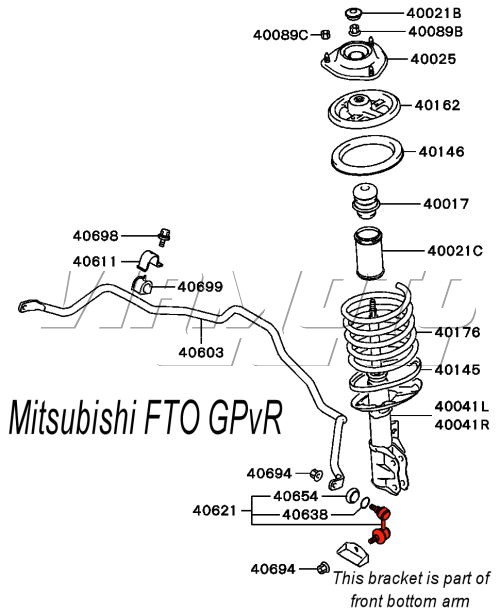

Front Droplinks - Mitsubishi FTO GPvR Models ONLY - PAIR Front stabiliser links droplinks suspension links whatever you call them, these ones are for Mitsubishi FTO GP version R ONLY Exploded Diagram HERE Mitsubishi Part Number LH MR316368 4056A015 RH MR316369 4056A016
Mitsubishi FTO (1994 - 2000) 1.8 & 2.0 Superflex - Front Anti Roll Bar to Chassis Kit of 2 Bushes, all except GPvR **please measure bar diameter Nearly Always 16mm = OEM MR197005 Except GPvR which is 20mm = OEM MB844455 See GPVR-POLY Bushes or GPVR-Standard Bushes 18mm is for some aftermarket bars Superflex Part Number = SF261-1700K
Rear Dogbone Arm -T Bar Bush - Mitsubishi FTO
These are sold in singles - Each Dogbone Arm uses One of these So you need 4 in total to Replace all the T Bar Bushes on the Dogbone Arms
Mitsubishi Part Number These are NOT sold separate by Mitsubishi

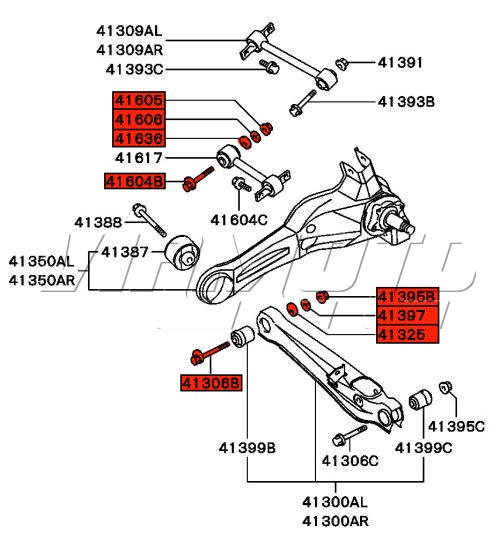

Rear Tracking/Camber Bolt - Mitsubishi FTO These adjust both tracking and camber on the Rear of your FTO See HERE for locations used on the FTO Price is per bolt Mitsubishi Part Numbers Camber Bolt MB809335 or MR333373 Offset Washer MB809338 or MR171026 or MR333376 Spring Washer MS450044 Nut MF430123 now MU430003
Rear Anti Roll Bar Bushes 18mm - Mitsubishi FTO Mivec models and Facelift GX Models excluding GP Version R (If your not sure Measure the Bar Diameter) Pair of 18mm Rear ARB Bushes See Exploded Diagram and information HERE Mitsubishi Part Number MR197003
Superflex - Mitsubishi FTO 2.0 V6 GPvR Models ONLY Superflex - Front Anti Roll Bar to Body Kit of 2 Bushes **please measure bar diameter but normally a 20mm bar = OE Part Number MB844455 Superflex Part Number = SF259-1572K
Rear Trailing Arm Bush - Mitsubishi FTO Fits all models regardless of engine size. Same part used either side of the vehicle. SOLD as a Single Bush - Order 2 to do Either Side of Vehicle Location shown HERE Mitsubishi Part Number MR102063 MB809262

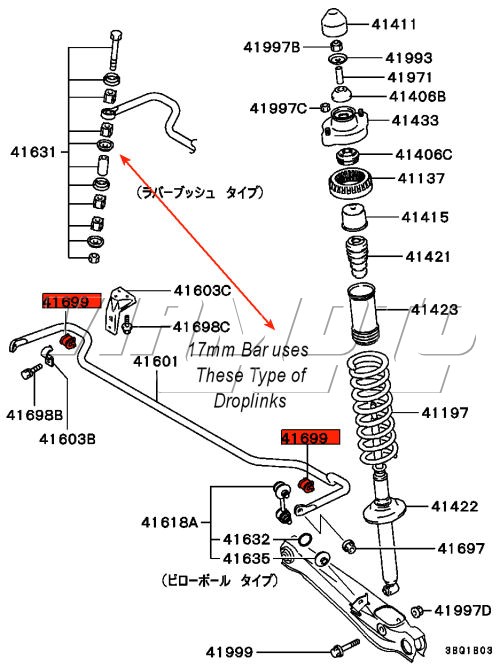

Rear Anti Roll Bar Bushes 17mm - Mitsubishi FTO Non Mivec pre 1997 non facelift models Pair of 17mm Rear ARB Bushes
See Exploded Diagram and information HERE
Now supplied as Ralliart Ones RA197002K1 as Mitsubishi have Discontinued the Standard Ones. (While Stocks Last) Mitsubishi Part Number MR197002
Mitsubishi FTO (1994 - 2000) 1.8 & 2.0 Superflex - Rear Anti Roll Bar to Body Kit of 2 Bushes for 27mm Bracket **please measure bar diameter Usually 17mm for Non Mivec Models - Excluding 97 on Models = MR197002 18mm For Mivec GPX Models & 97 on Non Mivec Models = MR197003 20mm 1826-20K GPvR Models = MR333834 Superflex Part Number = SF261-2004K or SPF1826-20K for GPvR

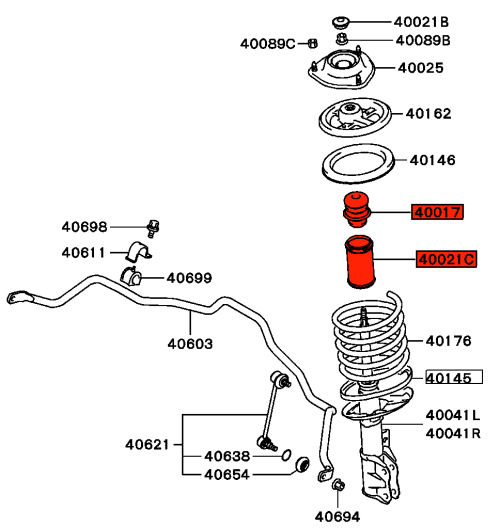

Front bump Stop and Dust Cover Set - Mitsubishi FTO Choose from Aftermarket or OEM Mitsubishi Items Exploded Diagram HERE Kit Contains :- 2 x Bump Stops and 2 x Dust Covers Mitsubishi Part Number MB518957 or MR333831 MB303070

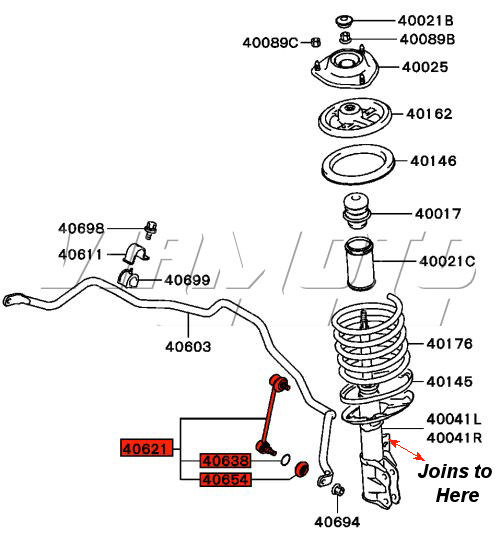

Front Droplinks - Suspension Links - PAIR - Mitsubishi FTO all models except GPvR Front suspension link also called a Droplink, these are what make the horrible rattling sound from the front when they are badly worn. These join the Shock absorber to the anti roll bar. See HERE Mitsubishi Part Number MR131680 MR272116 4056A031
Rear Droplinks - Suspension Links - Mitsubishi FTO 2.0 Mivec Models & ALL Facelift V6 after 1997 PAIR Rear stabiliser links also called droplinks or suspension links. These attach the rear anti roll bar to the rear lower arm. See HERE Current Stock is Silver in Colour Mitsubishi Part Number MB809354 4056A021

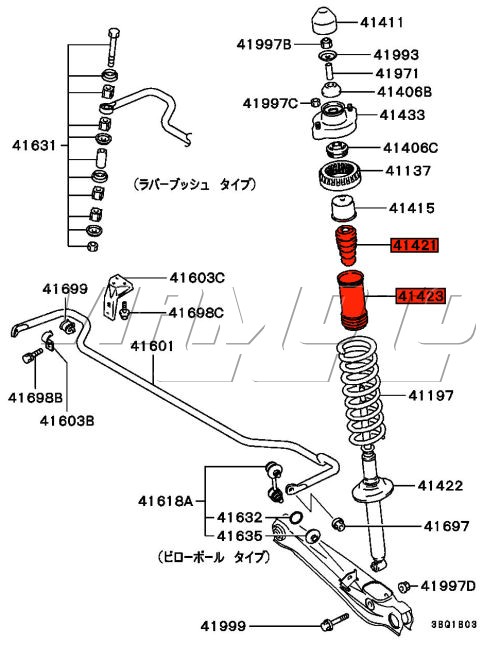

Rear Bump Stop and Dust Cover Set - Mitsubishi FTO Choose from Aftermarket or OEM Mitsubishi Items Exploded Diagram HERE Kit Contains :- 2 x Bump Stops and 2 x Dust Covers Mitsubishi Part Number Bump Stop MB809285 Dust Cover MB809284
Rear strut top mount repair kit - Mitsubishi FTO Contains Sleeve, washer, upper rubber bush & lower rubber bush All x 2 Enough to repair BOTH rear strut top mounts - See HERE Choose from Aftermarket Parts or Genuine Mitsubishi Mitsubishi Part Numbers Sleeve MB871748 Washer MB242360 Upper Bush MR223332 MB242358 MR130231 Lower Bush MR223333 MB338618 MR130230
Bolt Front Subframe/Crossmember to Body - Mitsubishi FTO
Price is for ONE Bolt - Two Required Per vehicle in this location
Location Used Shown HERE
Mitsubishi Part Number MR102863
Shortened Rear Droplinks - Suspension Links - Mitsubishi FTO 2.0 ALL Mivec Models & ALL Facelift V6 after 1997 PAIR Rear stabiliser links also called droplinks or suspension links. These attach the rear anti roll bar to the rear lower arm. These are shorter than the originals for lowered vehicles especially those on coilovers. See HERE Mitsubishi Part Number MB809354 4056A021
Rear Droplinks - Suspension Links - Pair - Mitsubishi FTO NON Mivec Models Both 1.8 & 2.0 Non Mivec engined models. Mostly Pre 1997 Choose from Dropdown Menu
Sold in 1 Kit of 2 Droplinks. You need 1 Kit per vehicle. See HERE for Location fitted. Mitsubishi Part Number MR178796 MB527385 MB598098

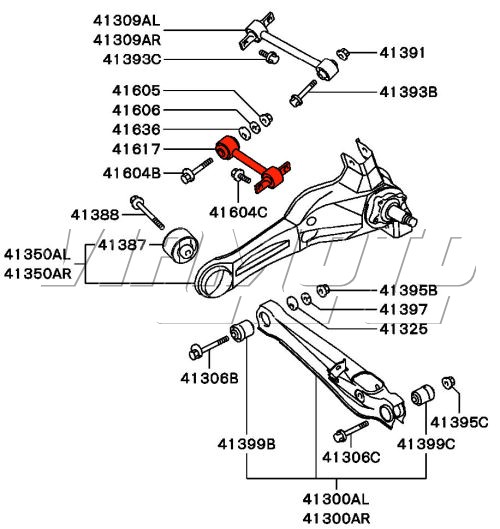

Rear Lateral Arm - Short Dogbone - Mitsubishi FTO
ONLY Available as Aftermarket Copy as Mitsubishi No Longer Supply Exploded Diagram HERE Mitsubishi Part Number MR197603 MR197031
Rear Bottom Arm Outer Bush - Mitsubishi FTO This bush takes a lot of punishment and can cause handling issues when worn It is a Spherical bearing See one cut open HERE You should be able to move it, it should NOT be solid.
Price is for ONE (You need 2 per vehicle) Exploded Diagram HERE Mitsubishi Part Number MR197915 4113A062

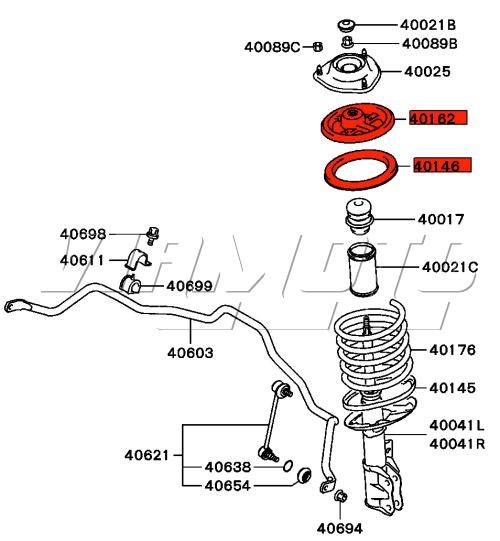

Front Upper Spring Pan and Rubber Insulator - Mitsubishi FTO The Upper Spring Pan comes with the Rubber Insulator glued to it ready to fit. Exploded diagram HERE Mitsubishi Part Number Spring Pan MR272102 MR103532 Rubber Insulator MR103992

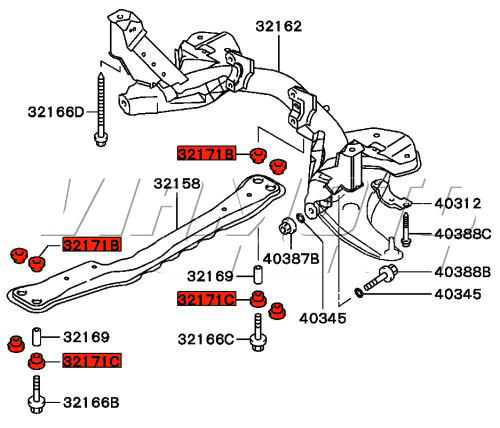

Crossmember Bush Kit - Cradle Bush Kit for Mitsubishi FTO built 10/1995 onwards These 8 rubber bushes when worn can cause a large clunk on acceleration and deceleration. Exploded Diagram HERE Mitsubishi Part Numbers in Kit MR198875 x 4 MR198876 x 4 VM0000132 - RN-VM-132
Crossmember Bush Kit - Cradle Bush Kit for Mitsubishi FTO built up to 10/1995 These 8 rubber bushes when worn can cause a large clunk on acceleration and deceleration. Exploded Diagram HERE Mitsubishi Part Numbers in Kit MB844445 x 4 MB844446 x 4 VM0000131 - RN-VM-131

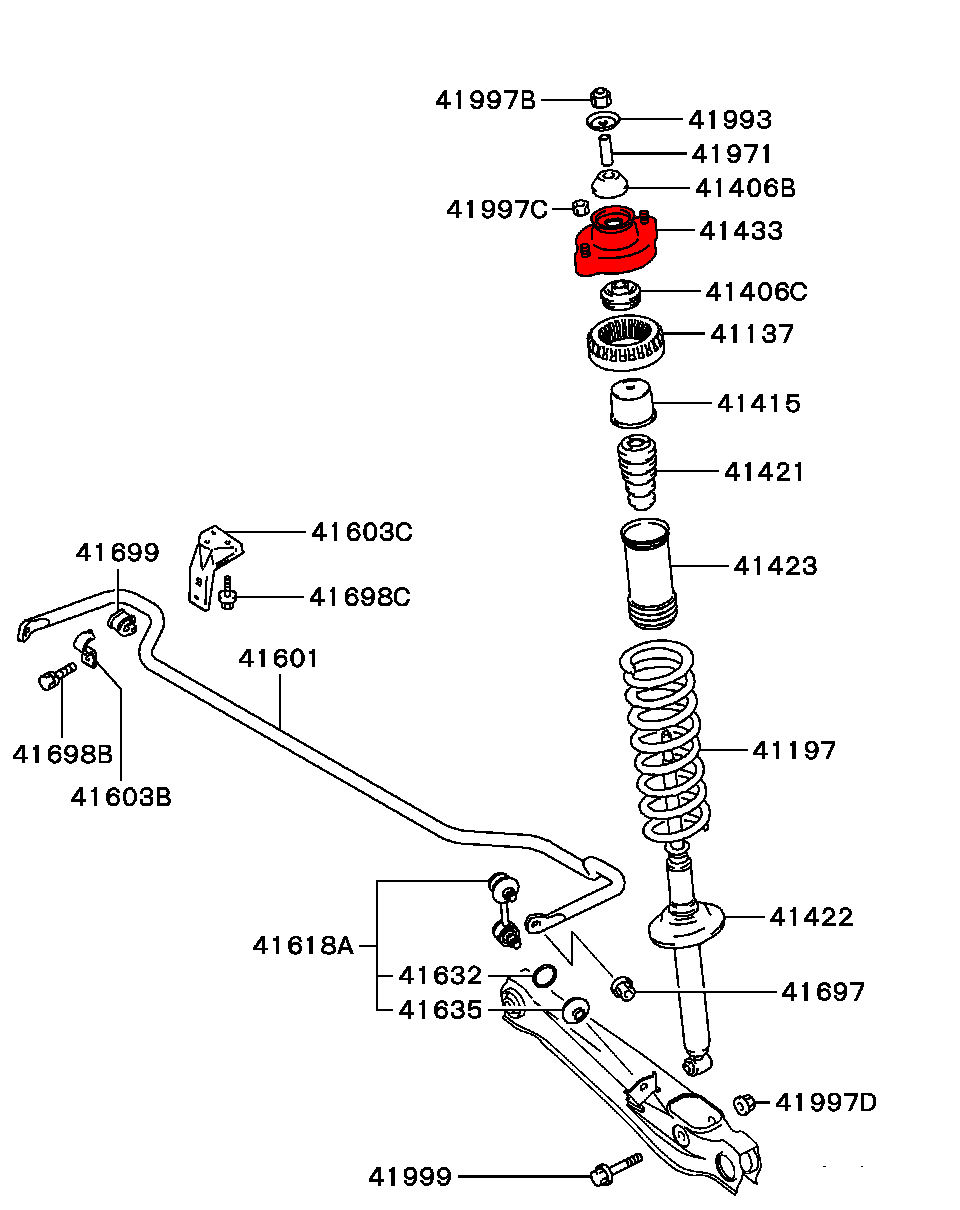

Rear Upper Metal Top Mount - Mitsubishi FTO (ALL) Rear upper mount only - Can and does rust and can require replacing. Exploded Diagram HERE Mitsubishi Part Number MB910847 MN100048 4140A513 MR171927
Made by Spring-Loaded/Viamoto Quality Pair of Fast Road/Race Shortened Adjustable Drop Links To Fit Front of your FTO (NOT GPvR Models) Length Min 185mm - Max 230mm RN-ADJ120C Every part is available separate so when they finally fail you can buy each part required without having to buy a full new set.
Front Strut Top Mount - Mitsubishi FTO This can cause knocking from front suspension as the bearing wears. Will also need changing when the rubber starts cracking and splitting away from the metal part of the mount. Exploded Diagram HERE

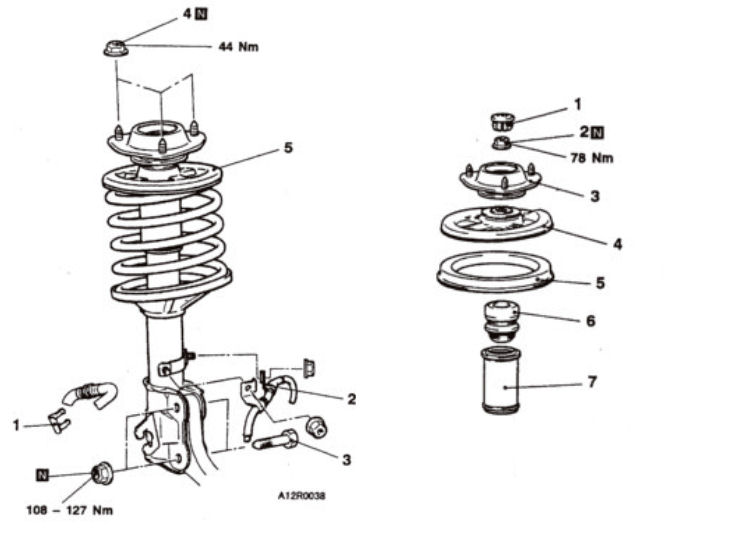

Torque Settings HERE
Price is for ONE
Mitsubishi Part Number MR131420 MR316796
Mitsubishi FTO (1994 - 2000) 1.8 & 2.0 Superflex - Rear Lower Arm Inner Kit Superflex Part Number = SF261-1573-2KSS
Mitsubishi FTO (1994 - 2000) 1.8 & 2.0 ALL MODELS REGARDLESS OF YEAR Superflex - Front Lower Arm Front Kit Superflex Part Number = SF261-1160KSS
Front Bottom Arm Rear Bush including bracket - Mitsubishi FTO Incl GPvR Fits ALL FTO's post 1997 facelift Exploded diagram HERE Mitsubishi Part Number LH = MR130235 RH = MR130236
DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI
