Sidelight Bulb in Lower Front Lamp - Mitsubishi FTO

See HERE for location fitted

Mitsubishi Part Number
MS820090

Side Indicator Bulb - Mitsubishi FTO
This is the one located in the wing.

See HERE for location fitted

Mitsubishi Part Number
MS820090

Centre Upper Brake Light Bulb - Mitsubishi FTO
This is the one shown through rear windscreen.

See HERE for location fitted

Mitsubishi Part Number
MS820090

Rear Number Plate Bulb - Mitsubishi FTO
These are the 2 in the upper part of rear bumper.

See HERE for location fitted

Mitsubishi Part Number
MS820090

Front Indicator Bulb - Mitsubishi FTO

Locations Fitted HERE

Mitsubishi Part Number
MS820044
MS820046

Rear Indicator Bulb - Mitsubishi FTO

Locations Fitted HERE

Mitsubishi Part Number
MS820044

Rear Reversing Light Bulb - Mitsubishi FTO

Locations Fitted HERE

Mitsubishi Part Number
MS820044

Rear Brake Light/Tail Light Bulb - Mitsubishi FTO
Also called a Stop/Tail Bulb
Locations fitted shown HERE

Mitsubishi Part Number
MS820038

Front Fog Lamp Bulb - Mitsubishi FTO

Location Shown HERE

Mitsubishi Part Number
MS820964

Boot Courtesy Light Bulb - Mitsubishi FTO

Located on the underside of parcel shelf section in boot.
See HERE

Mitsubishi Part Number
MS820071

Headlamp sidelight bulb.
If your headlamps had the side light bulbs as part of the headlamp then this is the bulb.
Quite often the sidelights were removed from the lower lamp and a hole was drilled into the
headlamp in which case this 'might' be the bulb check.

This is the correct Genuine Mitsubishi 12v 8w Bulb see HERE for location

Mitsubishi Part Number
MS820093

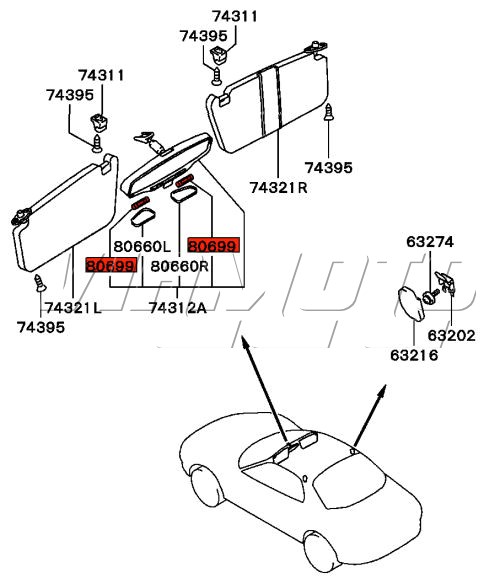

Interior Courtesy Light Bulb - Mitsubishi FTO

Located within the rear view mirror
See HERE

Mitsubishi Part Number
MR233713

Dipped Beam 9006 HB4 Bulb - Mitsubishi FTO
Dipped beam bulb, this is the bulb that you drive on most of the time.
ie the one that is on before you switch the main full beam on.
The dipped beam bulb is the outer headlamp bulb as shown HERE

Mitsubishi Part Number
MS820960

Dipped Beam 9005 HB3 Bulb - Mitsubishi FTO
Dipped beam bulb, this is the bulb that you drive on most of the time.
ie the one that is on before you switch the main full beam on.
The main beam bulb is the inner headlamp bulb as shown HERE

Mitsubishi Part Number
MS820959

Main Fuse for Mitsubishi FTO

Choose from 60, 80 or 100 Amp

Exploded Diagram HERE

Mitsubishi Part Number
MU840020 60 Amp
MU840021 80 Amp
MU840022 100Amp

Lefthand Courtesy Light Switch - FTO
ie Passenger side

For Location of Switch Click HERE

Mitsubishi Part Number
MB818520

Righthand Courtesy Light Switch - FTO
ie Drivers Side

For Location of Switch Click HERE

Fix for this Switch HERE

Mitsubishi Part Number
MB698713

Side Repeater - Side Indicator - Mitsubishi FTO

See exploded diagram HERE

Mitsubishi Part Number
MB929911

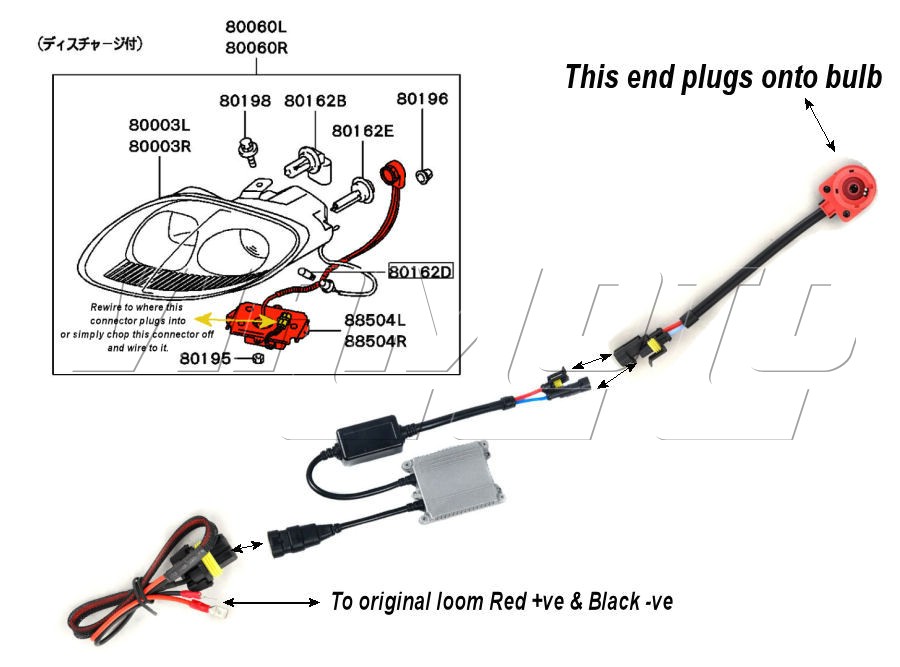

H.I.D. Ballast Replacement Kit - Mitsubishi FTO

This kit will replace your faulty FTO OEM Ballast.
Simply plug together and rewire live and earth that went to your original
ballast unit to this. Unit supplied may vary from that shown.
NOTE :- This ballast is universal and may vary in size and shape to the original,
therefore it may need to be fitted into a different position to the original one.
Fitting Instructions HERE

We do not accept any liability for any damage to electrical or electronic equipment caused by you using these instructions.
You do so at your own risk.

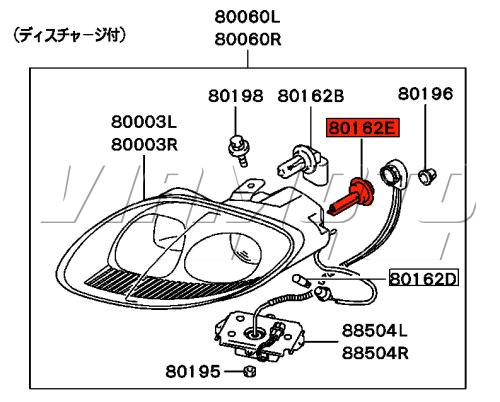

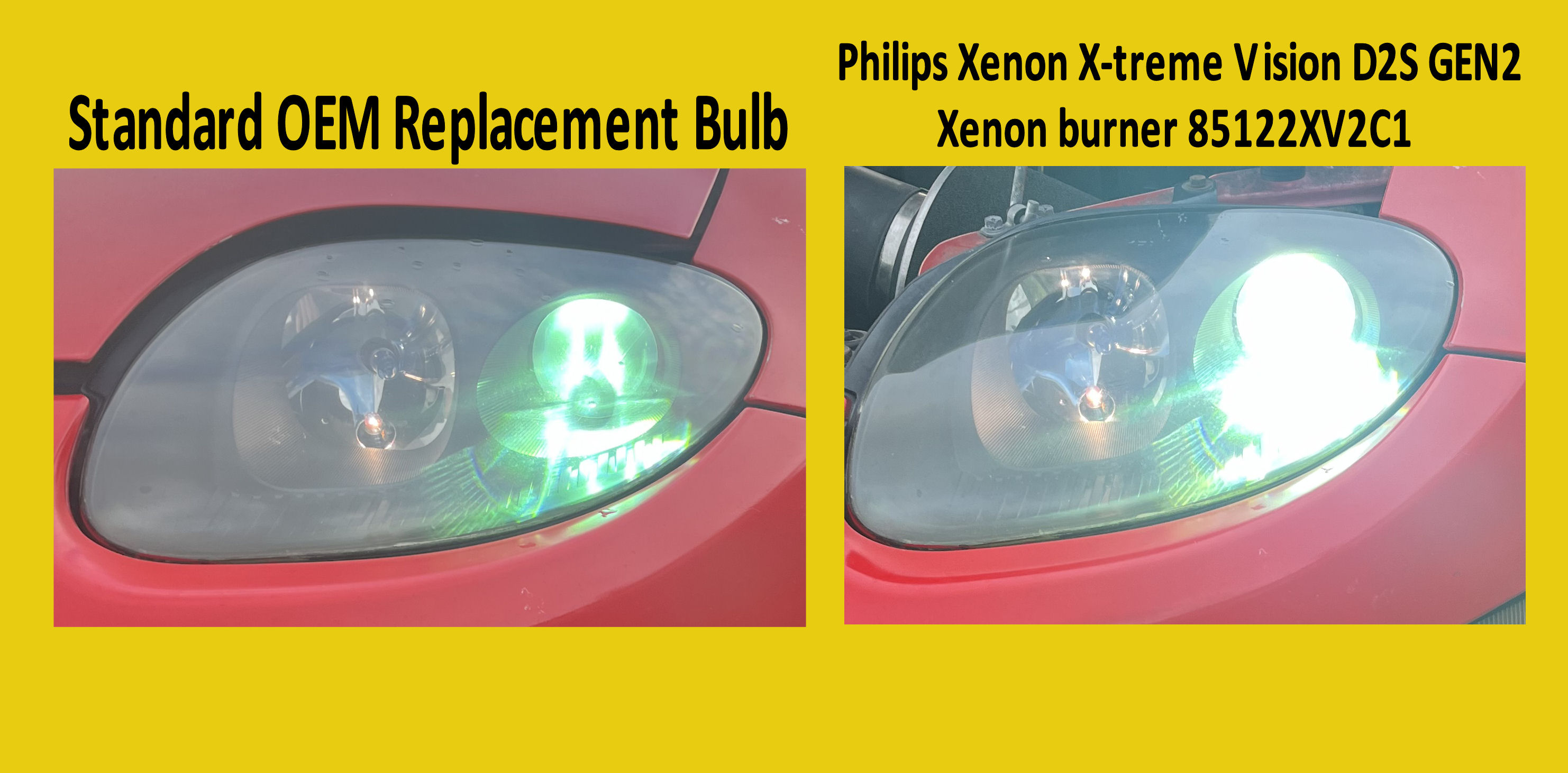

H.I.D Headlight bulb for Mitsubishi FTO
If you are lucky enough to have got an FTO with factory fitted HID Headlamps and you blow a bulb then this is what you need
Please make sure it's not one of the ballast control units as they are more likely to fail than a H.I.D. Bulb
Location Shown HERE

Mitsubishi Part Number
MU820005
D2S

Hazard Warning Switch - Mitsubishi FTO

Location on dashboard shown HERE

Mitsubishi Part Number
MR148783

Rear Fog Light Switch - FTO

This part is NOT fitted as a factory part.
This is from another car in the mitsubishi range just so the correct style switch is used.

Fitting Instructions HERE
However we accept no responsibility for errors or omissions.
Use them at YOUR Risk.

Mitsubishi Part Number
MR114085

Front Fog Light Switch - FTO

Click HERE for location on Dash

Mitsubishi Part Number
MR148785

Front Indicator Unit - Mitsubishi FTO Facelift 1997 Onwards

Choose from LH or RH

Mitsubishi Part Number
MR275275 Lefthand
MR275276 Righthand

DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI

Front Lefthand Indicator/Side Light Unit - Mitsubishi FTO built up to 01/1997
This does NOT have a fog light as part of the unit.
Location fitted shown HERE

Mitsubishi Part Number
MR178787

Front Righthand Indicator/Side Light Unit - Mitsubishi FTO built up to 01/1997
This does NOT have a fog light as part of the unit.
Location fitted shown HERE

Mitsubishi Part Number
MR178788

Rear Light Cluster - Lefthand - Mitsubishi FTO

Mitsubishi Part Number
MR178791

Rear Light Cluster - Righthand - Mitsubishi FTO

Mitsubishi Part Number
MR178792

Front Righthand Indicator/Fog/Side Light Unit - Mitsubishi FTO built up to 01/1997

Location fitted shown HERE

Mitsubishi Part Number
MR178790

Front Lefthand Indicator/Fog/Side Light Unit - Mitsubishi FTO built up to 01/1997

Location fitted shown HERE

Mitsubishi Part Number
MR178789
