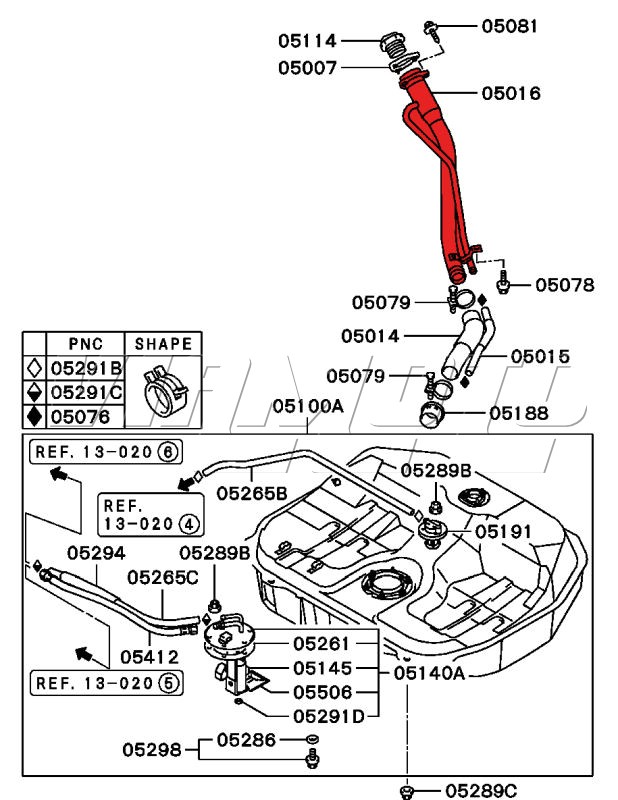

Fuel Filler Neck Large Bottom Hose to Tank - FTO See exploded diagram for location. Same part used on all models of FTO regardless of engine. Exploded diagram HERE Mitsubishi Part Number MR134436
DISCONTINUED NO LONGER SUPPLIED BY MITSUBISHI
Noise Condenser - FTO 2.0 V6 DE3A This is what surpresses any ignition interference you would hear on the radio. If you have crackling in time with engine revs then this could be the culprit. Location Diagram HERE Mitsubishi Part Number MB543146
Mivec Rocker Arm Spring - Mitsubishi FTO - Mivec Models This part of the Mivec valve train and helps dampen the thump of the valve train and acts as a sort of return spring. People do mistake them for a hydraulic tappet but they are NOT. They are simply a spring inside a housing. Exploded Diagram HERE Mitsubishi Part Number MD194250
DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI
Battery Tray - Mitsubishi FTO These are prone to corrsion - spruce up your engine bay Mitsubishi Part Number MR153320
Viamoto Mivec Valve Clearance Adjusting Wrench - Mitsubishi FTO 2.0 V6 Mivec Can also be used on other Mitsubishi Mivec Engines eg Pajero EVO Mivec Engine
Used to undo the nuts so you can adjust the valve clearances This is used in conjunction with MB991478 & MB99179 Instructions to do the job HERE Mitsubishi Part Number MB991477 MB991477V MB991477Copy
Fuel Filler Cap - Mitsubishi FTO
Choose from Original Mitsubishi or Aftermarket Lockable Exploded Diagram HERE Mitsubishi Part Number MN106160 MR271610 MB595538
Alternator Tensioner Pulley - FTO 2.0 V6 DE3A These are very prone to wear. To check simply rock top to bottom like a wheel bearing, any more than about a mm or 2 play and it's on it's way out. Remove belt and spin it to make 100% sure, if it's noisy change it. Exploded Diagram & Belt Layout - HERE RN-STD-51 Mitsubishi Part Number MD303884 MD359746
Throttle Body Seal and Gasket Kit - Mitsubishi FTO 2.0 V6 DE3A Complete kit comprising of the parts listed below If your car is a Facelift 97 on vehicle just ask which gasket was fitted to you car before ordering or just provide chassis number with order and we will provide the correct one. Mitsubishi Part Numbers Dust Cap/Cover MD614532 = 07793 Throttle Screw MD614948 = 07708S Screw O Ring MD608806 = 07788S Housing Seal MD614680 = 07729 Stepper O Ring MD614417 =07728 Choose which Throttlebody to Inlet Manifold Gasket MD184662 = 07710 Majority of V6 FTO's MD322990 = 07710 (Only on certain 97 on Facelift V6 FTO's)
NGK Laser Platinum Spark Plugs X 3 - FTO 2.0 V6 DE3A Non Mivec Mitsubishi use these as the standard spark plug in the rear bank. Simply the best long life spark plugs available. Some 60,000 + Miles Laser Platinum® spark plugs provide high ignitability and longer service life. Dual platinum surfaces ensure slow wear rate providing stable idle, superior anti-fouling, improved fuel efficiency and lower emissions. See HERE for PDF regarding NGK Plugs. Mitsubishi Part Number MD313443
Rear Engine Mount to fit Mitsubishi FTO V6 DE3A Manual models EXCL GPvR Exploded Diagram HERE Use THIS HERE to choose the correct mounts for your FTO V6
This is now supplied as an Aftermarket Version as Mitsubishi Have Discontinued this Mount Mitsubishi Part Number MB949166
Front Engine Mount to fit Mitsubishi FTO V6 DE3A ALL Tiptronic/Automatic Models built up to 31st January 1997 Exploded Diagram HERE Use THIS HERE to choose the correct mounts for your FTO V6 Mitsubishi Part Number MR131296
Surge Tank Air Temperature Sensor also called Air Intake Temperature Sensor for Mitsubishi FTO GPX GPvR 2.0 V6 DE3A built 01/1998 onwards A faulty one can cause emissions problems. Should show up on engine fault code read. How to Check it HERE Exploded Diagram HERE Location Diagram HERE Mitsubishi Part Number MD326170
Cambelt Special Tools Fitting Kit - Mitsubishi FTO 1.8/2.0 Complete kit of special tools for changing the cambelt on an FTO (More than you need)
Made exclusively for Viamoto
KMH to MPH Converter & Delimiter - FTO Converts your car to read in MPH and KMH and it clocks miles on the odometer. This also has the effect of delimiting the car so no annoying 112mph speed restriction. Download the Fitting Instructions HERE (Word Doc)
Rear Engine Mount to fit Mitsubishi FTO V6 DE3A Tiptronic/Automatic models built up to 31st January 1997 Exploded Diagram HERE Use THIS HERE to choose the correct mounts for your FTO V6 Mitsubishi Part Number MR223674
Water Pump - FTO 2.0 V6 DE3A
Quality Replacement Water Pump. Some manufacturers will supply a gasket as the mating surface is flat others use a groove round the edge for gasket sealant. Mitsubishi Part Numbers MD302010 MD180580
NGK Laser Platinum Spark Plugs X 3 - FTO 2.0 V6 DE3A Mivec Mitsubishi use these as the standard spark plug in the rear bank. Simply the best long life spark plugs available. Some 60,000 + Miles Laser Platinum® spark plugs provide high ignitability and longer service life. Dual platinum surfaces ensure slow wear rate providing stable idle, superior anti-fouling, improved fuel efficiency and lower emissions. See HERE for PDF regarding NGK Plugs. Mitsubishi Part Number MS851347
Crank Oil Seal - Gearbox Side for Mitsubishi FTO 2.0 V6 DE3A This could be the culprit if the clutch has oil on it. Location Diagram HERE Mitsubishi Part Number MD359158 MD150161 MD174940
Crank Angle Sensor for Mitsubishi FTO 2.0 V6 DE3A This can get wiped out by the auxilliary belts jumping off the crank pulley or the crank pulley falling apart. Exploded Diagrams HERE Mitsubishi Part Number MD303088
K & N Panel filter to replace your standard filter in the airbox of your Mitsubishi FTO 2.0 V6 DE3A Fits all FTO Regardless of engine size as long as you have not got an Induction kit fitted. Designed to Increase Horsepower & Acceleration
K&N Million Mile Limited Warranty® Washable and Reusable
K & N Part Number 33-2072
Throttle Position Sensor - FTO 2.0 V6 DE3A Remember that there are 2 different ones fitted to V6 FTO's Check which part number is fitted to your vehicle BEFORE ordering. For an Exploded Diagram of inlet manifold and Throttle body Click HERE For Without Traction control Click HERE For With Traction control Mitsubishi Part Number MD614735
NGK Iridium Spark Plugs IX - Set of 6 for your FTO 2.0 V6 DE3A Non Mivec
The Spark Plug Serious Car Fans Rely On.
Designed specifically for the performance car fanatic. NGK Iridium IX offers better spark, increased throttle response and superior anti fouling characteristics which gives smoother acceleration, high fuel efficiency and durability. See HERE for PDF regarding NGK Iridium Plugs. NGK are market leaders and offer the Ultimate in design, technology and performance.
NGK Iridium Spark Plugs IX - Set of 6 for your FTO 2.0 V6 DE3A Mivec
Power Steering Tensioner Bearing Pulley - Mitsubishi FTO 2.0 V6 DE3A This tensions the Power steering / Air conditioning belt. It is very prone to the bearing failing due to it's proximity to the road. To check it reach in far around back of drivers wheel and grab the pulley and rock top to bottom any more than 2mm of play and it's on it's way out. They do have a little play even when brand new (They are designed to) Exploded Diagram HERE Belt Layout diagram HERE Mitsubishi Part Number MD366344 Koyo
Lefthand Engine Mount to fit Mitsubishi FTO V6 DE3A ALL 5 Speed Tiptronic/Automatic Models built AFTER 31st January 1997 Including 5 Speed Tiptronic/Automatic GPvR Model Exploded Diagram HERE Use THIS HERE to choose the correct mounts for your FTO V6 Mitsubishi Part Number MR297832
Main Crank Bearings for Mitsubishi FTO 2.0 V6 DE3A Use this HERE and HERE to choose the correct main crank bearing size.
As the majority of these are now Discontinued we are supplying a Full Set of Standard Aftermarket Main Bearings from Japan
Mitsubishi Part Numbers MD189832 MD189833 MD189834 MD189835 MD189836 MD307788 MD307790 MD307791
Fuel Vapour Canister for FTO 2.0 V6 DE3A This charcoal canister absorbs fuel vapours. The purpose of the canister is both to eliminate emissions, and also to increase fuel efficiency. Change at 70,000 miles Location of Fuel Vapour Canister shown HERE Mitsubishi Part Number MB868875 DISCONTINUED - NO LONGER SUPPLIED BY MITSUBISHI
NGK Laser Platinum Spark Plugs X 6 - FTO 2.0 V6 DE3A Non Mivec Mitsubishi use these as the standard spark plug in the rear bank but we recommend that you fit them all round. Simply the best long life spark plugs available. Some 60,000 + Miles Laser Platinum® spark plugs provide high ignitability and longer service life. Dual platinum surfaces ensure slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions. See HERE for PDF regarding NGK Plugs. Mitsubishi Part Number MD313443

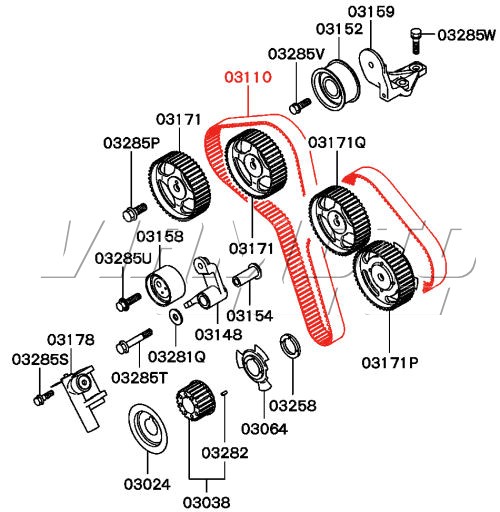

Top quality Cambelt Timing Belt for your FTO V6 2.0 Non Mivec Cambelt Layout Diagram HERE Mitsubishi Part Numbers MD179620 MD197149
