Split Pin for Driveshaft Nut - Fits ALL FTO's Fits Front Driveshaft Castle Nuts
Mitsubishi Part Number MF472085
Longer Wheel Stud for Mitsubishi FTO both 1.8 & 2.0 V6 These are usually used either when fitting wheels which have the wrong offset for the car and so you have to use a wheel spacer or widening the track of the vehicle using wheel spacers. Dimensions against OEM Stud are shown HERE Sold in Singles You need 5 per hub so 20 per car. Mitsubishi Part Number MB911495
Circlip for Inner CV Joint - FTO 2.0 V6 & 1.8 DE3A If your inner CV joint can easily be pulled out of the gearbox by hand or you have gearbox oil on the floor this could be the culprit. If the joint is not held in tight then it's going to leak & potentially do damage over time. Mitsubishi Part Numbers MB160387 - 27mm MB620144 - 29mm
Spring Clip for OE Wheel Centre Cap - FTO Mitsubishi Part Number MB057268
Wheel stud for Mitsubishi FTO These are easily damaged by overtightening. Overtightening pulls the threads in such a way that when unscrewed to remove it drags the threads up the shaft and either sticks solid or shears the stud off. Mitsubishi Part Number MB911495
Drive Shaft Outer Lock Washer - Mitsubishi FTO - ALL
Used on both Front Driveshafts - So 2 used in total on vehicle
Mitsubishi Part Number MB109025
Rear Hub Nut Dust Cover - Mitsubishi FTO Location shown HERE Mitsubishi Part Number MB515405
Drive Shaft Castle Nut - Mitsubishi FTO - ALL
Used on Both Front Driveshafts - So 2 in total used on vehicle
Mitsubishi Part Number MB109029
Front Outer C.V. Boot Kit - Mitsubishi FTO 2.0 V6 DE3A & FTO 1.8 4Cyl DE2A Mitsubishi Part Number MR232401

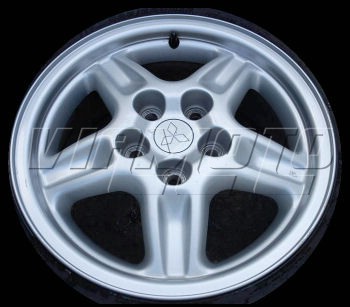

Centre Cap for OE Wheels - Mitsubishi FTO
Price is for ONE Cap Centre cap fits THIS type of Wheel Mitsubishi Part Number MB816391

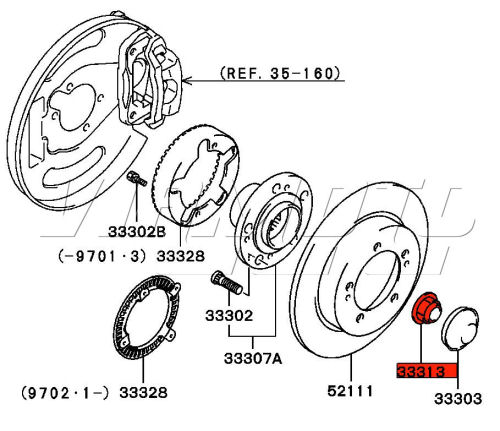

Rear Hub Centre Locking Nut - ALL FTO Models Thread: M20-1.5; Hex Size: 30mm; Height: 10mm Rear; One-Time-Use Spindle Hardware - It is recommended to replace every time they are removed - Torque to 172nm when fitting Exploded Diagram HERE Mitsubishi Part Number MB584600
Complete Inner CV Boot Kit for Mitsubishi FTO both 2.0 V6 & 1.8 4Cyl. Common MOT Failure - If not fixed the bill for a new CV joint is very expensive. Mitsubishi want over £ 50.00 for one of these !!!!!! CV Boot Clips and Grease. Mitsubishi Part Number MR232221
Front Wheel Bearing Kit - Mitsubishi FTO 1.8 4Cyl DE2A Front Wheel Bearing Kit - Mitsubishi FTO 2.0 V6 DE3A See HERE for Exploded Diagram
INSTRUCTIONS HERE Mitsubishi Part Number MB303875 Outer Oil Seal MB303865 Bearing MB303868 Snap Ring MB573309 Inner Oil Seal MF472085 Split Pin
Locking wheel nut fits original equipment alloys wheels that were fitted to FTO's See HERE for Wheel Style McGard's easy to use wheel lock works like a normal wheel nut, but requires a special tool fit and removal. Its design allows for an unlimited number of different computer generated lock and key patterns. This unique wheel lock system is continually being refined and improved upon. Locks are made in the United States and in Germany to meet or exceed O.E.M. standards for safety and durability. Presently, McGard is an Original Equipment wheel lock supplier to over 30 car lines around the world. Compare our features and you'll see why. Give your car the best protection it can get from wheel & tyre theft - 24 hours a day, mile after mile. Specs Part Number 21156SU Thread Size M12x1,5 Seat Type = Flat 15/35mm Hex 21 mm EAN 4034535211569
Outer CV Joint Kit - Without ABS - Mitsubishi FTO Without ABS Ring 25 Outer Splines 23 Inner Splines Mitsubishi Part Numbers MR145814 MR145820 MR165064 MR165068 MR196436 MR276836
Outer CV Joint Kit - With ABS - Mitsubishi FTO Examine to make sure it's the same before fitting to shaft. Remember to remove the C snap ring from end of shaft before test fitting item. With ABS Ring 25 Outer Splines 23 Inner Splines 43 Tooth ABS Mitsubishi Part Numbers MR145814 MR145820 MR165064 MR165068 MR196436 MR276836
Rear Wheel Bearing - Rear Hub - Mitsubishi FTO NON ABS Models This can be used on ALL FTO's that DO NOT HAVE ABS
The Reason that this cannot be used is that FTO's with ABS have extra holes to enable an ABS ring to be bolted on which this does not have.
With the price of the ABS ones being astronomical there is nothing to stop you drilling your own holes and bolting on the ABS Ring BUT you will need someone who knows what they are doing ie An Engineering Company Torque Nut to 177nm when fitting INSTRUCTIONS HERE
Mitsubishi Part Number MR131217 MR316500
Rear Wheel Bearing - Rear Hub - Mitsubishi FTO up to 02/1997 This can be used on FTO's built after 02/1997 only if the vehicle is NOT equiped with ABS ie it can be used instead of MR316500 if the car doesn't have ABS
Mitsubishi have Discontinued this part and it's only available as a Koyo Item in a Different Box (While Stocks Last) Koyo are the actual Manufacturer of the Original Mitsubishi Part Torque Nut to 177nm when fitting
INSTRUCTIONS HERE Mitsubishi Part Number MR131217
DISCONTINUED
Inner CV Joint Kit - Mitsubishi FTO 2.0 V6 & 1.8 4 Cylinder Please provide Chassis Number unless already checked with us which is for your vehicle. ALL 1.8 FTO's use inner joint Part Number MR232222 on either side. 2.0 V6 FTO's can use any 2 different part numbers depending upon chassis number. Mitsubishi Part Number MR232222 MR232223 MR232224 Discontinued MR232225
Rear Wheel Bearing - Rear Hub - Mitsubishi FTO Built 02/1997 onwards This can be used on FTO's built before 02/1997 only if the vehicle is NOT equiped with ABS ie it can be used instead of MR131217 if the car doesn't have ABS Torque Nut to 177nm when fitting
INSTRUCTIONS HERE Mitsubishi Part Number MR316500
