Genuine Mitsubishi Crushable sump plug washer for Mitsubishi Colt/Mirage 1.6 Mivec CJ4A This is the best type of washer to seal the sump plug. Folded edge so it seals properly therefore it doesn't weep oil like cheap copper washers. It is only pence more expensive. Inner diameter = 14mm Outer diameter = 20mm Thickness = 2mm Mitsubishi Part Number MD050317
Magnetic Sump Plug - Mitsubishi M14 x 1.5
Fits all Mitsubishi Models that use OEM Part Number MD050316
Anodized Red Alloy Sump Plug with Sump Washer.
Gives advance warning of engine problems as it catches any steel flakes from engine wear on the megnetic end.
This is designed to be used with Normal Grease to form a layer between the Steel Sump and the Alloy Sump Plug. DO NOT FIT WITHOUT GREASE ON THE THREADS
This also fits various Suzuki Models that use a M14 x 1.5 Sump Plug.
MD050316, MD050317 09247-14044-000 S1 | 09247-14044 S1
Lower Injector Seal/Insulator - Mitsubishi Colt Mirage Cyborg 1.6 Mivec CJ4A Location fitted shown on Exploded Diagram HERE Mitsubishi Part Number MD087060
Oil Strainer Gasket to Block - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A
Exploded Diagram HERE
Mitsubishi Part Number MD183239
Good Quality Aftermarket Copy of Sump Plug and Washer Fits Mitsubishi Colt/Mirage 1.6 Mivec CJ4A Mitsubishi Part Number Copies of MD050316 MD050317
Oil Pump O Ring - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A
Location Used Shown HERE
Mitsubishi Part Number MD163246

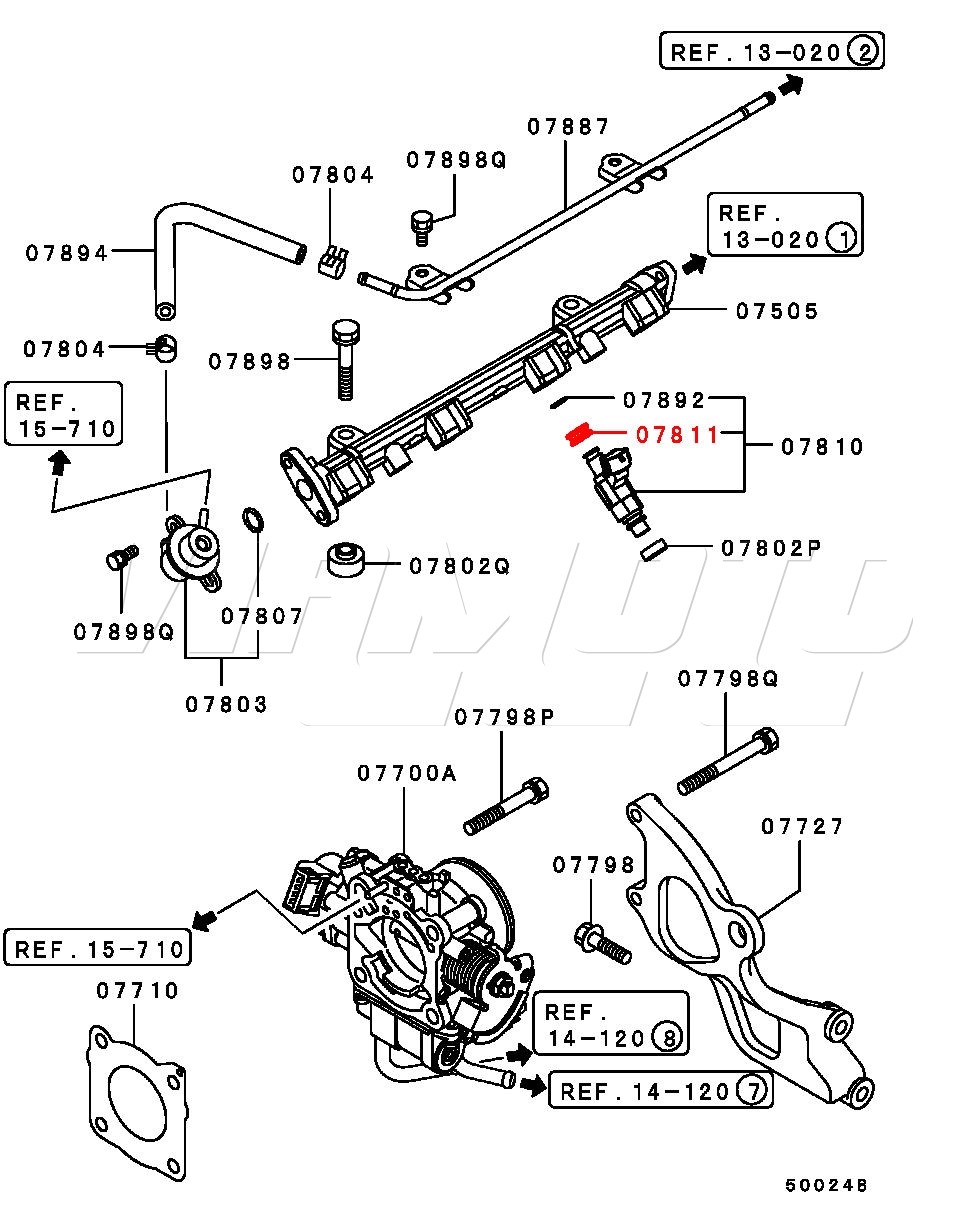

Upper Injector O-Ring - Mitsubishi Colt Mirage 1.6 Mivec Cyborg Exploded Diagram Showing Location Fitted HERE Mitsubishi Part Number 1465A188 was MD614813 also MD620787
Oil Filter - Colt/Mirage 1.6 Mivec CJ4A Mitsubishi Part Number MD135735 MD135737 MD325714 MD365876 MD360935 MD332687 MZ690070 TS200004 MZ690115 MZ690901
PCV Valve Rubber Seal - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A These go hard and start cracking allowing air past the PCV valve so replacement is recommended (every 50,000 miles usually). This should help your emissions Location Diagram HERE Mitsubishi Part Number MD179909 1057A033
Water Rail O-Ring - Mitsubishi Colt/Mirage/Cyborg 1.6 Mivec CJ4A
Exploded Diagram HERE Mitsubishi Part Number MD145371

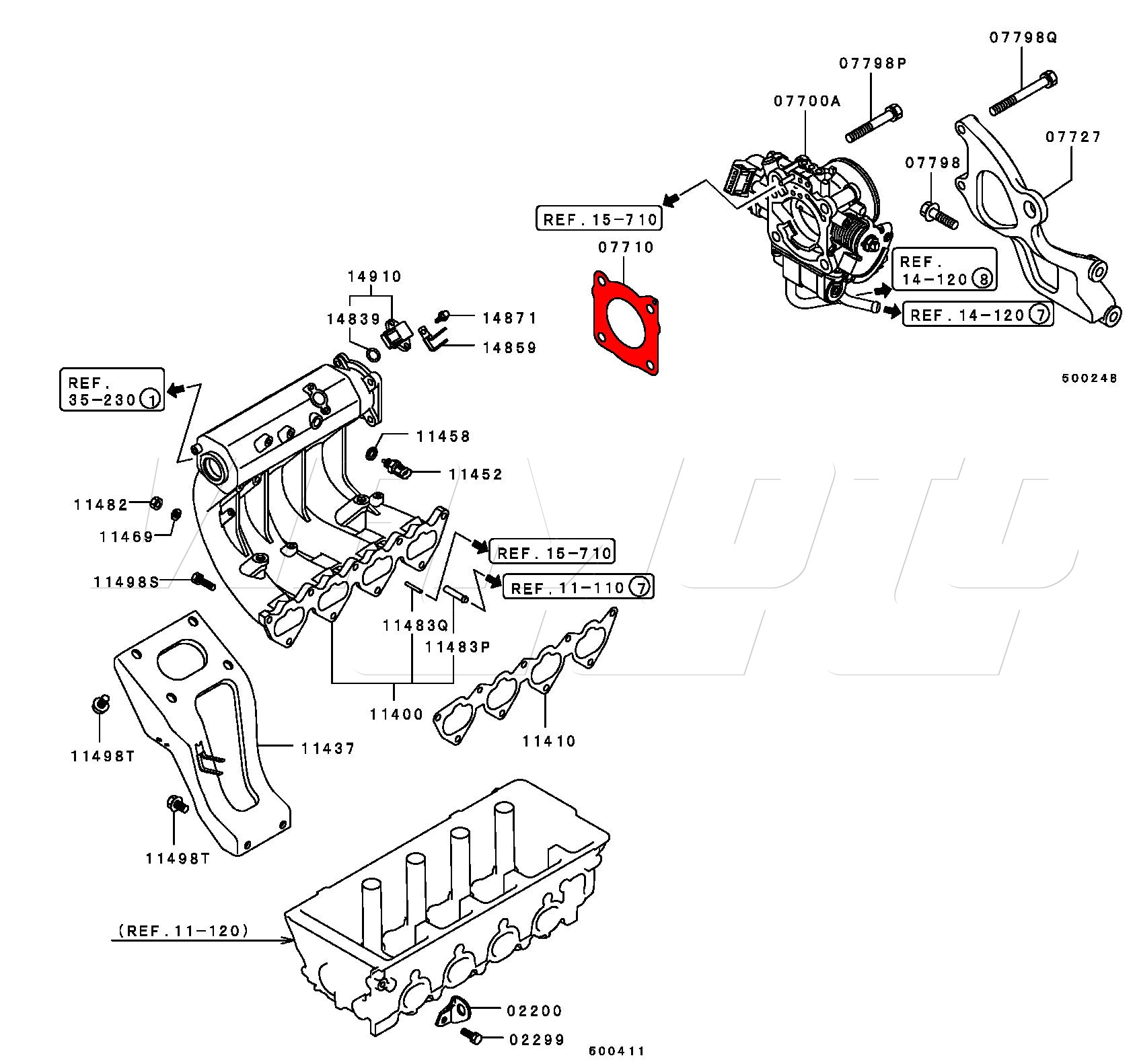

Throttle Body Gasket - Mitsubishi Colt Mirage 1.6 Mivec CJ4A Cyborg
Mitsubishi Part Number MD192535
Upper Injector Sheet Seal - Mitsubishi Colt Cyborg Mirage 1.6 Mivec CJ4A Exploded Diagram Showing Location HERE Mitsubishi Part Number MD614805 MD620788
Banjo Bolt to Fuel Filter - Mitsubishi Colt 1.6 Mivec CJ4A Cyborg/Mirage
Mitsubishi Part Number MS650013 was also MF650113
Oil Pressure Switch - Colt/Mirage 1.6 Mivec CJ4A Mitsubishi Part Number MD138993 MD138994 1258A002
Radiator Cap - Mitsubishi Colt Mirage 1.6 Mivec CJ4A Cyborg
Go on replace that rusty eyesore. Exploded diagram HERE Mitsubishi Part Number MB660667 MR481216
Wurth Ultra 2040 Multi-Purpose Lubricant - 500ml
Loosens seized and rusted parts With PTFE and 360° valve Silicone-free Removes moisture from electrical systems Strong water displacement effect
One of the Best Water displacing penetrants with PTFE for long term lubrication. Suitable for: All types of Vehicles, industrial machinery, boats, generators and in the home.
SAFETY DATA SHEET.
THIS PRODUCT CANNOT BE SENT OUT OF UK AS IT IS AN AEROSOL DO NOT ORDER IF YOU ARE LOCATED IN ANOTHER COUNTRY

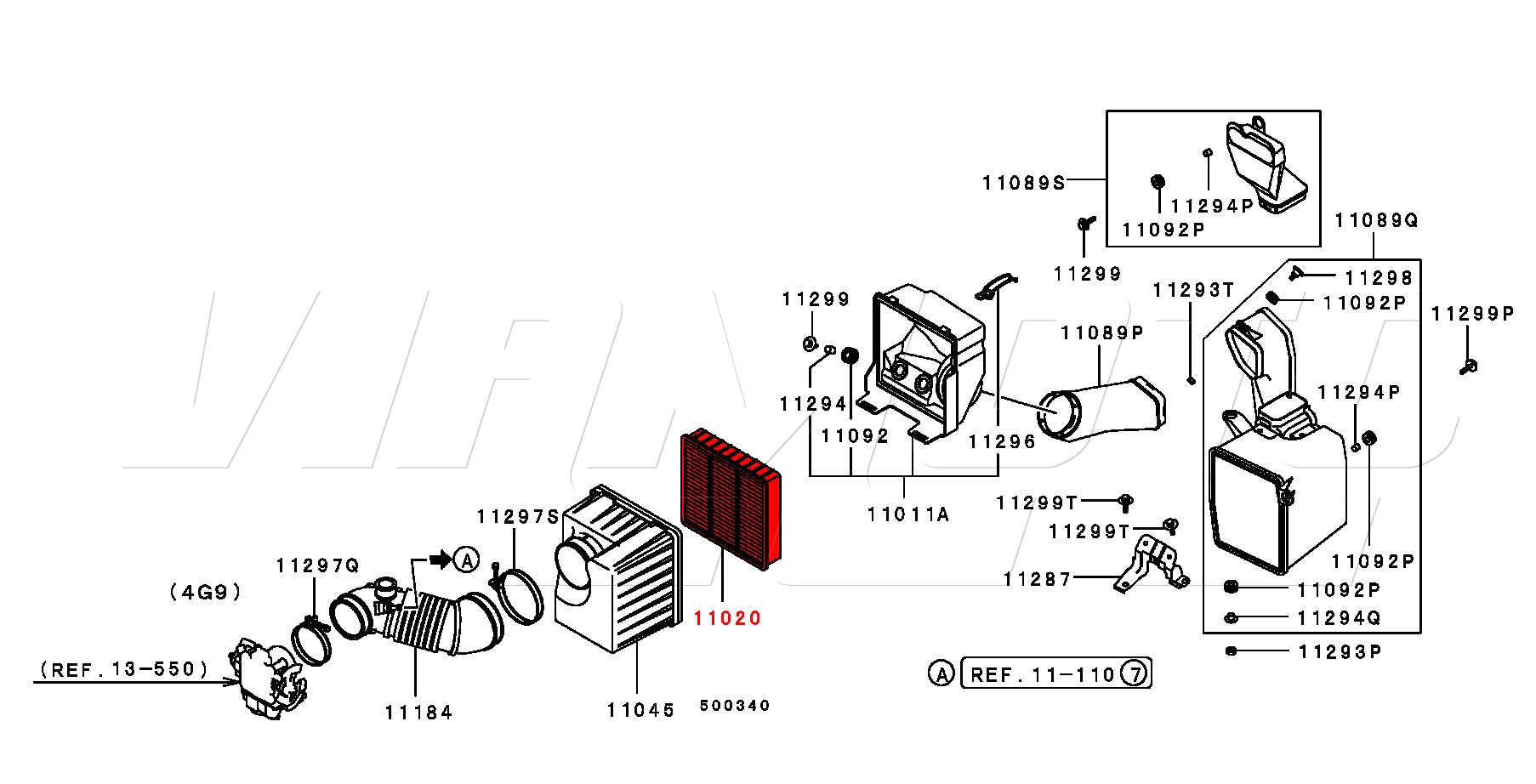

Standard Replacement Air Filter - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A Cyborg Exploded Diagram of Airbox and Intake HERE Mitsubishi Part Number MR188657 MR552951 MR481794 TS200025
Dash Temperature Sender - Mitsubishi Colt/Mirage/Cyborg 1.6 Mivec CJ4A This item provides the signal that gives temp on dash gauge. THIS IMAGE shows location of this item Mitsubishi Part Number MD091056
Sump Plug - Oil Pan Drain Plug - Colt/Mirage 1.6 Mivec CJ4A Genuine Mitsubishi Mitsubishi Part Number MD050316
Genuine Mitsubishi Oil Filter MD360935 - Colt/Mirage 1.6 Mivec CJ4A
Mitsubishi Part Number MD360935
Exhaust Manifold Gasket to cylinder head for Mitsubishi Colt/Mirage/Cyborg 1.6 Mivec CJ4A
Exploded Diagram HERE Mitsubishi Part Number MR161502 MR323599
Spark Plug Seal for Mitsubishi Colt/Mirage 1.6 Mivec CJ4A These are made of rubber and can perish and leak oil into spark plug tube. Price is for ONE - You need 4 per engine Exploded Diagram HERE Mitsubishi Part Number MD198128
Uses on your Mitsubishi Colt/Mirage 1.6 Mivec CJ4A include:- Lower Oil Sump Pan Sealant, Double Half Moon Seal, Rear Crank Oil Seal Frame to name a few.
Material Safety Data Sheet - MSDS HERE

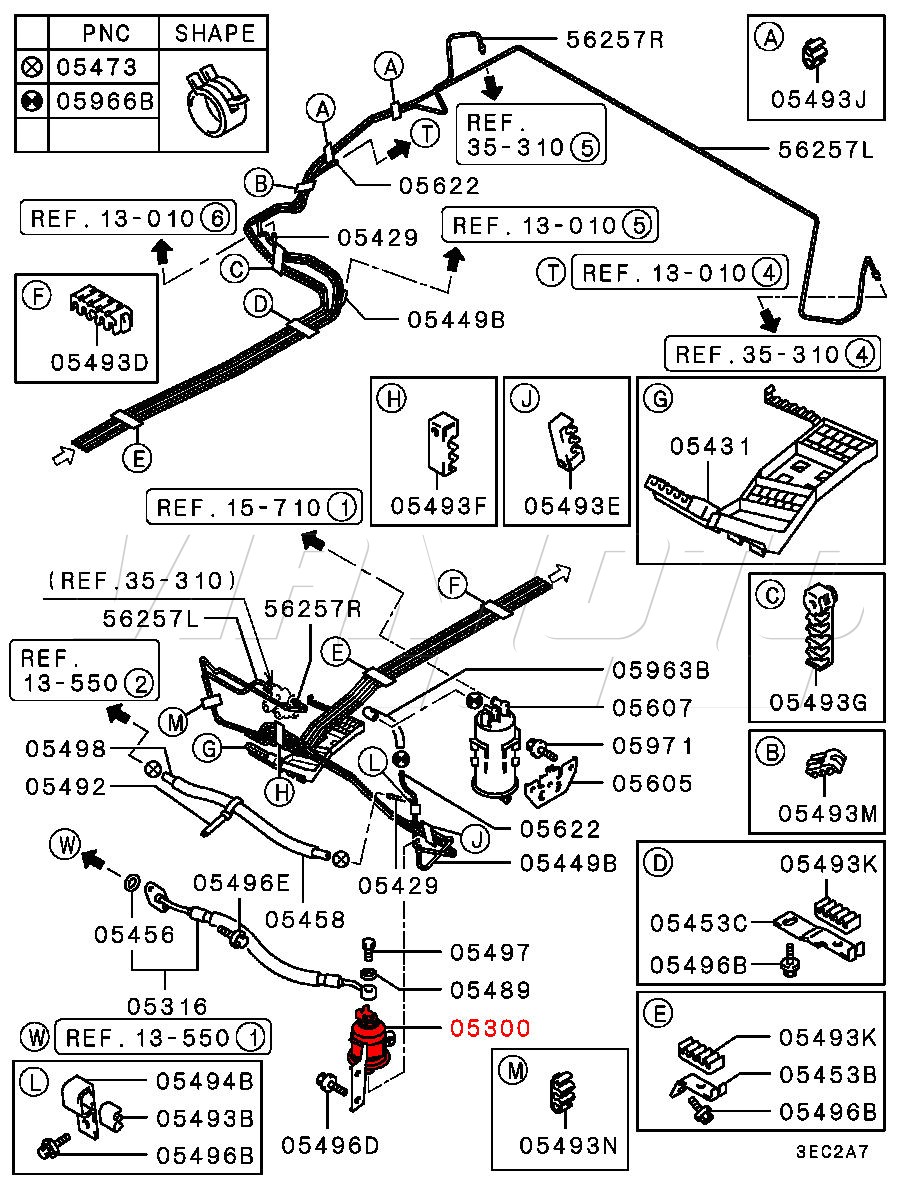

Fuel Filter - Petrol Filter - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A For Exploded Diagram Click HERE Mitsubishi Part Numbers MR204132
PCV Valve - Mitsubishi Colt/Mirage 1.6 Mivec CJ4A
A jammed, clogged or faulty one can cause numerous problems. It should be inspected, cleaned and/or replaced every year.
Location Fitted Shown HERE
Mitsubishi Part Number MD301843
Standard Replacement Alternator Belt. - Mitsubishi Colt Cyborg Mirage CJ4A 1.6 Mivec For Belt Layout Diagram Click HERE Mitsubishi Part Number MD312400

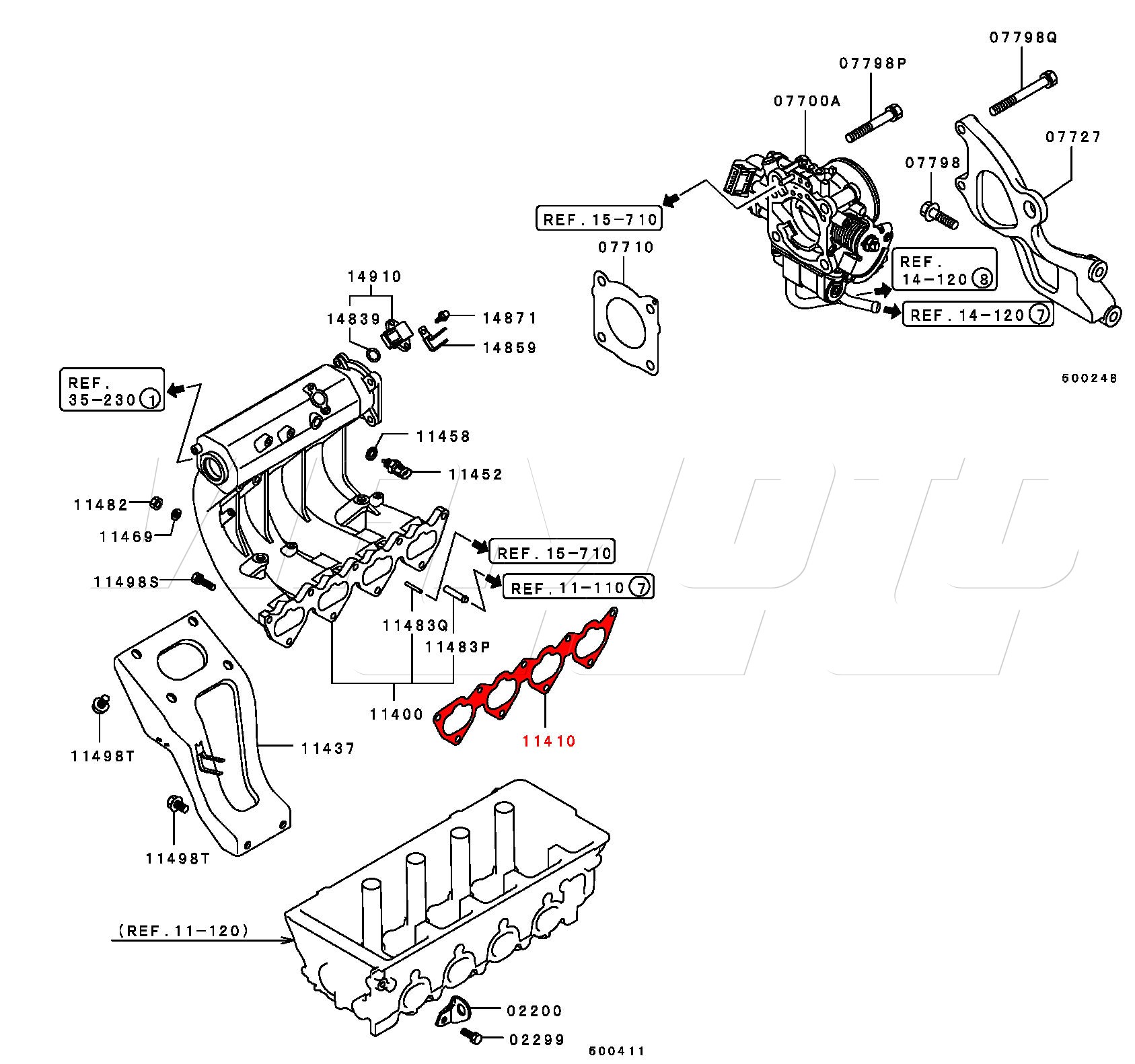

Inlet Manifold Gasket - Mitsubishi Colt Cyborg Mirage 1.6 Mivec CJ4A
Steel Single Layer Exploded Diagram HERE
Mitsubishi Part Number MD315478

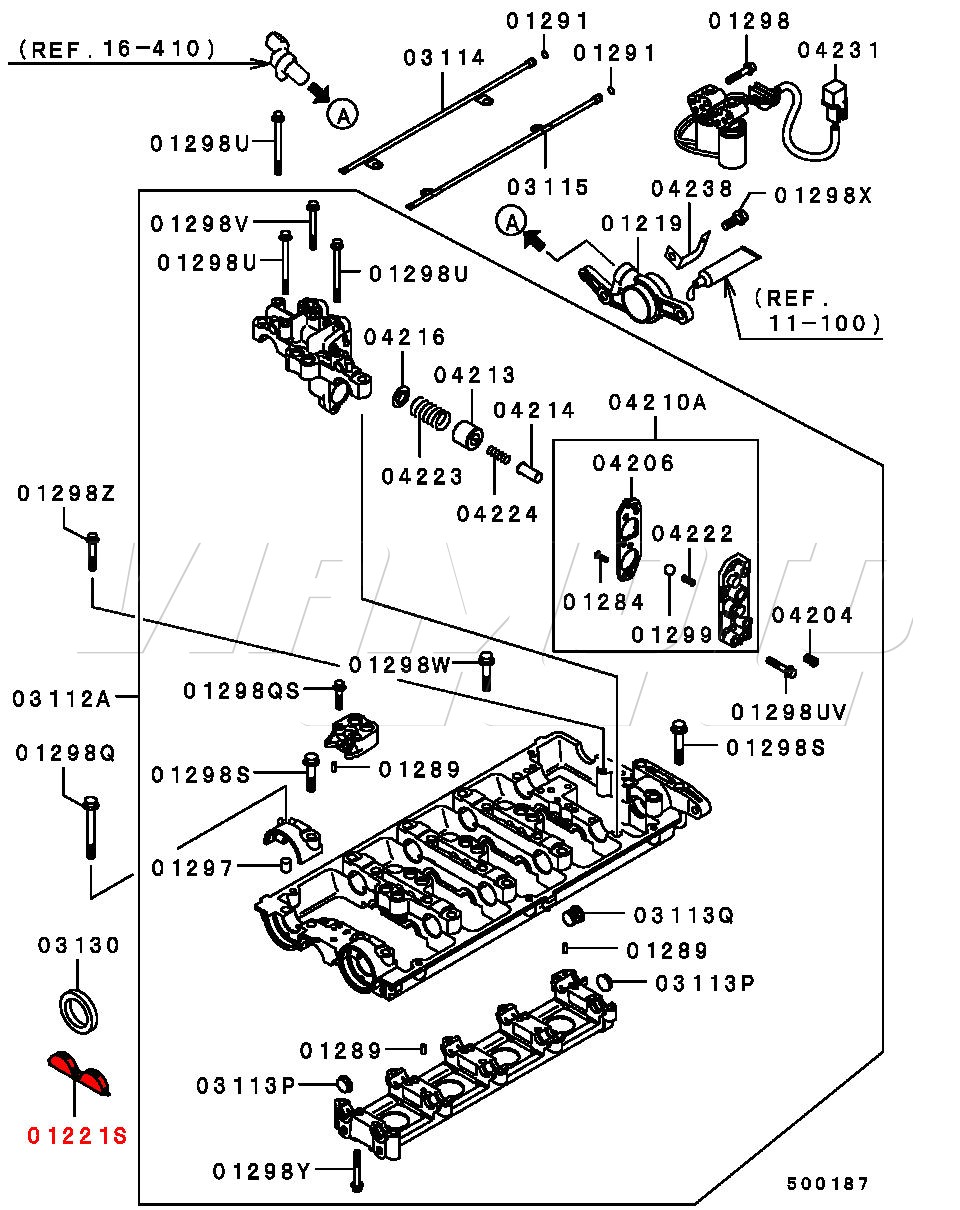

Double Half Moon Seal - Colt/Mirage 1.6 Mivec CJ4A
You need ONE of these.
Engine Exploded Diagram HERE Mitsubishi Part Number MD193910
Engine coolant temperature sender, also called ECU Temp Sensor. Mitsubishi Colt/Mirage/Cyborg CJ4A 1.6 Mivec This item can cause emissions problems if faulty. Check your old one using this guide HERE. THIS IMAGE shows location of this item Mitsubishi Part Numbers 1308A012 MD177572 MD182467
Standard Replacement Power Steering Belt (NO Aircon) - Colt Cyborg Mirage 1.6 Mivec CJ4A For Belt Layout Diagram Click HERE Mitsubishi Part Number MD319917
