Banjo Bolt - Water Pipe to Turbo - 3000GT/GTO Twin Turbo
This part number is used in 3 locations Shown HERE The 4th Banjo Bolt is longer in length and Part Number MD158989
Mitsubishi Part Number MS650013 was also MF650113
Oil Pressure Switch - Mitsubishi 3000GT/GTO This is the switch that puts the Red Warning Light on the Dash NOT the one for Oil Pressure Gauge Mitsubishi Part Number MD138993 MD138994 1258A003
Gasket for Fuel Pump/Sender Unit - Mitsubishi GTO/3000GT
ONLY ONE Required per vehicle
Mitsubishi Part Number MB400461
Gasket to Water Outlet/Thermostat Housing to Head - GTO/3000GT
This gasket is used in 4 locations on the engine (Price is for ONE Gasket) Locations are shown on this Image HERE
Mitsubishi Part Number MD195654 now MD319539
Camshaft Core Plug - Mitsubishi GTO/3000GT 4 Required Per Engine - One for each camshaft Price is for ONE Core Plug
Exploded Diagram HERE
Mitsubishi Part Number MD150785
Genuine Mitsubishi Oil Filter MD352626 - GTO/3000GT Simply the best Oil Filter for your vehicle.
Mitsubishi Part Number MZ690150 MD352626 was MD136790
Radiator Cap - Mitsubishi GTO/3000GT
Top quality replacement radiator cap. Called a radiator cap but on an GTO/3000GT it's located in the middle of the engine. Mitsubishi Part Numbers MB660735 MB222066 MB356417 MB660171 MB660701 MB845036 MB890520 MB957124
Wurth Ultra 2040 Multi-Purpose Lubricant - 500ml
Loosens seized and rusted parts With PTFE and 360° valve Silicone-free Removes moisture from electrical systems Strong water displacement effect
One of the Best Water displacing penetrants with PTFE for long term lubrication. Suitable for: All types of Vehicles, industrial machinery, boats, generators and in the home.
SAFETY DATA SHEET.
THIS PRODUCT CANNOT BE SENT OUT OF UK AS IT IS AN AEROSOL DO NOT ORDER IF YOU ARE LOCATED IN ANOTHER COUNTRY

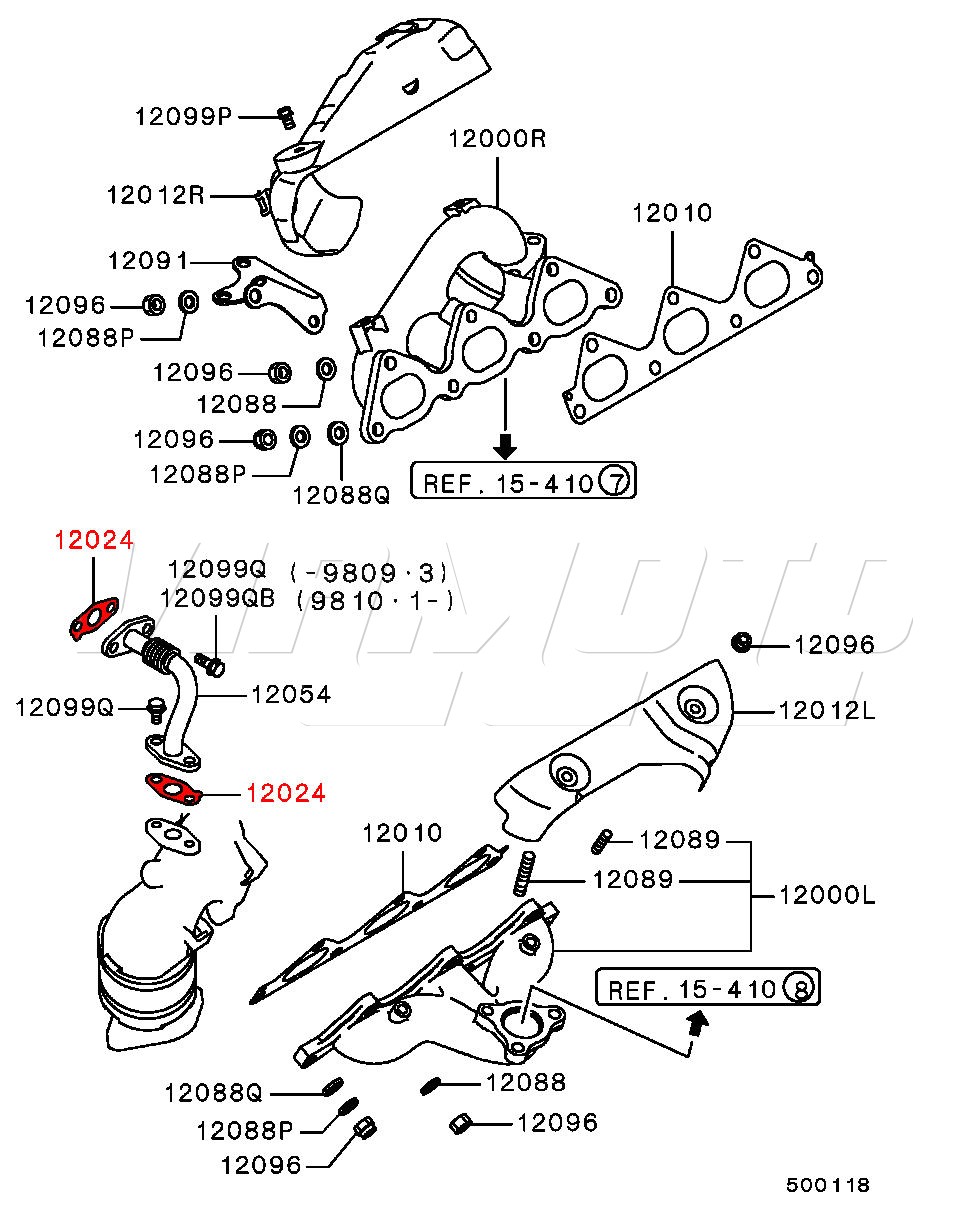

Gasket to EGR Pipe - Mitsubishi 3000GT
Two of these used on EGR Pipe One each End PRICE IS FOR ONE GASKET
Exploded Diagram Showing Location Used HERE
Mitsubishi Part Number MD149764
Dash Temperature Sender - Mitsubishi GTO/3000GT
Dash Temperature Sender. This item provides the signal that gives temp on dash gauge. THIS IMAGE shows location of this item Mitsubishi Part Number MD091056
Sump Plug - Oil Pan Drain Plug - Mitsubishi GTO/3000GT Z15A/Z16A Genuine Mitsubishi Mitsubishi Part Number MD050316
Sealing Ring - Turbo Exhaust Gas Inlet - 3000GT/GTO Twin Turbo Models Z16A/Z15A One is used on each Turbo Location Used Shown HERE Mitsubishi Part Number MD077551
Gasket Oil Pump Housing to Block - Mitsubishi 3000GT/GTO Z15A Z16A
Mitsubishi Part Number MD189778 was MD150135
Air Filter - Mitsubishi GTO/3000GT - ALL Models
Standard Replacement Air Filter
This filter fits all the standard airboxes that was fitted to any GTO or 3000GT regardless of country.
Mitsubishi Part Numbers MR571471 MD620472 MD620456 XD620456 MZ690194 MZ311783
Turbo Inlet Gasket - Mitsubishi GTO/3000GT Twin Turbo Models Z15A and Z16A Price is for ONE Gasket - 2 Needed as ONE Per Turbo
Locations Used Shown HERE
Mitsubishi Part Number MD168266
Camshaft Oil Seal - Mitsubishi GTO/3000GT 4 Required Per Engine - One for each camshaft Price is for ONE Seal
Mitsubishi Part Number MD152603
Gasket Turbo to Turbo Elbow - GTO/3000GT Twin Turbo 2 required - ONE Per Turbo - Price is for ONE Gasket
Exploded Diagram Showing Locations Used HERE
Mitsubishi Part Numbers MD168267 MR188537
Throttle Body Idle Adjusting Screw Kit - Mitsubishi GTO/3000GT The one that adjusts the engine idling. Kit Consists :- Adjusting Screw O'Ring Throttle Body Exploded Diagram HERE Mitsubishi Part Numbers MD614948 Screw MD608806 O ring
Banjo Bolt to Oil Cooler Pipes - GTO TT/3000GT TT
You need 4 in total for the 2 oil cooler pipes (2 for each pipe)
Mitsubishi Part Number MB033025
Crank Sensor Blade - Mitsubishi GTO/3000GT 10/1992 onwards
Exploded Diagram Showing Location Fitted HERE
Mitsubishi Part Number MD185237
Power Steering Belt - Mitsubishi GTO up to 03/1991
Only fits early GTO/3000GT models built up to 03/1991 The is an 13mm Wide A shaped belt and is NOT a 4 rib belt like the later cars.
Choose Gates Standard or Heavy Duty Belt
Mitsubishi Part Numbers MB553848 MB636351
Uses on your Mitsubishi 3000GT/GTO Lower Oil Sump Pan Sealant, Rear Crank Oil Seal Frame to name a couple.
Material Safety Data Sheet - MSDS HERE
Rubber Gasket - Fast Idle Valve to Throttlebody Mitsubishi GTO/3000GT Z16A Z15A
Location Fitted Shown Here
Mitsubishi Part Number MD614406
Power Steering Belt - Mitsubishi GTO 03/1991 onwards
Only fits later GTO/3000GT models built from 03/1991 onwards This is a 4 Rib Gates Brand Belt
Mitsubishi Part Numbers MD179679 MD172376

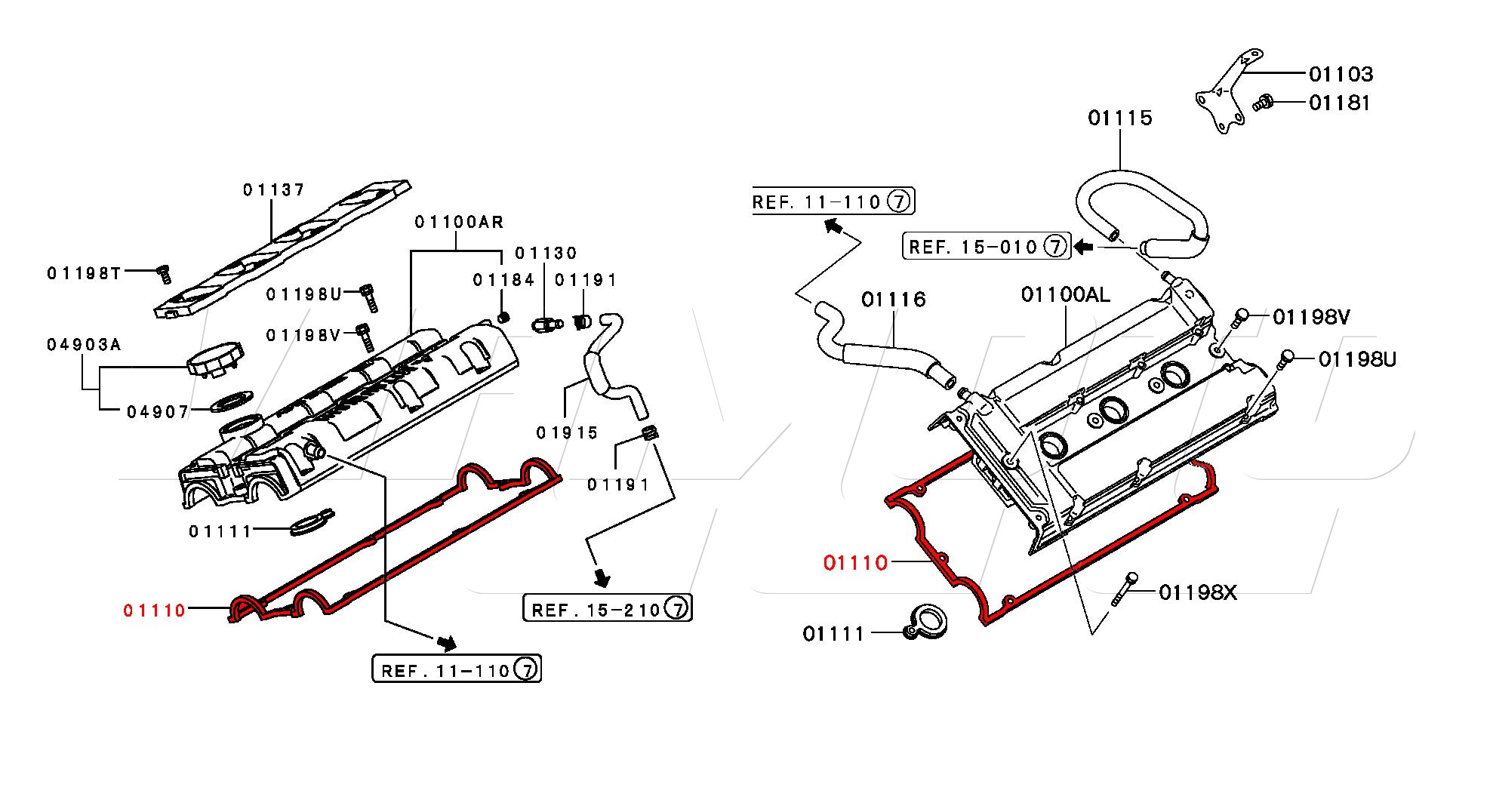

Rocker Cover Gasket - Mitsubishi GTO/3000GT Z15A/Z16A TWO Required per engine - Price is for ONE Quality Aftermarket Gasket from USA. (Less than Half the price of the OEM One)
Exploded Diagram Shown HERE
Mitsubishi Part Number MD186786 MD137051

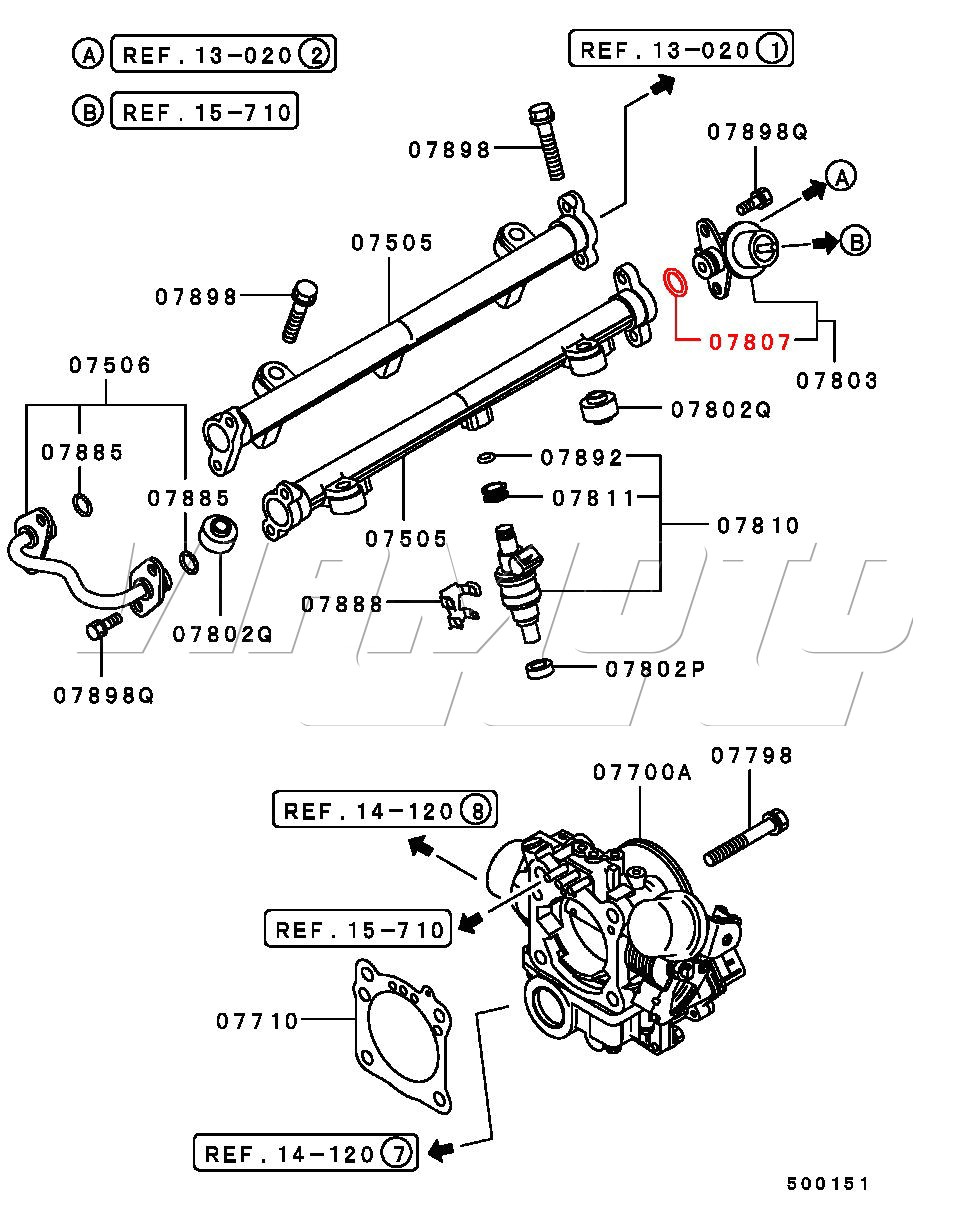

O'Ring Fuel Pressure Regulator to Fuel Rail - Mitsubishi GTO/3000GT
Location fitted shown HERE
Mitsubishi Part Number MD620494

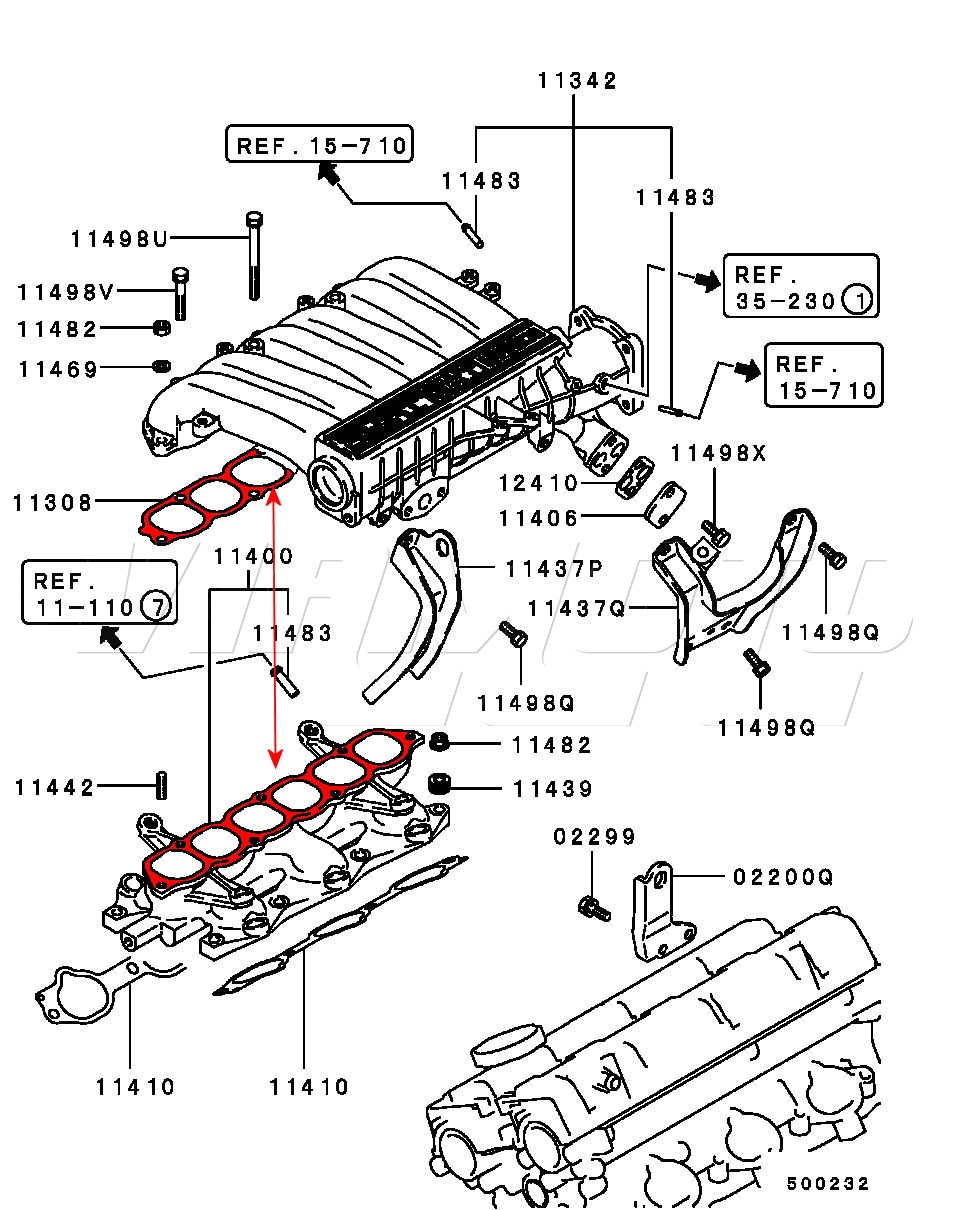

Inlet Manifold Gasket - Mitsubishi GTO/3000GT
Aftermarket Copy as Mitsubishi No Longer Manufacture Location Fitted Shown HERE
Mitsubishi Part Number MD143791
PCV Valve - Mitsubishi GTO/3000GT Z11A, Z15A, Z16A
Exploded Diagram Showing HERE
Some of the older part numbers had a metal pipe on the threaded end, this part number replaces those as well. No need to swap the pipe over. Mitsubishi Part Number MD152772 (Was also MD024719, MD041519, MD153242)
Note - Genuine Part is While Stocks Last
Engine Coolant Temperature Sender - Mitsubishi GTO/3000GT 10/1992 onwards also called ECU Temp Sensor. This item can cause emissions problems if faulty. Check your old one using this guide HERE. THIS IMAGE shows location of this item Mitsubishi Part Numbers MD177572 MD182467 1308A012
Fuel Filter - Mitsubishi GTO/3000GT
Quality aftermarket filter with new copper washers Fits to the Bulkhead in Original Bracket
Mitsubishi Part Number MB658136 Filter MF660064 x 4 Washers Also Xref to OEM No's MB504758 MB504738 MB507758 MB504752 MB504749 MB504732 MB504740 MB554681 MB504733 MB504735 MB504739 MB504747
