Home » Mitsubishi Legnum/Galant VR4 EC5A EC5W Parts » Mitsubishi Legnum/Galant VR4 - Engine Parts

 Checkout
Idle Speed Controller - Stepper Motor - Mitsubishi VR4 Galant/Legnum Discounts Apply !
Free Shipping to UK Mainland Excl Highlands & Islands (Orders over 100.00)
Idle Speed Controller - Stepper Motor - Mitsubishi VR4 Galant/Legnum
1 of 3
Idle Speed Controller - Stepper Motor - Mitsubishi VR4 Galant/Legnum EC5A EC5W
Idle Air Control Valve

If your engine idling is going up and down like a fiddlers elbow
then this could well be the reason.

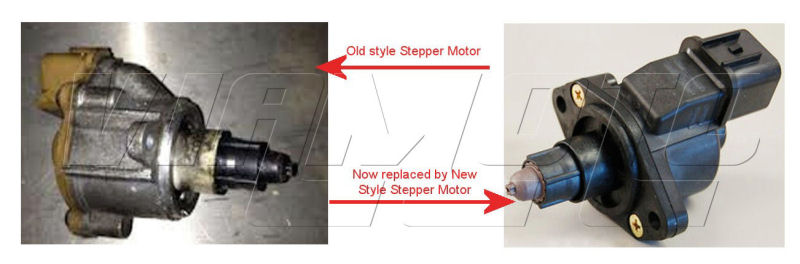

Click HERE for difference between old style Stepper & New Style Stepper

For an Exploded Diagram of inlet manifold and Throttle body
Click HERE

Video HERE on an FTO but same place etc

Fitting Instructions if it doesn't work out of the box.
1. Remove Large inlet pipe - the stepper motor is bolted in below it
2. Remove old stepper by undoing the electrical connector and removing the 2 bolts from throttlebody fast idle valve.
3. Clean area where stepper plunger goes into throttle body.
4. Fit new stepper by bolting back on, reconnect electrical connector & refit large inlet pipe.
5. Start car and wind idle screw in until it idles properly at about 2000rpm cold.
6. Wait until normal temp is reached at 2000rpm now adjust idle back down to 850~900 rpm.
The above shouldn't take more than half an hour.

Mitsubishi Part Numbers
MD614568
MD628054
MD614978
MD628056

Price: £60.55
